Datasheet ADG1204 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Low Capacitance, Low Charge Injection, ±15 V/+12 V, 4:1 iCMOS Multiplexer |
| Páginas / Página | 16 / 4 — ADG1204. Data Sheet. Y Version1. −40°C to. Parameter. 25°C. +85°C. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 462 Kb |
| Idioma del documento | Inglés |
ADG1204. Data Sheet. Y Version1. −40°C to. Parameter. 25°C. +85°C. +125°C. Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento

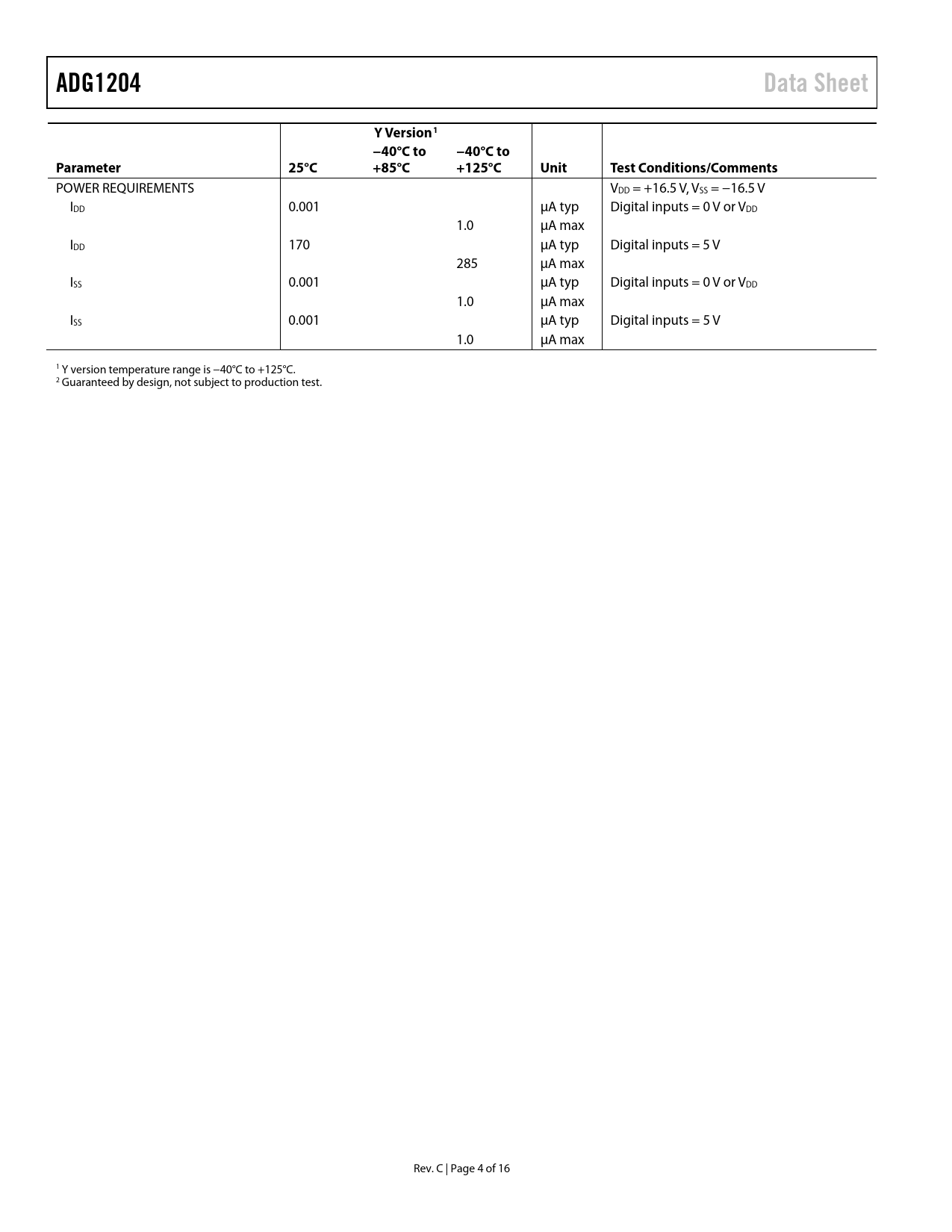

ADG1204 Data Sheet Y Version1 −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max IDD 170 µA typ Digital inputs = 5 V 285 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max ISS 0.001 µA typ Digital inputs = 5 V 1.0 µA max 1 Y version temperature range is −40°C to +125°C. 2 Guaranteed by design, not subject to production test. Rev. C | Page 4 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
