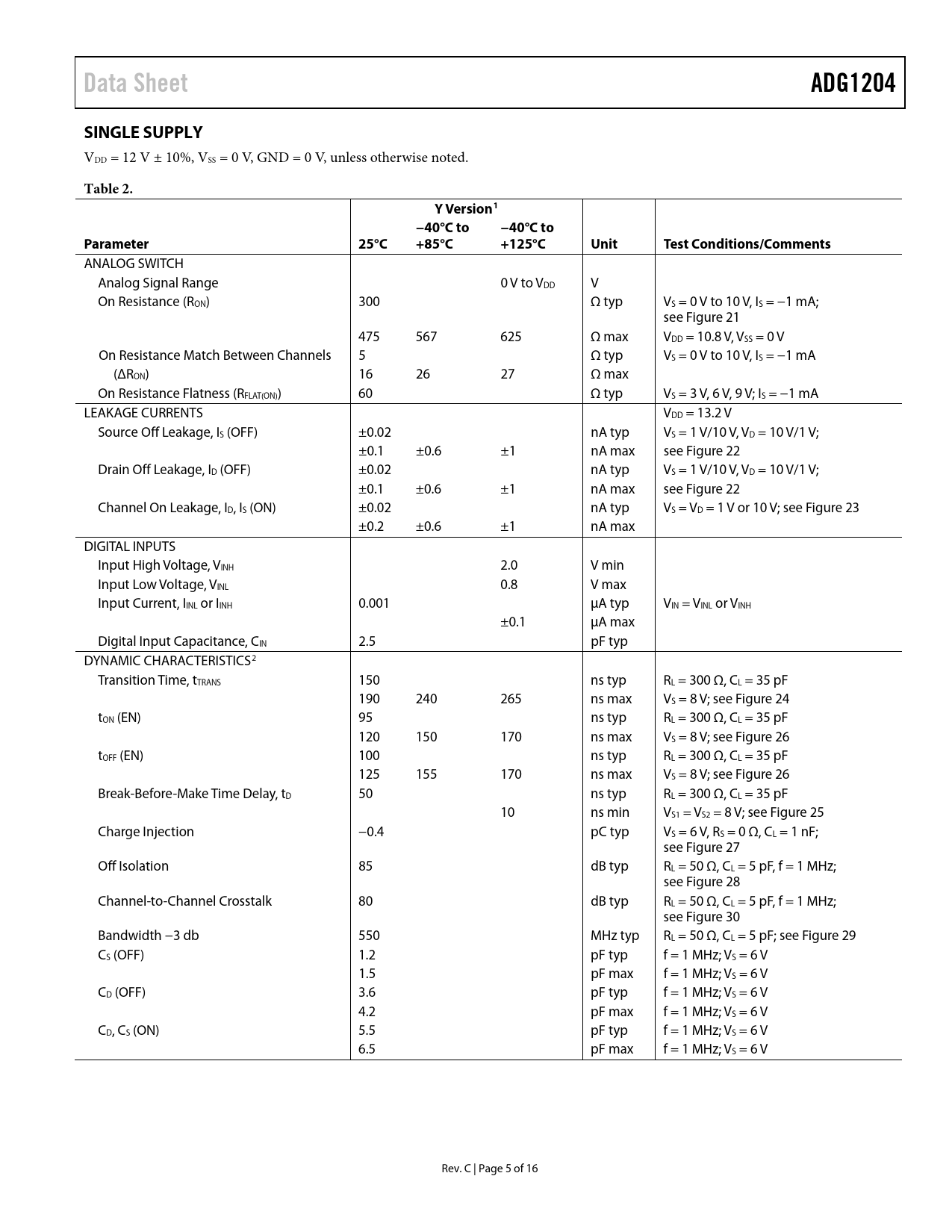

Data Sheet ADG1204 SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Y Version1 −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 300 Ω typ VS = 0 V to 10 V, IS = −1 mA; see Figure 21 475 567 625 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Match Between Channels 5 Ω typ VS = 0 V to 10 V, IS = −1 mA (ΔRON) 16 26 27 Ω max On Resistance Flatness (RFLAT(ON)) 60 Ω typ VS = 3 V, 6 V, 9 V; IS = −1 mA LEAKAGE CURRENTS VDD = 13.2 V Source Off Leakage, IS (OFF) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; ±0.1 ±0.6 ±1 nA max see Figure 22 Drain Off Leakage, ID (OFF) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; ±0.1 ±0.6 ±1 nA max see Figure 22 Channel On Leakage, ID, IS (ON) ±0.02 nA typ VS = VD = 1 V or 10 V; see Figure 23 ±0.2 ±0.6 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VINL or VINH ±0.1 µA max Digital Input Capacitance, CIN 2.5 pF typ DYNAMIC CHARACTERISTICS2 Transition Time, tTRANS 150 ns typ RL = 300 Ω, CL = 35 pF 190 240 265 ns max VS = 8 V; see Figure 24 tON (EN) 95 ns typ RL = 300 Ω, CL = 35 pF 120 150 170 ns max VS = 8 V; see Figure 26 tOFF (EN) 100 ns typ RL = 300 Ω, CL = 35 pF 125 155 170 ns max VS = 8 V; see Figure 26 Break-Before-Make Time Delay, tD 50 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 8 V; see Figure 25 Charge Injection −0.4 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 27 Off Isolation 85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 Channel-to-Channel Crosstalk 80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 30 Bandwidth −3 db 550 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 CS (OFF) 1.2 pF typ f = 1 MHz; VS = 6 V 1.5 pF max f = 1 MHz; VS = 6 V CD (OFF) 3.6 pF typ f = 1 MHz; VS = 6 V 4.2 pF max f = 1 MHz; VS = 6 V CD, CS (ON) 5.5 pF typ f = 1 MHz; VS = 6 V 6.5 pF max f = 1 MHz; VS = 6 V Rev. C | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
