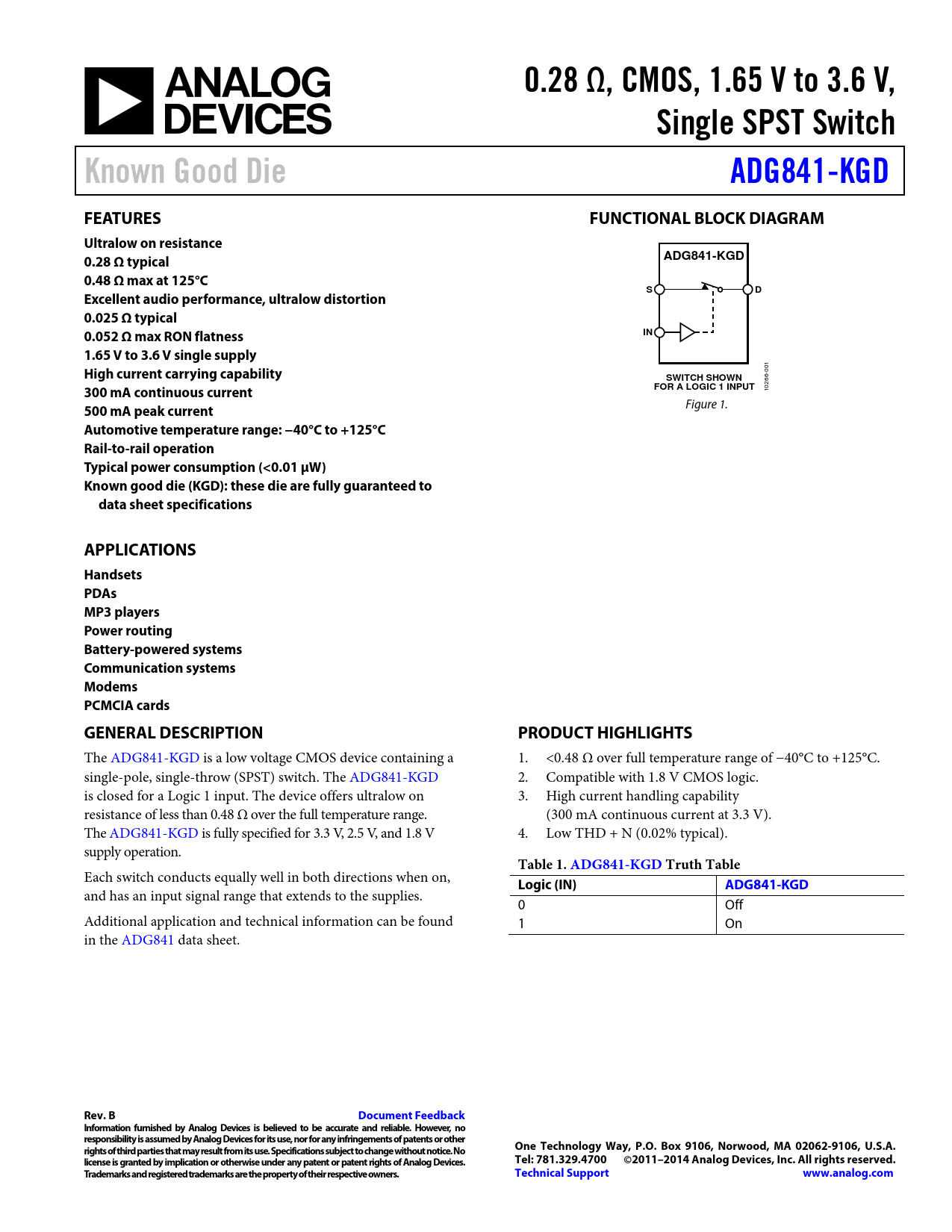

0.28 Ω, CMOS, 1.65 V to 3.6 V,. Single SPST Switch. Known Good Die. ADG841-KGD. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADG841-KGD Analog Devices, Revisión: B

Línea de modelo para esta hoja de datos

Versión de texto del documento

0.28 Ω, CMOS, 1.65 V to 3.6 V, Single SPST Switch Known Good Die ADG841-KGD FEATURES FUNCTIONAL BLOCK DIAGRAM Ultralow on resistance ADG841-KGD 0.28 Ω typical 0.48 Ω max at 125°C S D Excellent audio performance, ultralow distortion 0.025 Ω typical 0.052 Ω max RON flatness IN 1.65 V to 3.6 V single supply
1
High current carrying capability
00
SWITCH SHOWN
66-
300 mA continuous current FOR A LOGIC 1 INPUT
102 Figure 1.
500 mA peak current Automotive temperature range: −40°C to +125°C Rail-to-rail operation Typical power consumption (<0.01 μW) Known good die (KGD): these die are fully guaranteed to data sheet specifications APPLICATIONS Handsets PDAs MP3 players Power routing Battery-powered systems Communication systems Modems PCMCIA cards GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG841-KGD is a low voltage CMOS device containing a 1. <0.48 Ω over full temperature range of −40°C to +125°C. single-pole, single-throw (SPST) switch. The ADG841-KGD 2. Compatible with 1.8 V CMOS logic. is closed for a Logic 1 input. The device offers ultralow on 3. High current handling capability resistance of less than 0.48 Ω over the full temperature range. (300 mA continuous current at 3.3 V). The ADG841-KGD is fully specified for 3.3 V, 2.5 V, and 1.8 V 4. Low THD + N (0.02% typical). supply operation.
Table 1. ADG841-KGD Truth Table
Each switch conducts equally well in both directions when on,
Logic (IN) ADG841-KGD
and has an input signal range that extends to the supplies. 0 Off Additional application and technical information can be found 1 On in the ADG841 data sheet.
