Datasheet ADG841-KGD (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | 0.28 Ω, CMOS, 1.65 V to 3.6 V, Single SPST Switch |
| Páginas / Página | 9 / 3 — Known Good Die. ADG841-KGD. SPECIFICATIONS—2.7 V TO 3.6 V. Table 2. −40°C … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 285 Kb |
| Idioma del documento | Inglés |
Known Good Die. ADG841-KGD. SPECIFICATIONS—2.7 V TO 3.6 V. Table 2. −40°C to. Parameter. +25°C. +85°C. +125°C. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8

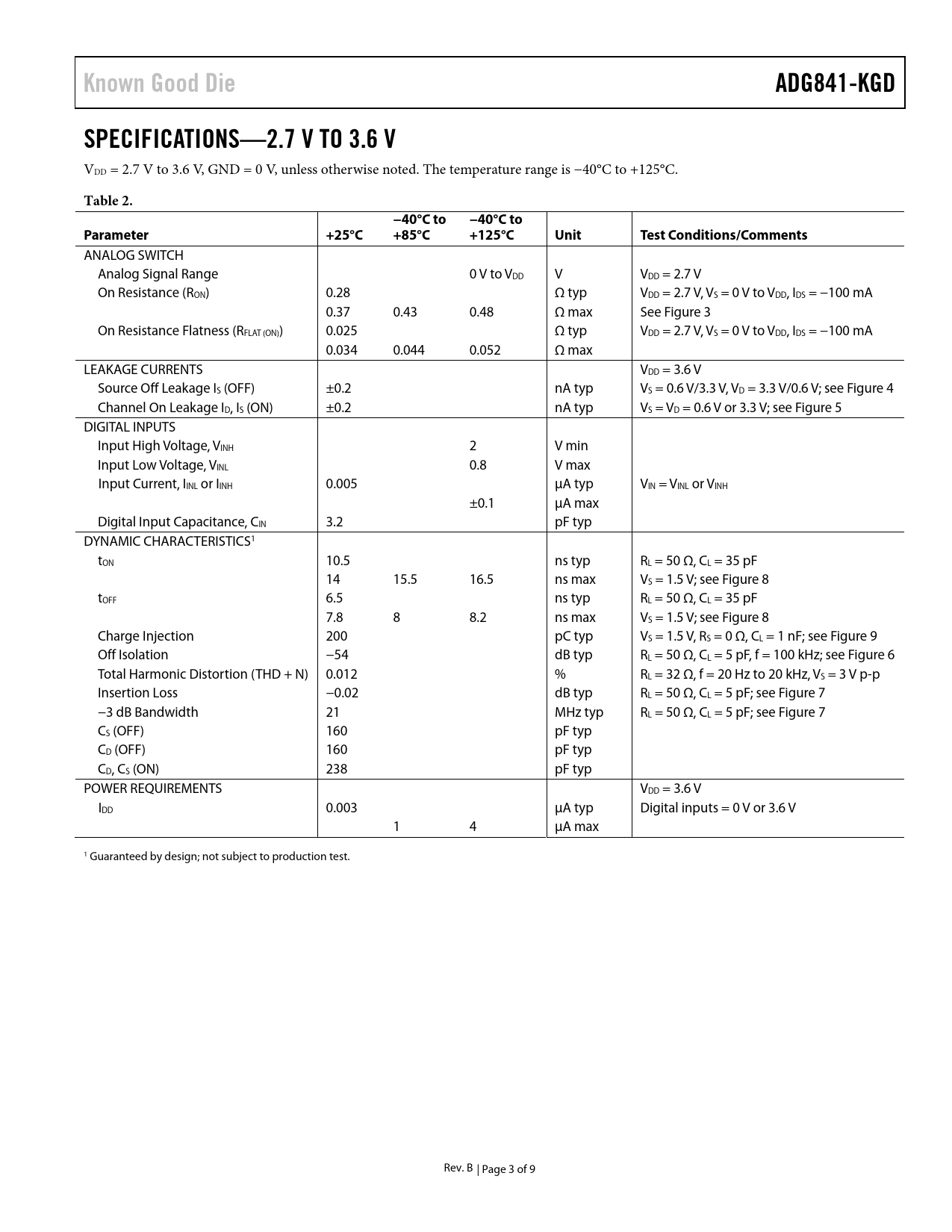

Known Good Die ADG841-KGD SPECIFICATIONS—2.7 V TO 3.6 V
VDD = 2.7 V to 3.6 V, GND = 0 V, unless otherwise noted. The temperature range is −40°C to +125°C.
Table 2. −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V VDD = 2.7 V On Resistance (RON) 0.28 Ω typ VDD = 2.7 V, VS = 0 V to VDD, IDS = −100 mA 0.37 0.43 0.48 Ω max See Figure 3 On Resistance Flatness (RFLAT (ON)) 0.025 Ω typ VDD = 2.7 V, VS = 0 V to VDD, IDS = −100 mA 0.034 0.044 0.052 Ω max LEAKAGE CURRENTS VDD = 3.6 V Source Off Leakage IS (OFF) ±0.2 nA typ VS = 0.6 V/3.3 V, VD = 3.3 V/0.6 V; see Figure 4 Channel On Leakage ID, IS (ON) ±0.2 nA typ VS = VD = 0.6 V or 3.3 V; see Figure 5 DIGITAL INPUTS Input High Voltage, VINH 2 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 µA typ VIN = VINL or VINH ±0.1 µA max Digital Input Capacitance, CIN 3.2 pF typ DYNAMIC CHARACTERISTICS1 tON 10.5 ns typ RL = 50 Ω, CL = 35 pF 14 15.5 16.5 ns max VS = 1.5 V; see Figure 8 tOFF 6.5 ns typ RL = 50 Ω, CL = 35 pF 7.8 8 8.2 ns max VS = 1.5 V; see Figure 8 Charge Injection 200 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF; see Figure 9 Off Isolation −54 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 6 Total Harmonic Distortion (THD + N) 0.012 % RL = 32 Ω, f = 20 Hz to 20 kHz, VS = 3 V p-p Insertion Loss −0.02 dB typ RL = 50 Ω, CL = 5 pF; see Figure 7 −3 dB Bandwidth 21 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 7 CS (OFF) 160 pF typ CD (OFF) 160 pF typ CD, CS (ON) 238 pF typ POWER REQUIREMENTS VDD = 3.6 V IDD 0.003 µA typ Digital inputs = 0 V or 3.6 V 1 4 µA max 1 Guaranteed by design; not subject to production test. Rev. B | Page 3 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS—2.7 V TO 3.6 V SPECIFICATIONS—2.5 V ± 0.2 V SPECIFICATIONS—1.65 V TO 1.95 ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
