Datasheet ADG841-KGD (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | 0.28 Ω, CMOS, 1.65 V to 3.6 V, Single SPST Switch |
| Páginas / Página | 9 / 7 — Known Good Die. ADG841-KGD. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 285 Kb |
| Idioma del documento | Inglés |

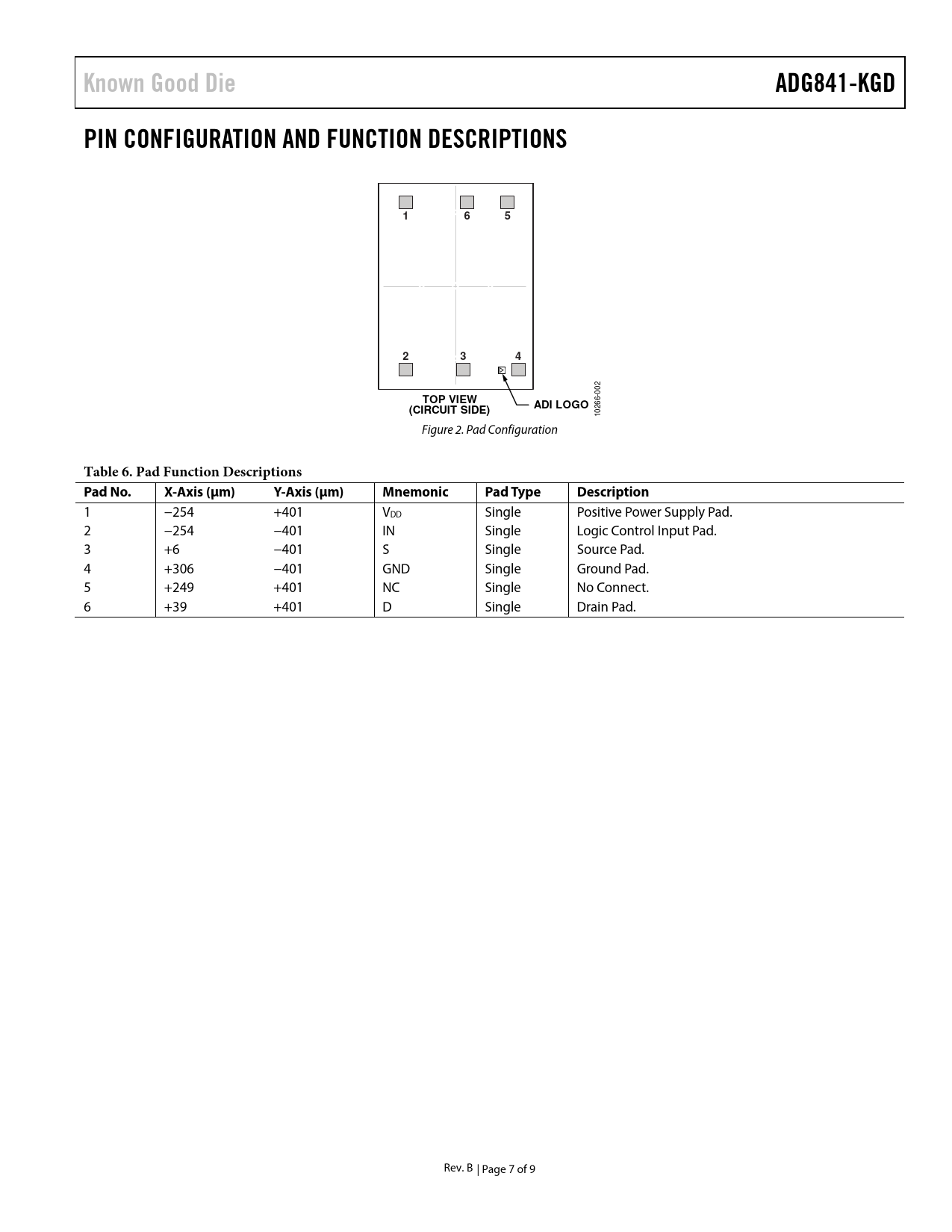

Known Good Die. ADG841-KGD. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP VIEW. ADI LOGO. (CIRCUIT SIDE)
Línea de modelo para esta hoja de datos
Versión de texto del documento
Known Good Die ADG841-KGD PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 6 5 2 3 4
02 -0
TOP VIEW ADI LOGO
0266
(CIRCUIT SIDE)
1 Figure 2. Pad Configuration
Table 6. Pad Function Descriptions Pad No. X-Axis (μm) Y-Axis (μm) Mnemonic Pad Type Description
1 −254 +401 VDD Single Positive Power Supply Pad. 2 −254 −401 IN Single Logic Control Input Pad. 3 +6 −401 S Single Source Pad. 4 +306 −401 GND Single Ground Pad. 5 +249 +401 NC Single No Connect. 6 +39 +401 D Single Drain Pad. Rev. B | Page 7 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS—2.7 V TO 3.6 V SPECIFICATIONS—2.5 V ± 0.2 V SPECIFICATIONS—1.65 V TO 1.95 ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
