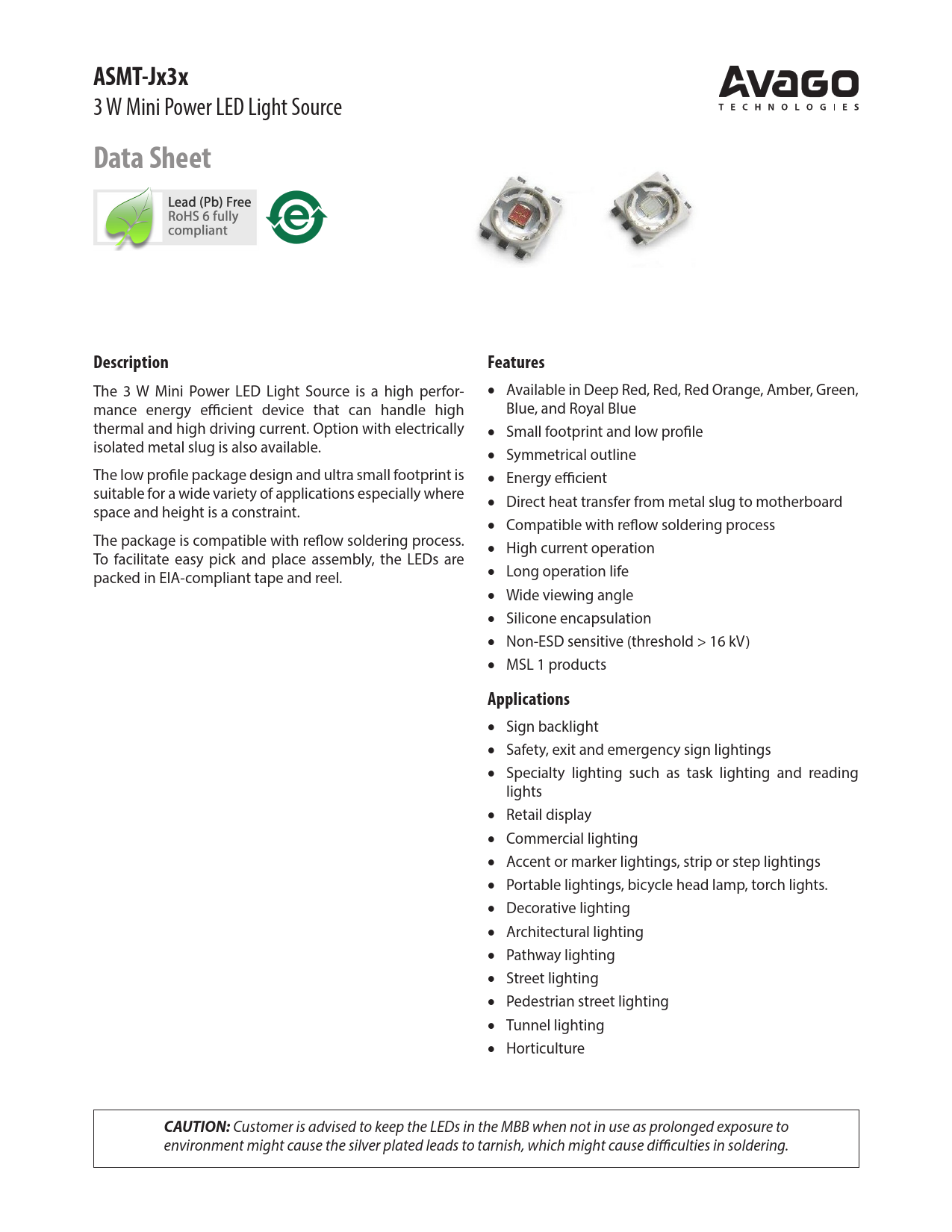

ASMT-Jx3x
3 W Mini Power LED Light Source
Data Sheet Description Features
The 3 W Mini Power LED Light Source is a high perfor- • Available in Deep Red, Red, Red Orange, Amber, Green, mance energy efficient device that can handle high Blue, and Royal Blue thermal and high driving current. Option with electrically • Small footprint and low profile isolated metal slug is also available. • Symmetrical outline The low profile package design and ultra small footprint is • Energy efficient suitable for a wide variety of applications especially where • Direct heat transfer from metal slug to motherboard space and height is a constraint. • Compatible with reflow soldering process The package is compatible with reflow soldering process. • High current operation To facilitate easy pick and place assembly, the LEDs are packed in EIA-compliant tape and reel. • Long operation life • Wide viewing angle • Silicone encapsulation • Non-ESD sensitive (threshold > 16 kV) • MSL 1 products
Applications
• Sign backlight • Safety, exit and emergency sign lightings • Specialty lighting such as task lighting and reading lights • Retail display • Commercial lighting • Accent or marker lightings, strip or step lightings • Portable lightings, bicycle head lamp, torch lights. • Decorative lighting • Architectural lighting • Pathway lighting • Street lighting • Pedestrian street lighting • Tunnel lighting • Horticulture
CAUTION:
Customer is advised to keep the LEDs in the MBB when not in use as prolonged exposure to environment might cause the silver plated leads to tarnish, which might cause difficulties in soldering.
