Datasheet RUC002N05 (Rohm) - 3
| Fabricante | Rohm |
| Descripción | Nch 50V 200mA Small Signal MOSFET |
| Páginas / Página | 14 / 3 — RUC002N05. Electrical characteristics. Body diode electrical … |
| Formato / tamaño de archivo | PDF / 3.0 Mb |
| Idioma del documento | Inglés |

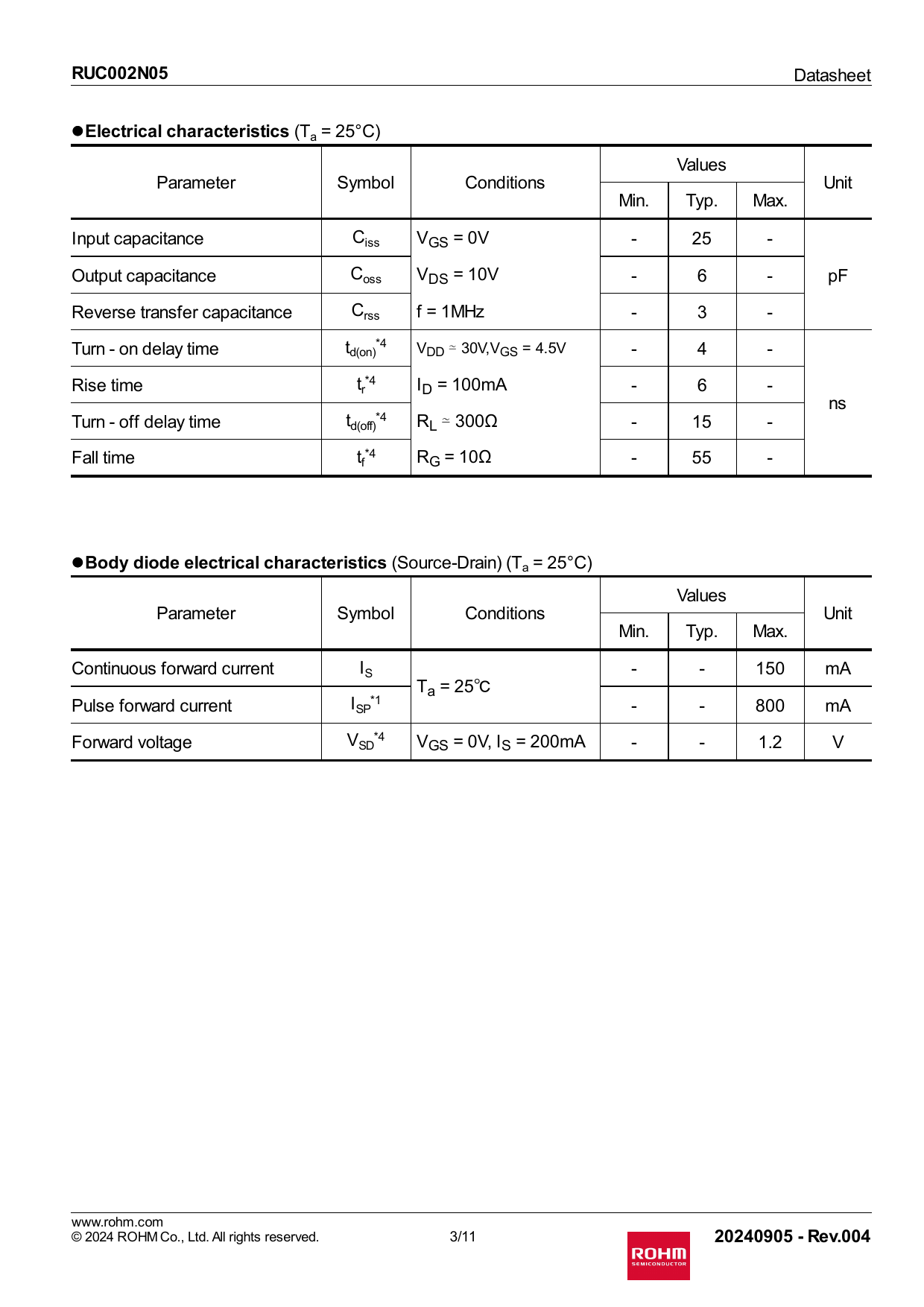

RUC002N05. Electrical characteristics. Body diode electrical characteristics. 20240905 - Rev.004
Línea de modelo para esta hoja de datos
Versión de texto del documento
RUC002N05
Datasheet l
Electrical characteristics
(Ta = 25°C) Values Parameter Symbol Conditions Unit Min. Typ. Max. Input capacitance Ciss VGS = 0V - 25 - Output capacitance Coss VDS = 10V - 6 - pF Reverse transfer capacitance Crss f = 1MHz - 3 - Turn - on delay time t *4 d(on) VDD ⋍ 30V,VGS = 4.5V - 4 - Rise time t *4 r ID = 100mA - 6 - ns Turn - off delay time t *4 d(off) RL ⋍ 300Ω - 15 - Fall time t *4 f RG = 10Ω - 55 - l
Body diode electrical characteristics
(Source-Drain) (Ta = 25°C) Values Parameter Symbol Conditions Unit Min. Typ. Max. Continuous forward current IS - - 150 mA Ta = 25℃ Pulse forward current I *1 SP - - 800 mA Forward voltage V *4 SD VGS = 0V, IS = 200mA - - 1.2 V www.rohm.com © 2024 ROHM Co., Ltd. All rights reserved. 3/11
20240905 - Rev.004
