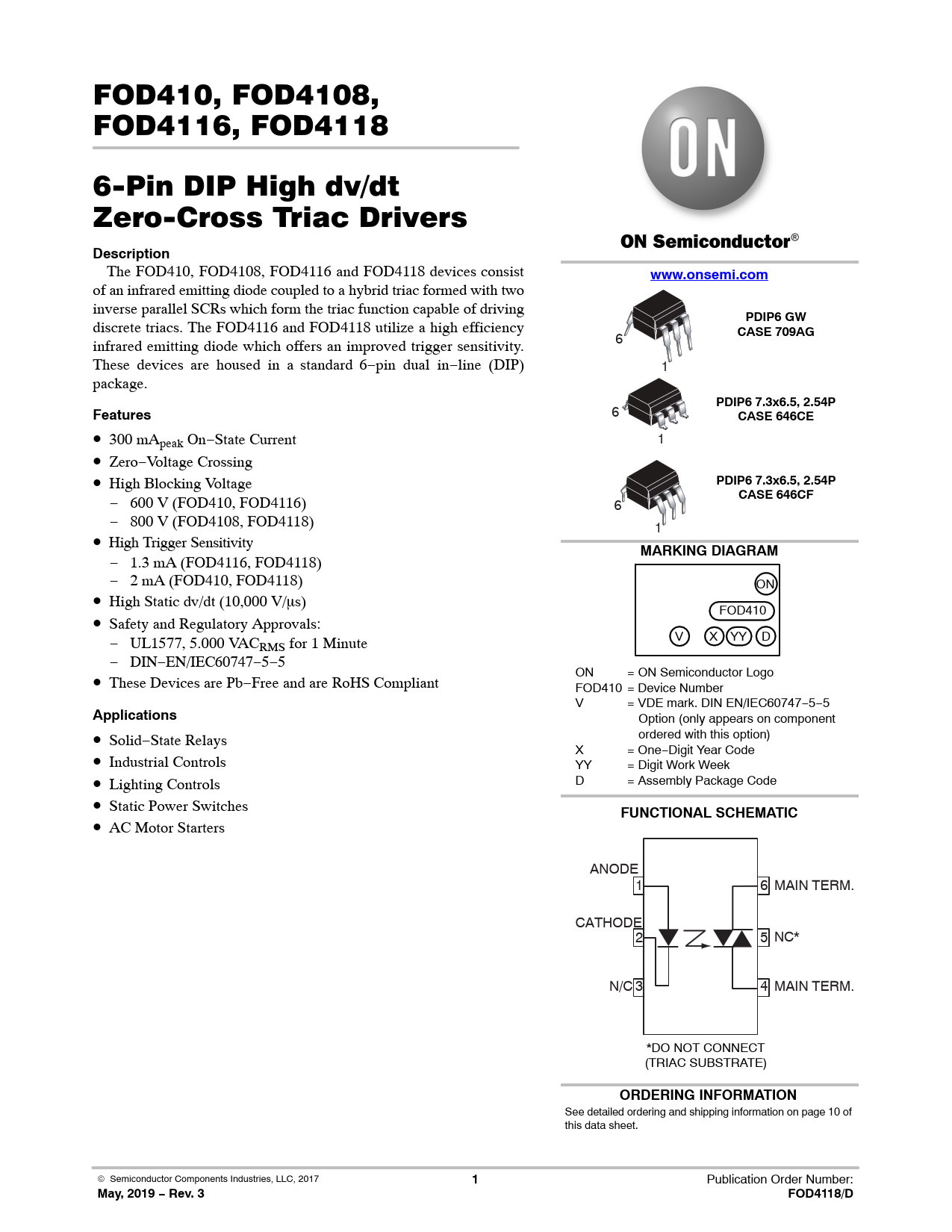

FOD410, FOD4108, FOD4116, FOD4118 6-Pin DIP High dv/dt Zero-Cross Triac Drivers
Description
The FOD410, FOD4108, FOD4116 and FOD4118 devices consist
www.onsemi.com
of an infrared emitting diode coupled to a hybrid triac formed with two inverse parallel SCRs which form the triac function capable of driving
PDIP6 GW
discrete triacs. The FOD4116 and FOD4118 utilize a high efficiency
CASE 709AG
infrared emitting diode which offers an improved trigger sensitivity. 6 These devices are housed in a standard 6−pin dual in−line (DIP) 1 package.
PDIP6 7.3x6.5, 2.54P Features
6
CASE 646CE
• 300 mApeak On−State Current 1 • Zero−Voltage Crossing • High Blocking Voltage
PDIP6 7.3x6.5, 2.54P
− 600 V (FOD410, FOD4116)
CASE 646CF
6 − 800 V (FOD4108, FOD4118) 1 • High Trigger Sensitivity
MARKING DIAGRAM
− 1.3 mA (FOD4116, FOD4118) − 2 mA (FOD410, FOD4118) ON • High Static dv/dt (10,000 V/ms) FOD410 • Safety and Regulatory Approvals: − UL1577, 5.000 VAC V X YY D RMS for 1 Minute − DIN−EN/IEC60747−5−5 • ON = ON Semiconductor Logo These Devices are Pb−Free and are RoHS Compliant FOD410 = Device Number V = VDE mark. DIN EN/IEC60747−5−5
Applications
Option (only appears on component • Solid−State Relays ordered with this option) • X = One−Digit Year Code Industrial Controls YY = Digit Work Week • Lighting Controls D = Assembly Package Code • Static Power Switches
FUNCTIONAL SCHEMATIC
• AC Motor Starters ANODE1 6 MAIN TERM. CATHODE2 5 NC* N/C 3 4 MAIN TERM. *DO NOT CONNECT (TRIAC SUBSTRATE)
ORDERING INFORMATION
See detailed ordering and shipping information on page 10 of this data sheet. © Semiconductor Components Industries, LLC, 2017
1
Publication Order Number:
May, 2019 − Rev. 3 FOD4118/D
