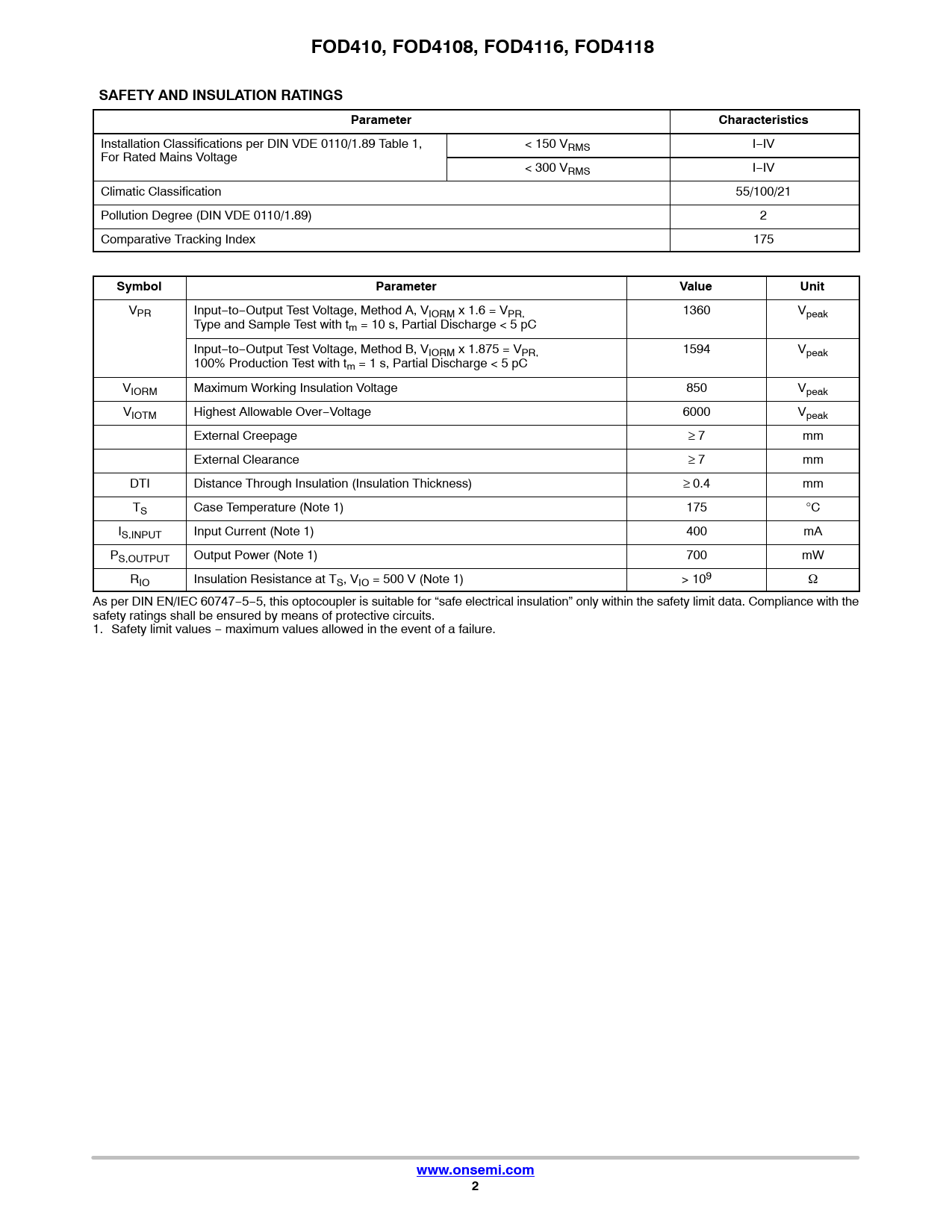

FOD410, FOD4108, FOD4116, FOD4118 SAFETY AND INSULATION RATINGS Parameter Characteristics
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ Installation Classifications per DIN VDE 0110/1.89 Table 1, ÁÁÁÁÁÁÁÁÁÁÁ < 150 VRMS ÁÁÁÁÁÁÁÁ I−IV For Rated Mains Voltage ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁ < 300 VRMS I−IV ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ Climatic Classification 55/100/21 ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ Pollution Degree (DIN VDE 0110/1.89) 2 ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ Comparative Tracking Index 175 ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ
Symbol Parameter Value Unit
VPR Input−to−Output Test Voltage, Method A, VIORM x 1.6 = VPR, 1360 Vpeak Type and Sample Test with tm = 10 s, Partial Discharge < 5 pC Input−to−Output Test Voltage, Method B, VIORM x 1.875 = VPR, 1594 Vpeak 100% Production Test with tm = 1 s, Partial Discharge < 5 pC VIORM Maximum Working Insulation Voltage 850 Vpeak VIOTM Highest Allowable Over−Voltage 6000 Vpeak External Creepage ≥ 7 mm External Clearance ≥ 7 mm DTI Distance Through Insulation (Insulation Thickness) ≥ 0.4 mm TS Case Temperature (Note 1) 175 °C IS,INPUT Input Current (Note 1) 400 mA PS,OUTPUT Output Power (Note 1) 700 mW RIO Insulation Resistance at TS, VIO = 500 V (Note 1) > 109 W As per DIN EN/IEC 60747−5−5, this optocoupler is suitable for “safe electrical insulation” only within the safety limit data. Compliance with the safety ratings shall be ensured by means of protective circuits. 1. Safety limit values − maximum values allowed in the event of a failure.
