Datasheet PSMN9R0-30YL (Nexperia) - 2
| Fabricante | Nexperia |
| Descripción | N-channel 30 V 8 mΩ logic level MOSFET in LFPAK |
| Páginas / Página | 14 / 2 — NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET … |
| Revisión | 10201103 |
| Formato / tamaño de archivo | PDF / 394 Kb |
| Idioma del documento | Inglés |
NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET in LFPAK. Pinning information. Table 2. Pin. Symbol
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

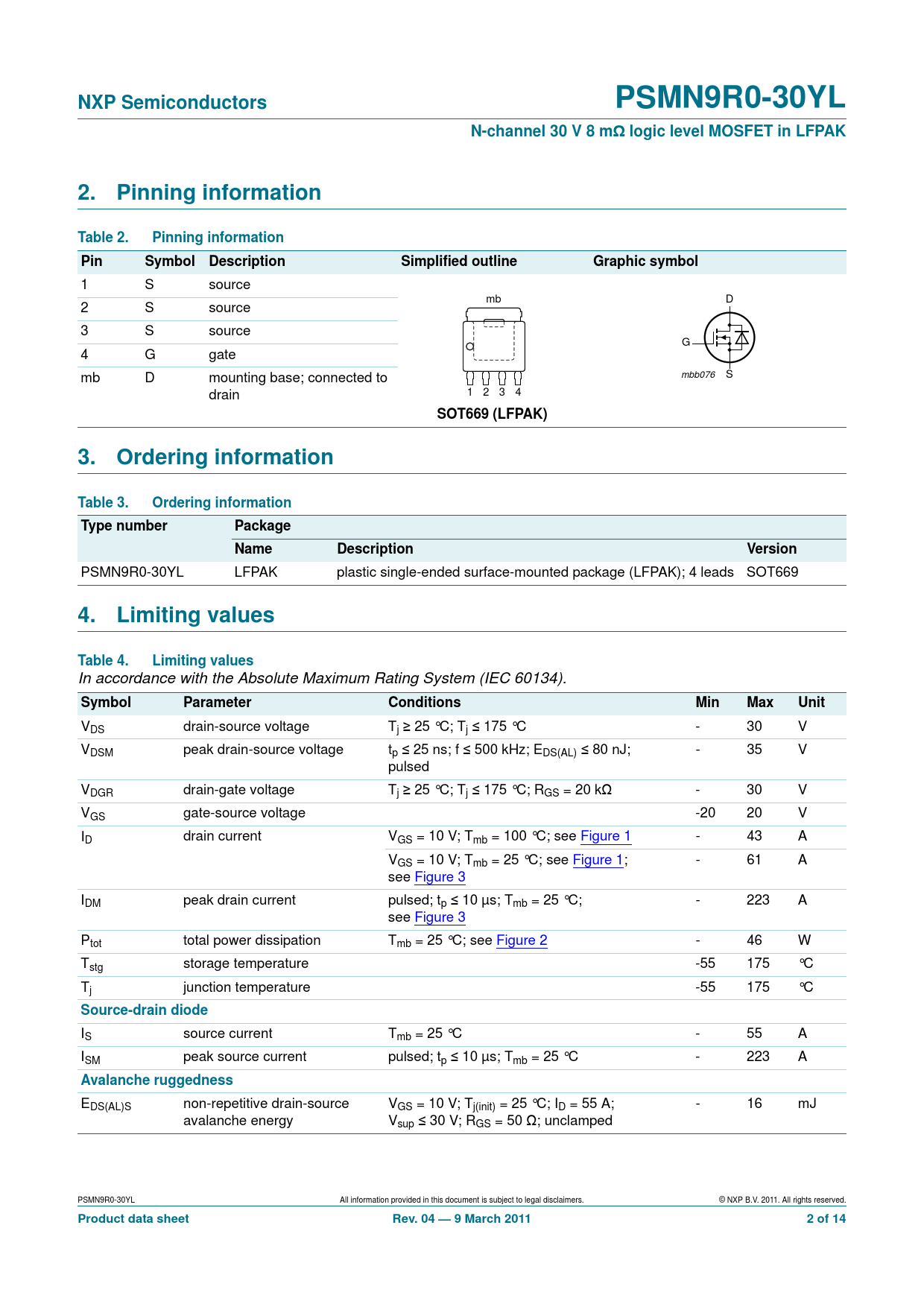

NXP Semiconductors PSMN9R0-30YL N-channel 30 V 8 mΩ logic level MOSFET in LFPAK 2. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 S source mb D 2 S source 3 S source G 4 G gate mb D mounting base; connected to mbb076 S drain 1 2 3 4
SOT669 (LFPAK) 3. Ordering information Table 3. Ordering information Type number Package Name Description Version
PSMN9R0-30YL LFPAK plastic single-ended surface-mounted package (LFPAK); 4 leads SOT669
4. Limiting values Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDS drain-source voltage Tj ≥ 25 °C; Tj ≤ 175 °C - 30 V VDSM peak drain-source voltage tp ≤ 25 ns; f ≤ 500 kHz; EDS(AL) ≤ 80 nJ; - 35 V pulsed VDGR drain-gate voltage Tj ≥ 25 °C; Tj ≤ 175 °C; RGS = 20 kΩ - 30 V VGS gate-source voltage -20 20 V ID drain current VGS = 10 V; Tmb = 100 °C; see Figure 1 - 43 A VGS = 10 V; Tmb = 25 °C; see Figure 1; - 61 A see Figure 3 IDM peak drain current pulsed; tp ≤ 10 µs; Tmb = 25 °C; - 223 A see Figure 3 Ptot total power dissipation Tmb = 25 °C; see Figure 2 - 46 W Tstg storage temperature -55 175 °C Tj junction temperature -55 175 °C
Source-drain diode
IS source current Tmb = 25 °C - 55 A ISM peak source current pulsed; tp ≤ 10 µs; Tmb = 25 °C - 223 A
Avalanche ruggedness
EDS(AL)S non-repetitive drain-source VGS = 10 V; Tj(init) = 25 °C; ID = 55 A; - 16 mJ avalanche energy Vsup ≤ 30 V; RGS = 50 Ω; unclamped PSMN9R0-30YL All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 04 — 9 March 2011 2 of 14
