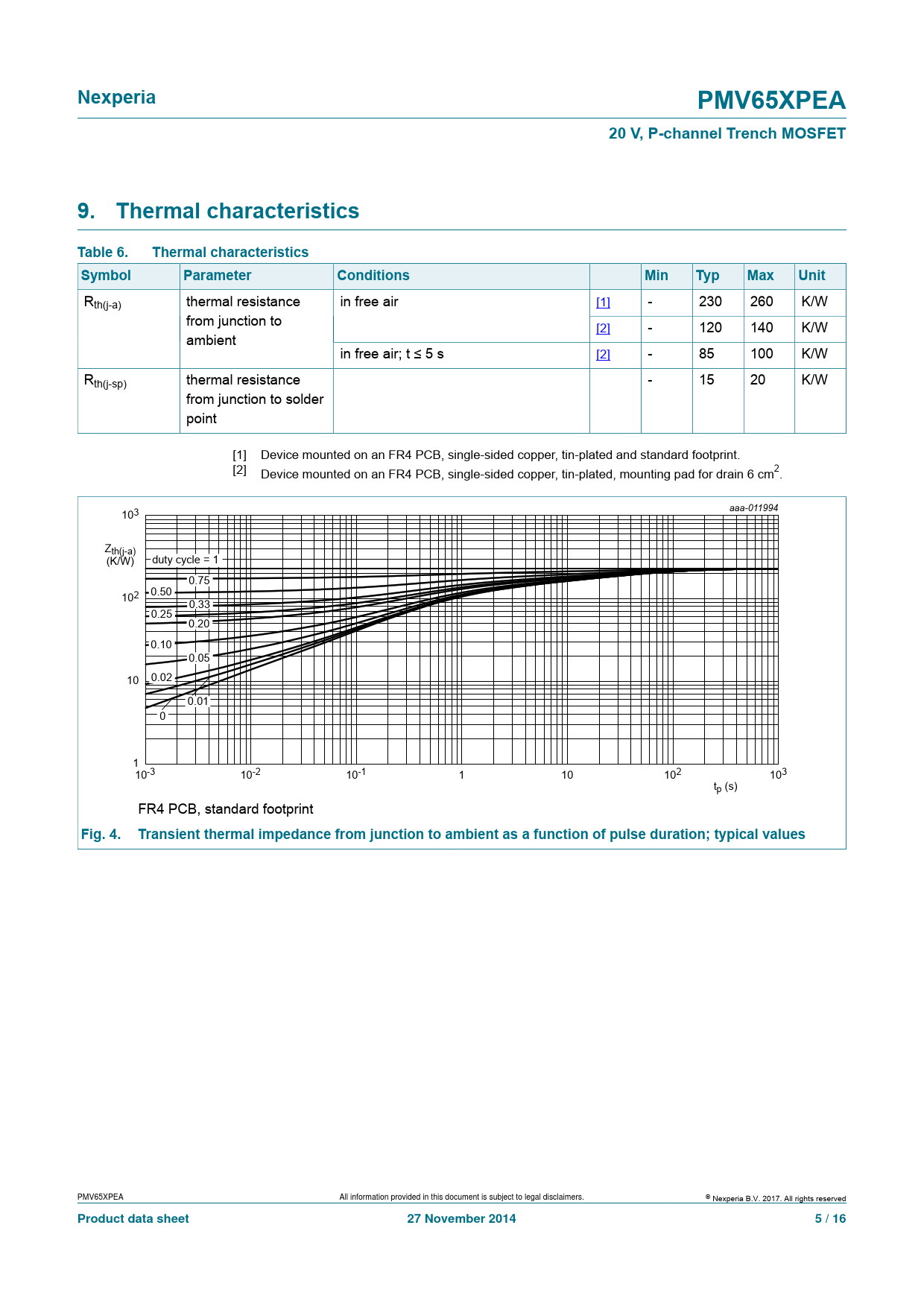

Nexperia PMV65XPEA 20 V, P-channel Trench MOSFET 9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance in free air [1] - 230 260 K/W from junction to [2] - 120 140 K/W ambient in free air; t ≤ 5 s [2] - 85 100 K/W Rth(j-sp) thermal resistance - 15 20 K/W from junction to solder point [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 6 cm2. aaa-011994 103 Zth(j-a) (K/W) duty cycle = 1 0.75 102 0.50 0.33 0.25 0.20 0.10 0.05 10 0.02 0.01 0 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, standard footprint
Fig. 4. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PMV65XPEA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 27 November 2014 5 / 16
