| Fabricante | Nexperia |
| Descripción | 20 V, P-channel Trench MOSFET |
| Páginas / Página | 16 / 6 — Nexperia. PMV65XPEA. 20 V, P-channel Trench MOSFET |
| Revisión | 04201705 |
| Formato / tamaño de archivo | PDF / 722 Kb |
| Idioma del documento | Inglés |
Nexperia. PMV65XPEA. 20 V, P-channel Trench MOSFET
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia PMV65XPEA 20 V, P-channel Trench MOSFET
aaa-011995 103 Zth(j-a) (K/W) duty cycle = 1 102 0.75 0.50 0.33 0.25 0.20 0.10 0.05 10 0.020.010 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, mounting pad for drain 6 cm2

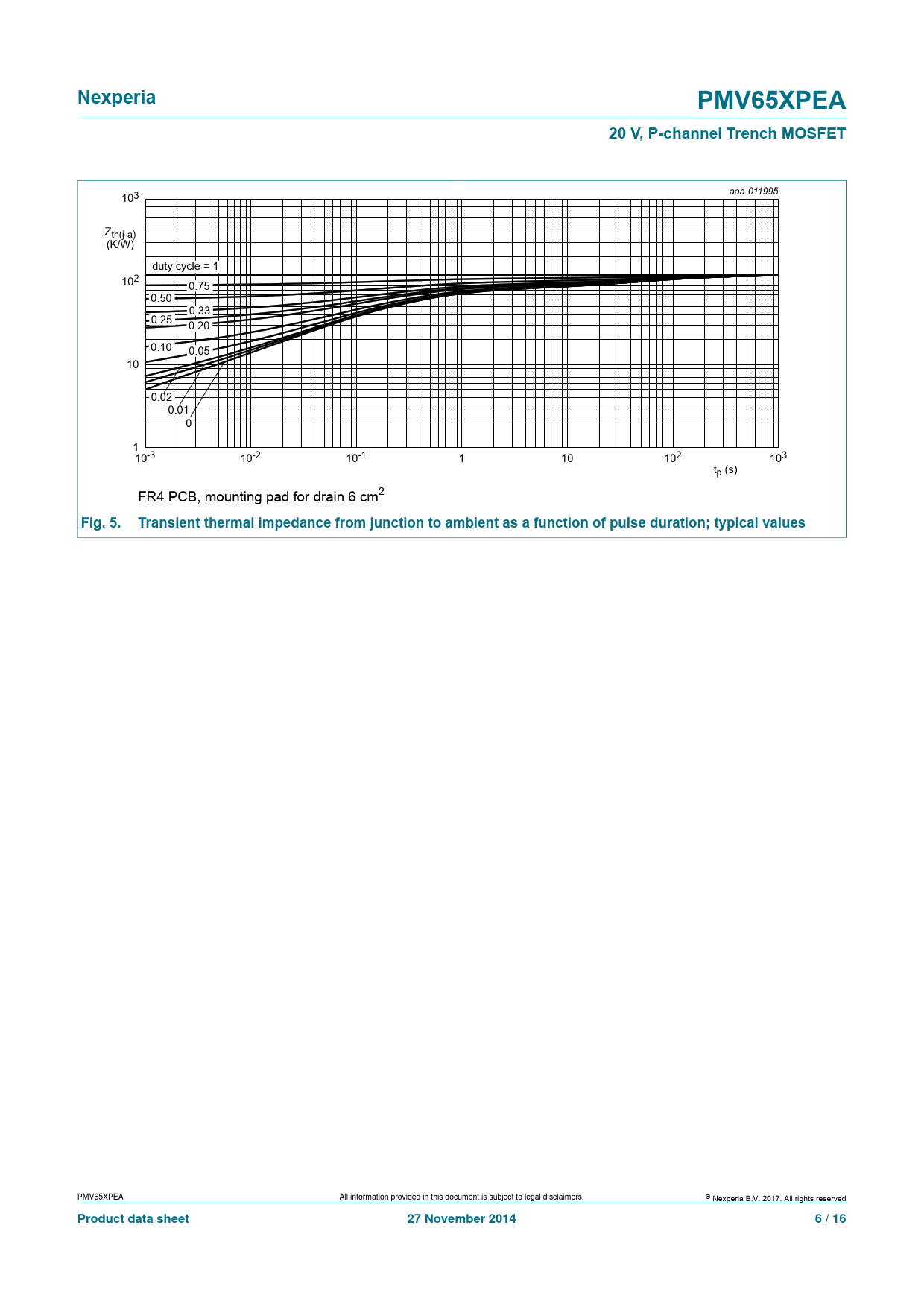

Fig. 5. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PMV65XPEA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 27 November 2014 6 / 16
Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Test information 12. Package outline 13. Soldering 14. Revision history 15. Legal information
aaa-011995 103 Zth(j-a) (K/W) duty cycle = 1 102 0.75 0.50 0.33 0.25 0.20 0.10 0.05 10 0.020.010 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, mounting pad for drain 6 cm2
Fig. 5. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
