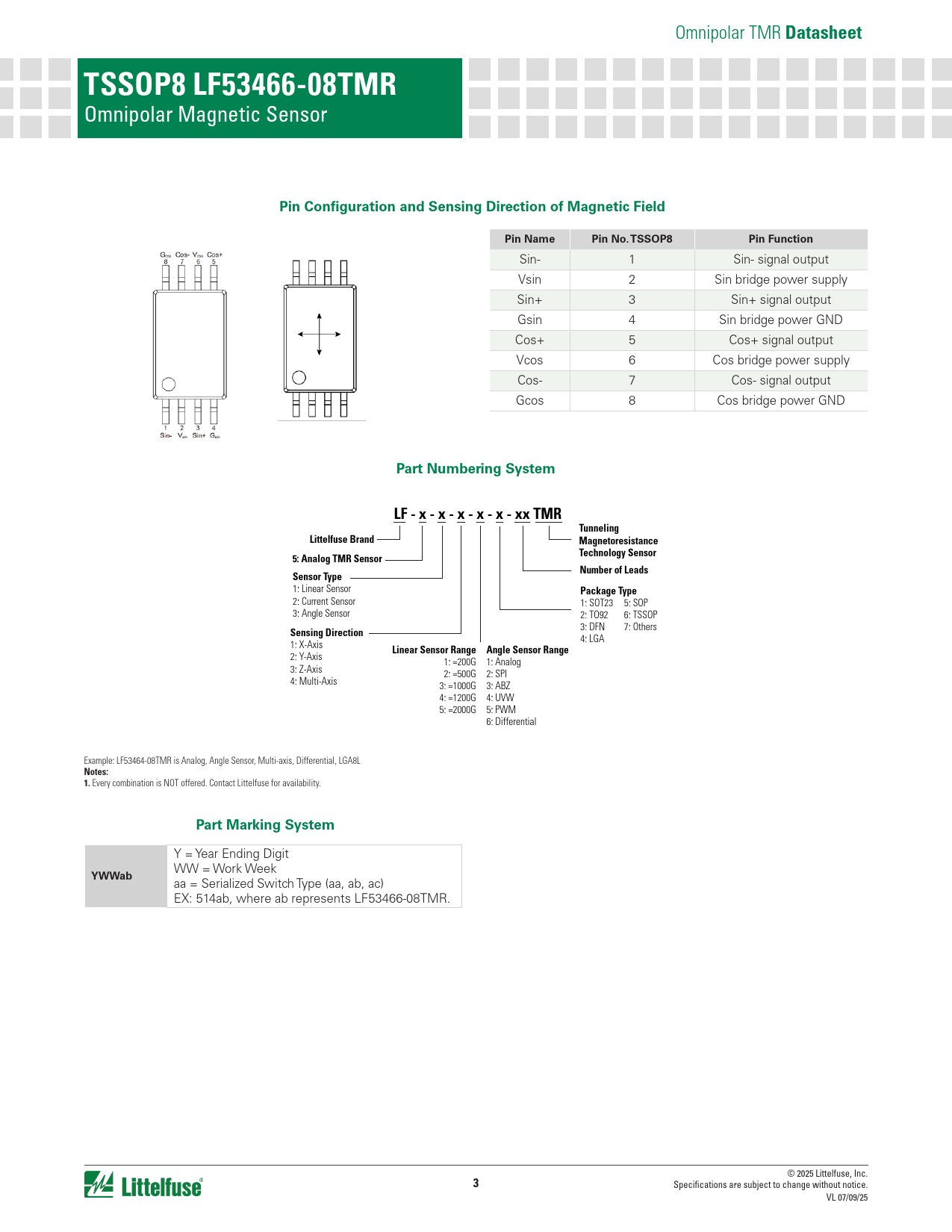

Datasheet LF53466 (Littelfuse) - 3

Omnipolar TMR
Datasheet TSSOP8 LF53466-08TMR
Omnipolar Magnetic Sensor
Pin Configuration and Sensing Direction of Magnetic Field Pin Name Pin No. TSSOP8 Pin Function
Sin- 1 Sin- signal output Vsin 2 Sin bridge power supply Sin+ 3 Sin+ signal output Gsin 4 Sin bridge power GND Cos+ 5 Cos+ signal output Vcos 6 Cos bridge power supply Cos- 7 Cos- signal output Gcos 8 Cos bridge power GND
Part Numbering System LF - x - x - x - x - x - xx TMR Tunneling Littelfuse Brand Magnetoresistance Technology Sensor 5: Analog TMR Sensor Number of Leads Sensor Type
1: Linear Sensor
Package Type
2: Current Sensor 1: SOT23 5: SOP 3: Angle Sensor 2: TO92 6: TSSOP
Sensing Direction
3: DFN 7: Others 1: X-Axis 4: LGA
Linear Sensor Range Angle Sensor Range
2: Y-Axis 1: =200G 1: Analog 3: Z-Axis 2: =500G 2: SPI 4: Multi-Axis 3: =1000G 3: ABZ 4: =1200G 4: UVW 5: =2000G 5: PWM 6: Differential Example: LF53464-08TMR is Analog, Angle Sensor, Multi-axis, Differential, LGA8L
Notes: 1.
Every combination is NOT offered. Contact Littelfuse for availability.
Part Marking System
Y = Year Ending Digit WW = Work Week
YWWab
aa = Serialized Switch Type (aa, ab, ac) EX: 514ab, where ab represents LF53466-08TMR. © 2025 Littelfuse, Inc.
3
Specifications are subject to change without notice. VL 07/09/25
