Datasheet. TSSOP8 LF53466-08TMR. Item. Dimension(mm). TSSOP8 Package Information. Disclaimer Notice -
Línea de modelo para esta hoja de datos
Versión de texto del documento
Omnipolar TMR

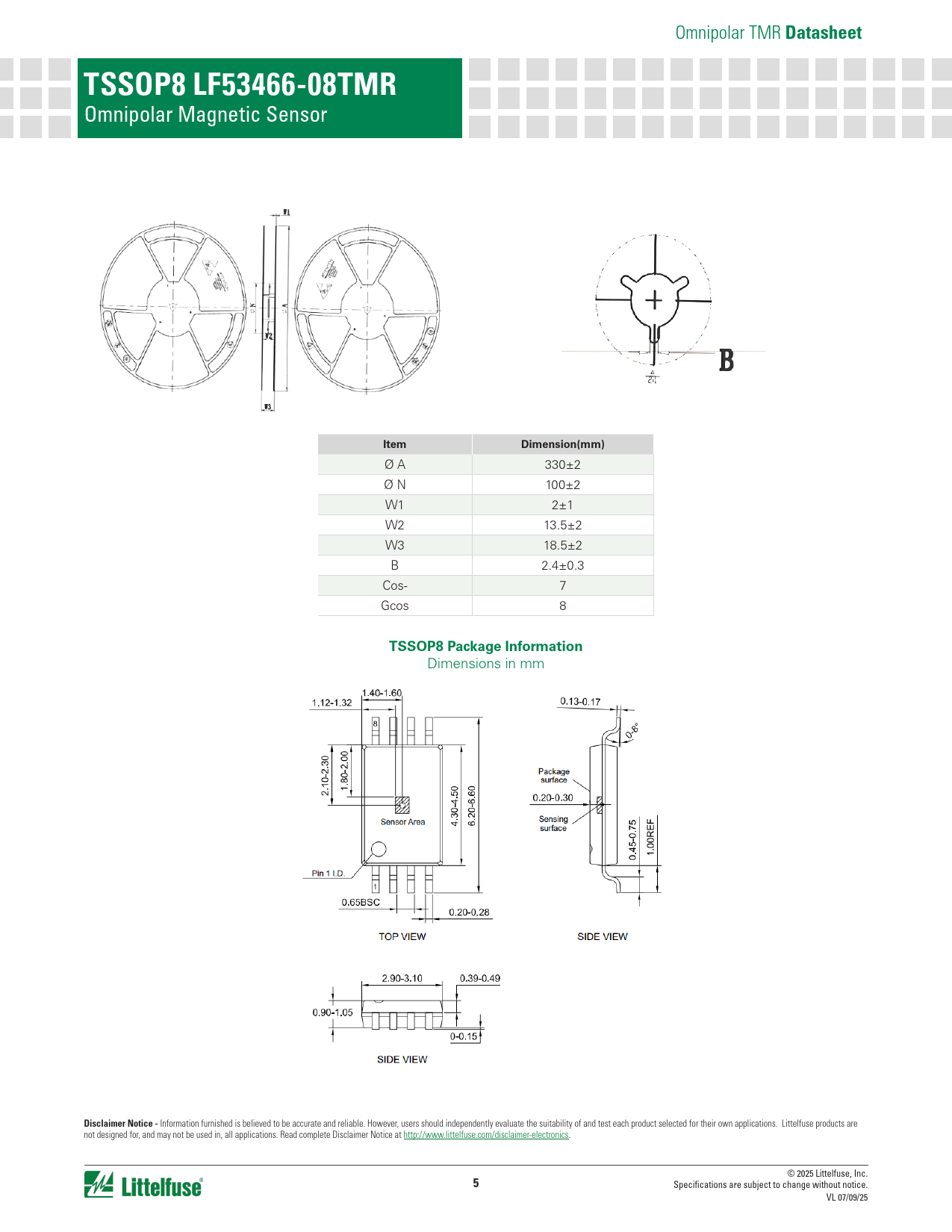

Datasheet TSSOP8 LF53466-08TMR
Omnipolar Magnetic Sensor
Item Dimension(mm)
Ø A 330±2 Ø N 100±2 W1 2±1 W2 13.5±2 W3 18.5±2 B 2.4±0.3 Cos- 7 Gcos 8
TSSOP8 Package Information
Dimensions in mm
Disclaimer Notice -
Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at http://www.littelfuse.com/disclaimer-electronics. © 2025 Littelfuse, Inc.
5
Specifications are subject to change without notice. VL 07/09/25
