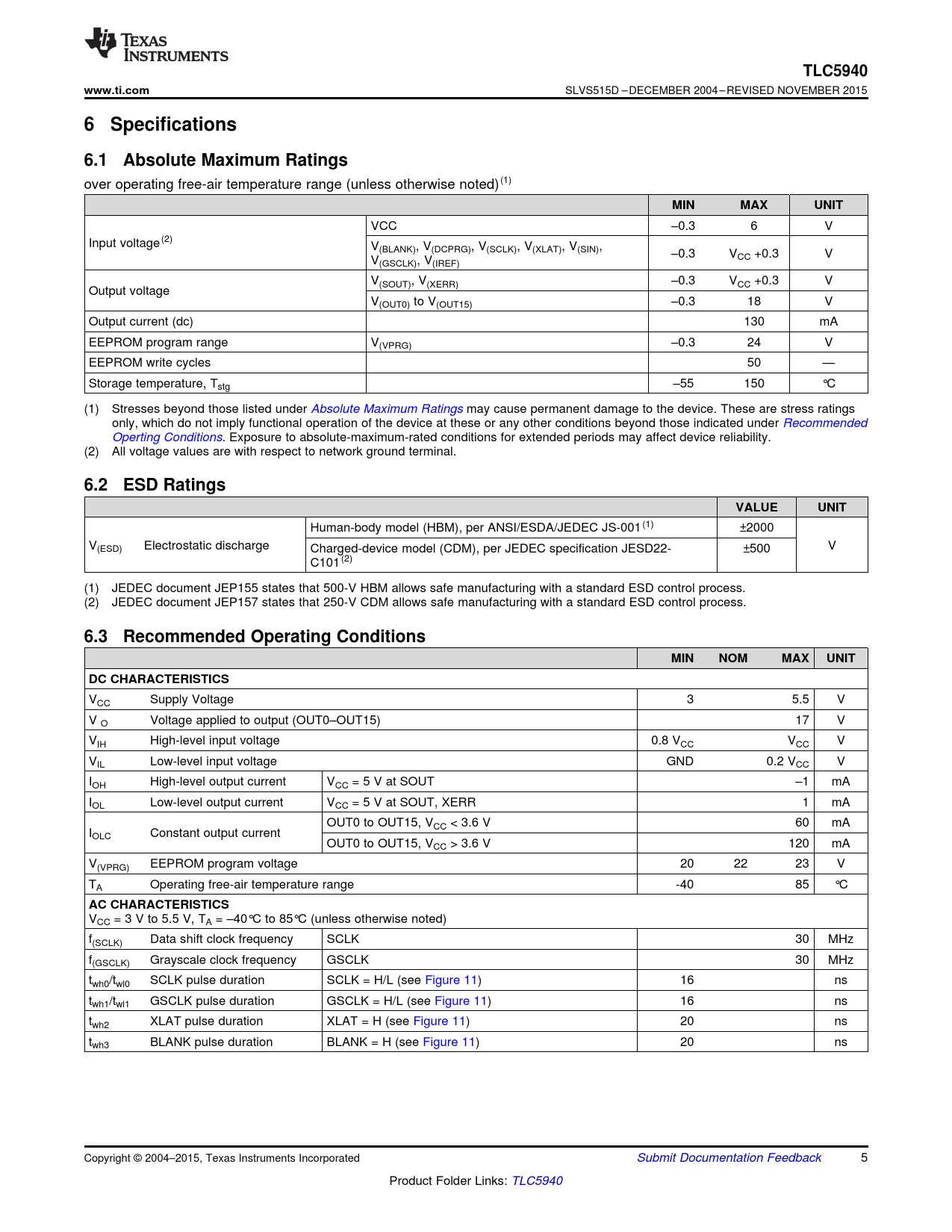

TLC5940 www.ti.com
SLVS515D – DECEMBER 2004 – REVISED NOVEMBER 2015
6 Specifications 6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VCC –0.3 6 V Input voltage(2) V(BLANK), V(DCPRG), V(SCLK), V(XLAT), V(SIN), –0.3 VCC +0.3 V V(GSCLK), V(IREF) V(SOUT), V(XERR) –0.3 VCC +0.3 V Output voltage V(OUT0) to V(OUT15) –0.3 18 V Output current (dc) 130 mA EEPROM program range V(VPRG) –0.3 24 V EEPROM write cycles 50 — Storage temperature, Tstg –55 150 °C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operting Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) All voltage values are with respect to network ground terminal.
6.2 ESD Ratings VALUE UNIT
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V(ESD) Electrostatic discharge V Charged-device model (CDM), per JEDEC specification JESD22- ±500 C101(2) (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions MIN NOM MAX UNIT DC CHARACTERISTICS
VCC Supply Voltage 3 5.5 V V O Voltage applied to output (OUT0–OUT15) 17 V VIH High-level input voltage 0.8 VCC VCC V VIL Low-level input voltage GND 0.2 VCC V IOH High-level output current VCC = 5 V at SOUT –1 mA IOL Low-level output current VCC = 5 V at SOUT, XERR 1 mA OUT0 to OUT15, VCC < 3.6 V 60 mA IOLC Constant output current OUT0 to OUT15, VCC > 3.6 V 120 mA V(VPRG) EEPROM program voltage 20 22 23 V TA Operating free-air temperature range -40 85 °C
AC CHARACTERISTICS
VCC = 3 V to 5.5 V, TA = –40°C to 85°C (unless otherwise noted) f(SCLK) Data shift clock frequency SCLK 30 MHz f(GSCLK) Grayscale clock frequency GSCLK 30 MHz twh0/twl0 SCLK pulse duration SCLK = H/L (see Figure 11) 16 ns twh1/twl1 GSCLK pulse duration GSCLK = H/L (see Figure 11) 16 ns twh2 XLAT pulse duration XLAT = H (see Figure 11) 20 ns twh3 BLANK pulse duration BLANK = H (see Figure 11) 20 ns Copyright © 2004–2015, Texas Instruments Incorporated Submit Documentation Feedback 5 Product Folder Links: TLC5940 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 Electrical Characteristics 6.6 Switching Characteristics 6.7 Typical Characteristics 7 Parameter Measurement Information 7.1 Test Parameter Equations 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Serial Interface 8.3.2 Error Information Output 8.3.3 TEF: Thermal Error Flag 8.3.4 LOD: LED Open Detection 8.3.5 Delay Between Outputs 8.3.6 Output Enable 8.3.7 Setting Maximum Channel Current 8.4 Device Functional Modes 8.4.1 Operating Modes 8.4.2 Setting DOT Correction 8.4.3 Setting Grayscale 8.4.4 Status Information Output 8.4.5 Grayscale PWM Operation 9 Application and Implementation 9.1 Application Information 9.2 Typical Application 9.2.1 Design Requirements 9.2.2 Detailed Design Procedure 9.2.2.1 Serial Data Transfer Rate 9.2.2.2 Grayscale (GS) Data 9.2.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 11.3 Power Dissipation Calculation 12 Device and Documentation Support 12.1 Community Resources 12.2 Trademarks 12.3 Electrostatic Discharge Caution 12.4 Glossary 13 Mechanical, Packaging, and Orderable Information
