Datasheet TCRT5000 (Vishay)
| Fabricante | Vishay |
| Descripción | Reflective Optical Sensor With Transistor Output |
| Páginas / Página | 7 / 1 — TCRT5000, TCRT5000L. Reflective Optical Sensor with Transistor Output. … |
| Formato / tamaño de archivo | PDF / 177 Kb |
| Idioma del documento | Inglés |

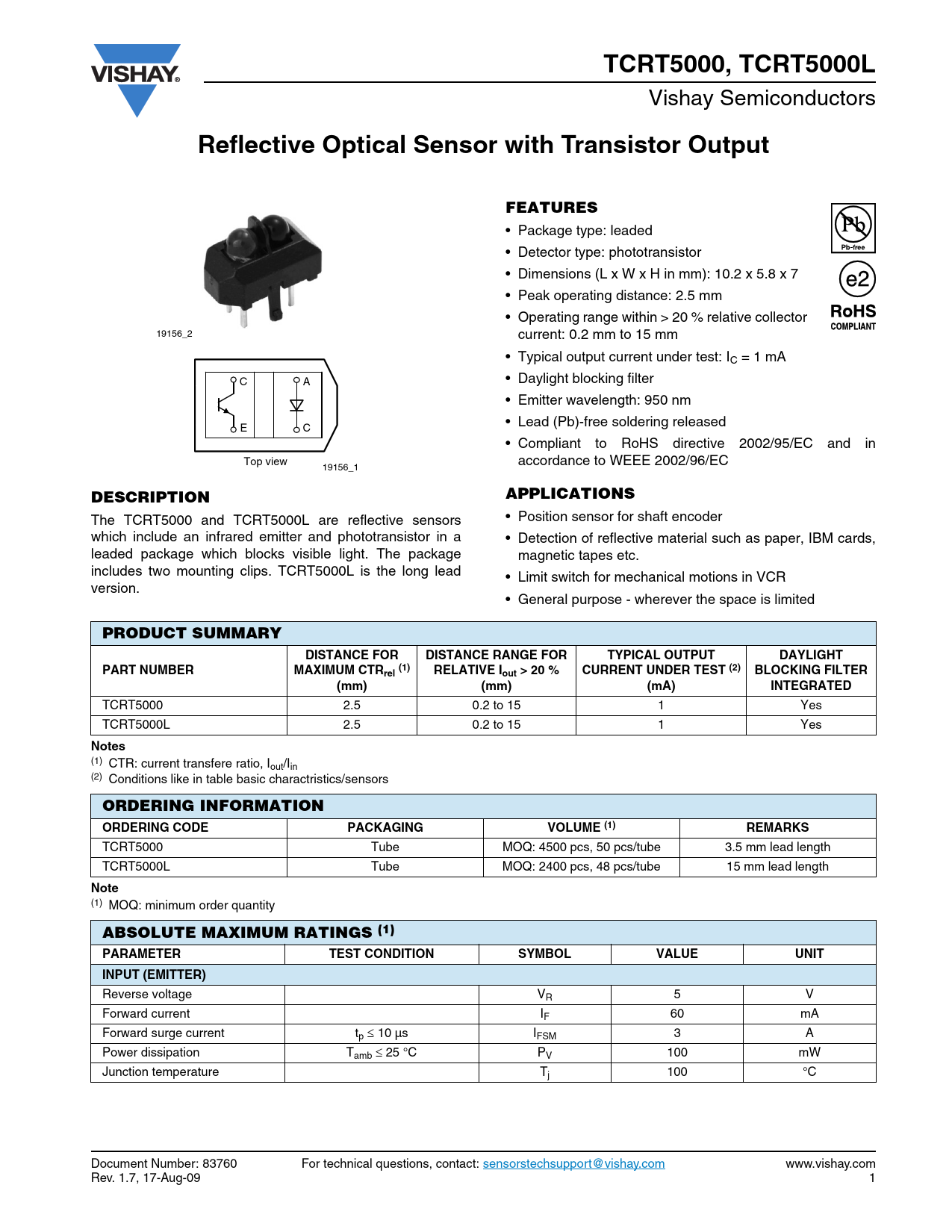

TCRT5000, TCRT5000L. Reflective Optical Sensor with Transistor Output. FEATURES. DESCRIPTION. APPLICATIONS. PRODUCT SUMMARY
Línea de modelo para esta hoja de datos
Versión de texto del documento
TCRT5000, TCRT5000L
Vishay Semiconductors
Reflective Optical Sensor with Transistor Output FEATURES
• Package type: leaded • Detector type: phototransistor • Dimensions (L x W x H in mm): 10.2 x 5.8 x 7 • Peak operating distance: 2.5 mm • Operating range within > 20 % relative collector 19156_2 current: 0.2 mm to 15 mm • Typical output current under test: IC = 1 mA C A • Daylight blocking filter • Emitter wavelength: 950 nm • Lead (Pb)-free soldering released E C • Compliant to RoHS directive 2002/95/EC and in Top view accordance to WEEE 2002/96/EC 19156_1
DESCRIPTION APPLICATIONS
The TCRT5000 and TCRT5000L are reflective sensors • Position sensor for shaft encoder which include an infrared emitter and phototransistor in a • Detection of reflective material such as paper, IBM cards, leaded package which blocks visible light. The package magnetic tapes etc. includes two mounting clips. TCRT5000L is the long lead • Limit switch for mechanical motions in VCR version. • General purpose - wherever the space is limited
PRODUCT SUMMARY DISTANCE FOR DISTANCE RANGE FOR TYPICAL OUTPUT DAYLIGHT PART NUMBER MAXIMUM CTRrel (1) RELATIVE Iout > 20 % CURRENT UNDER TEST (2) BLOCKING FILTER (mm) (mm) (mA) INTEGRATED
TCRT5000 2.5 0.2 to 15 1 Yes TCRT5000L 2.5 0.2 to 15 1 Yes
Notes
(1) CTR: current transfere ratio, Iout/Iin (2) Conditions like in table basic charactristics/sensors
ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) REMARKS
TCRT5000 Tube MOQ: 4500 pcs, 50 pcs/tube 3.5 mm lead length TCRT5000L Tube MOQ: 2400 pcs, 48 pcs/tube 15 mm lead length
Note
(1) MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS (1) PARAMETER TEST CONDITION SYMBOL VALUE UNIT INPUT (EMITTER)
Reverse voltage VR 5 V Forward current IF 60 mA Forward surge current tp ≤ 10 µs IFSM 3 A Power dissipation Tamb ≤ 25 °C PV 100 mW Junction temperature Tj 100 °C Document Number: 83760 For technical questions, contact: sensorstechsupport@vishay.com www.vishay.com Rev. 1.7, 17-Aug-09 1
