Datasheet 2M214 (LG) - 6
| Fabricante | LG |
| Descripción | Magnetron microwave |
| Páginas / Página | 14 / 6 — 2M214 MODEL. MAGNETRON SPEC. Rev. No. CHARACTERISTIC CHART. 1. … |
| Formato / tamaño de archivo | PDF / 265 Kb |
| Idioma del documento | Inglés |

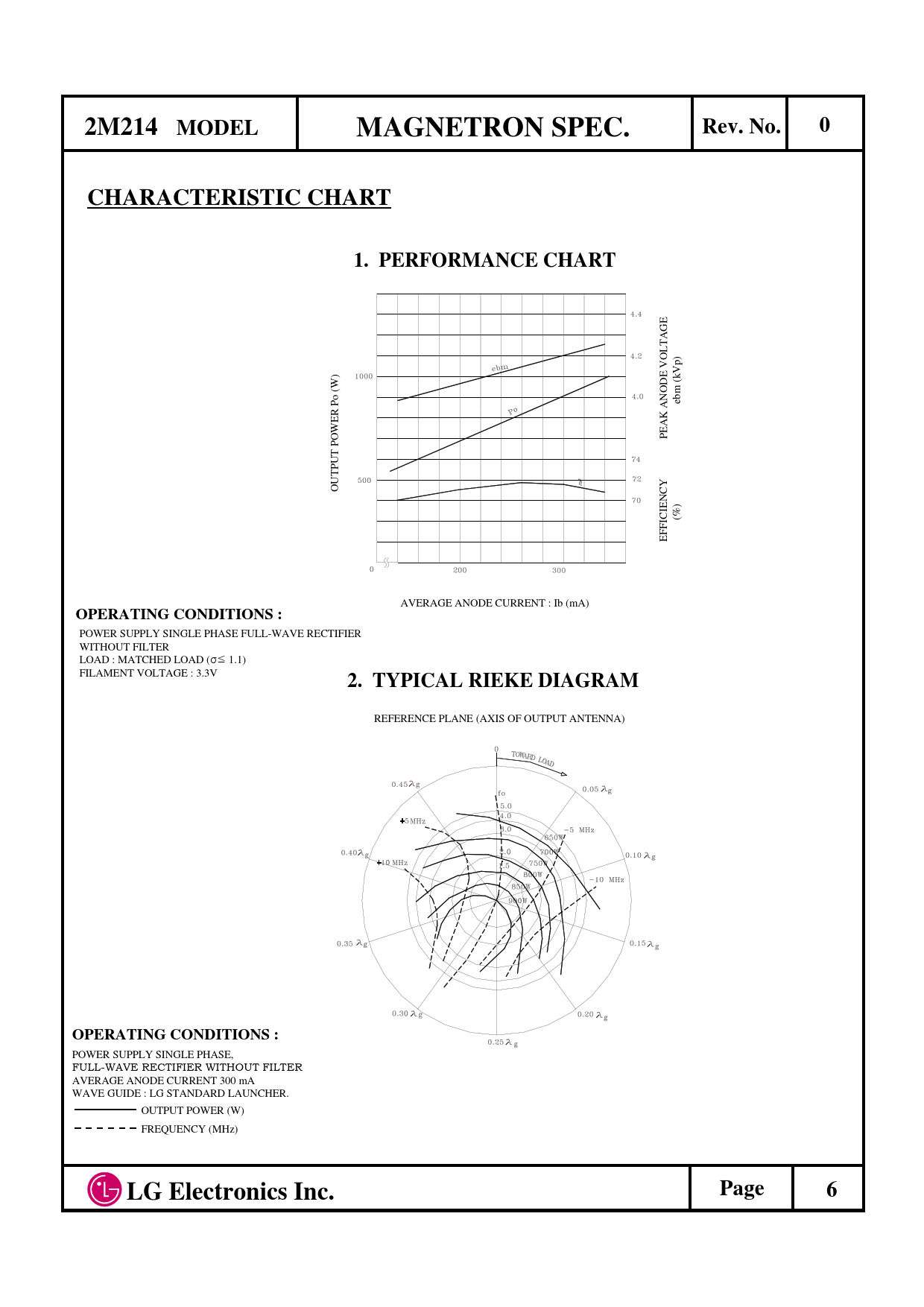

2M214 MODEL. MAGNETRON SPEC. Rev. No. CHARACTERISTIC CHART. 1. PERFORMANCE CHART. OPERATING CONDITIONS :. 2. TYPICAL RIEKE DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento
2M214 MODEL MAGNETRON SPEC. Rev. No. 0 CHARACTERISTIC CHART 1. PERFORMANCE CHART
E G A LT VO ) W DE (kVp) ( m Po eb ANO R AK E P POWE Y OUTPUT C N ) (% EFFICIE AVERAGE ANODE CURRENT : Ib (mA)
OPERATING CONDITIONS :
POWER SUPPLY SINGLE PHASE FULL-WAVE RECTIFIER WITHOUT FILTER LOAD : MATCHED LOAD (σ≤ 1.1) FILAMENT VOLTAGE : 3.3V
2. TYPICAL RIEKE DIAGRAM
REFERENCE PLANE (AXIS OF OUTPUT ANTENNA)
OPERATING CONDITIONS :
POWER SUPPLY SINGLE PHASE, FULL-WAVE RECTIFIER WITHOUT FILTER AVERAGE ANODE CURRENT 300 mA WAVE GUIDE : LG STANDARD LAUNCHER. OUTPUT POWER (W) FREQUENCY (MHz)
