Datasheet 2M214 (LG) - 8
| Fabricante | LG |
| Descripción | Magnetron microwave |
| Páginas / Página | 14 / 8 — 2M214 MODEL. MAGNETRON SPEC. Rev. No. DIMENSIONAL OUTLINE OF 2M214. … |
| Formato / tamaño de archivo | PDF / 265 Kb |
| Idioma del documento | Inglés |
2M214 MODEL. MAGNETRON SPEC. Rev. No. DIMENSIONAL OUTLINE OF 2M214. 2M214-21GKH TYPE. Page. LG Electronics Inc
Línea de modelo para esta hoja de datos
Versión de texto del documento

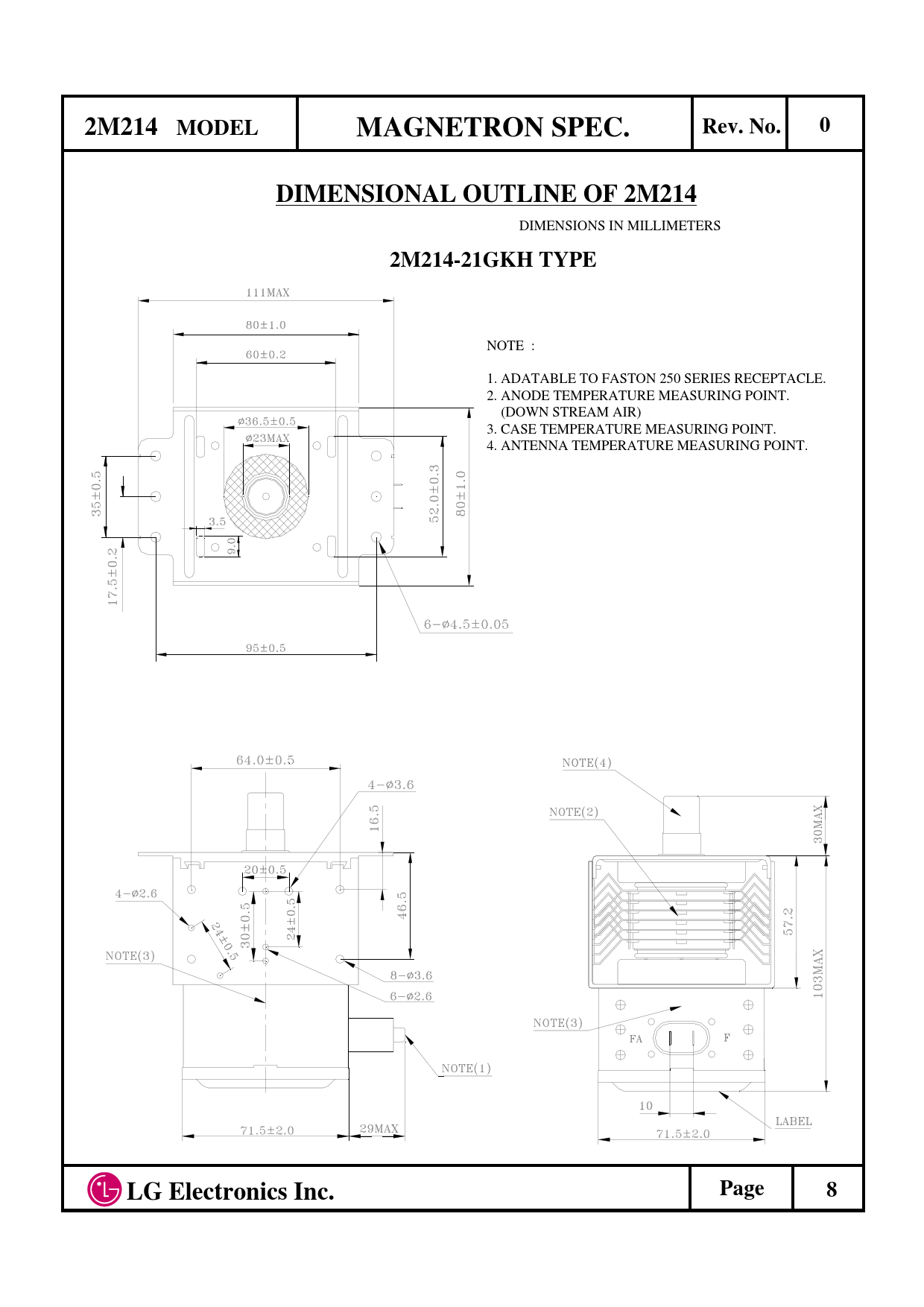

2M214 MODEL MAGNETRON SPEC. Rev. No. 0 DIMENSIONAL OUTLINE OF 2M214
DIMENSIONS IN MILLIMETERS
2M214-21GKH TYPE
NOTE : 1. ADATABLE TO FASTON 250 SERIES RECEPTACLE. 2. ANODE TEMPERATURE MEASURING POINT. (DOWN STREAM AIR) 3. CASE TEMPERATURE MEASURING POINT. 4. ANTENNA TEMPERATURE MEASURING POINT.
Page LG Electronics Inc. 8
DIMENSIONS IN MILLIMETERS
2M214-21GKH TYPE
NOTE : 1. ADATABLE TO FASTON 250 SERIES RECEPTACLE. 2. ANODE TEMPERATURE MEASURING POINT. (DOWN STREAM AIR) 3. CASE TEMPERATURE MEASURING POINT. 4. ANTENNA TEMPERATURE MEASURING POINT.
Page LG Electronics Inc. 8
