Datasheet THAT 300 (THAT Corporation) - 2
| Fabricante | THAT Corporation |
| Descripción | Low-Noise Matched Transistor Arrays |
| Páginas / Página | 8 / 2 — THAT 300. THAT 320. THAT 340. SUB. SPECIFICATIONS1. Absolute Maximum … |
| Formato / tamaño de archivo | PDF / 108 Kb |
| Idioma del documento | Inglés |
THAT 300. THAT 320. THAT 340. SUB. SPECIFICATIONS1. Absolute Maximum Ratings2,3. NPN Electrical Characteristics2
Línea de modelo para esta hoja de datos
Versión de texto del documento

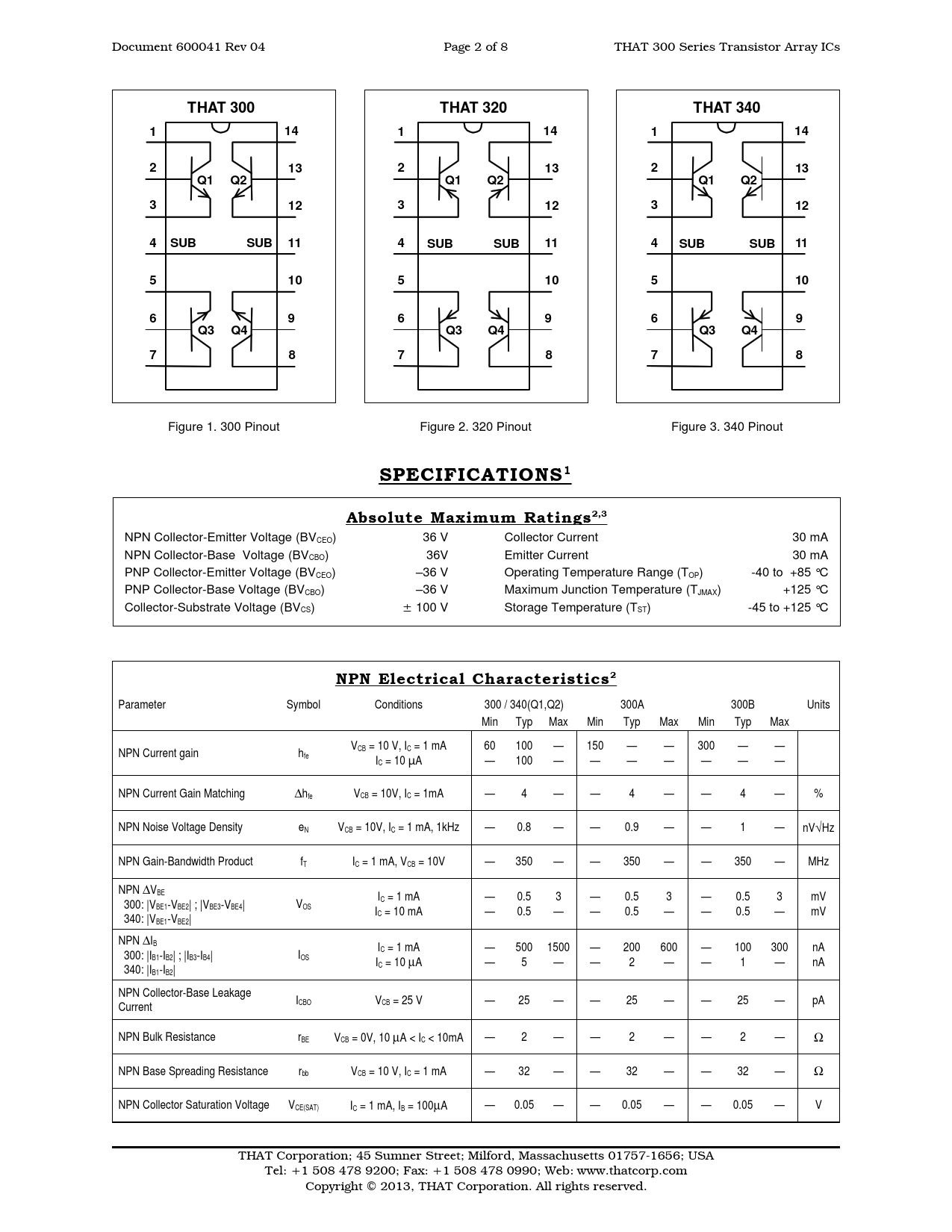

Document 600041 Rev 04 Page 2 of 8 THAT 300 Series Transistor Array ICs
THAT 300 THAT 320 THAT 340 1 14 1 14 1 14 2 13 2 13 2 13 Q1 Q2 Q1 Q2 Q1 Q2 3 12 3 12 3 12 4 SUB SUB 11 4 SUB SUB 11 4 SUB SUB 11 5 10 5 10 5 10 6 9 6 9 6 9 Q3 Q4 Q3 Q4 Q3 Q4 7 8 7 8 7 8
Figure 1. 300 Pinout Figure 2. 320 Pinout Figure 3. 340 Pinout
SPECIFICATIONS1 Absolute Maximum Ratings2,3
NPN Collector-Emitter Voltage (BVCEO) 36 V Collector Current 30 mA NPN Collector-Base Voltage (BVCBO) 36V Emitter Current 30 mA PNP Collector-Emitter Voltage (BVCEO) –36 V Operating Temperature Range (TOP) -40 to +85 °C PNP Collector-Base Voltage (BVCBO) –36 V Maximum Junction Temperature (TJMAX) +125 °C Collector-Substrate Voltage (BVCS) ± 100 V Storage Temperature (TST) -45 to +125 °C
NPN Electrical Characteristics2
Parameter Symbol Conditions 300 / 340(Q1,Q2) 300A 300B Units Min Typ Max Min Typ Max Min Typ Max VCB = 10 V, IC = 1 mA 60 100 — 150 — — 300 — — NPN Current gain hfe IC = 10 µA — 100 — — — — — — — NPN Current Gain Matching Δhfe VCB = 10V, IC = 1mA — 4 — — 4 — — 4 — % NPN Noise Voltage Density eN VCB = 10V, IC = 1 mA, 1kHz — 0.8 — — 0.9 — — 1 — nV√Hz NPN Gain-Bandwidth Product fT IC = 1 mA, VCB = 10V — 350 — — 350 — — 350 — MHz NPN ΔVBE IC = 1 mA — 0.5 3 — 0.5 3 — 0.5 3 mV 300: |VBE1-VBE2| ; |VBE3-VBE4| VOS IC = 10 mA — 0.5 — — 0.5 — — 0.5 — mV 340: |VBE1-VBE2| NPN ΔIB IC = 1 mA — 500 1500 — 200 600 — 100 300 nA 300: |IB1-IB2| ; |IB3-IB4| IOS IC = 10 μA — 5 — — 2 — — 1 — nA 340: |IB1-IB2| NPN Collector-Base Leakage ICBO VCB = 25 V — 25 — — 25 — — 25 — pA Current NPN Bulk Resistance rBE VCB = 0V, 10 μA < IC < 10mA — 2 — — 2 — — 2 — Ω NPN Base Spreading Resistance rbb VCB = 10 V, IC = 1 mA — 32 — — 32 — — 32 — Ω NPN Collector Saturation Voltage VCE(SAT) IC = 1 mA, IB = 100μA — 0.05 — — 0.05 — — 0.05 — V THAT Corporation; 45 Sumner Street; Milford, Massachusetts 01757-1656; USA Tel: +1 508 478 9200; Fax: +1 508 478 0990; Web: www.thatcorp.com Copyright © 2013, THAT Corporation. All rights reserved. Document Outline Home Features & Applications Description Ordering Information Pin Assignments Specifications Absolute Maximum Ratings NPN Electrical Characteristics PNP Electrical Characteristics Packaging and Soldering Information Package Characteristics Revision History
