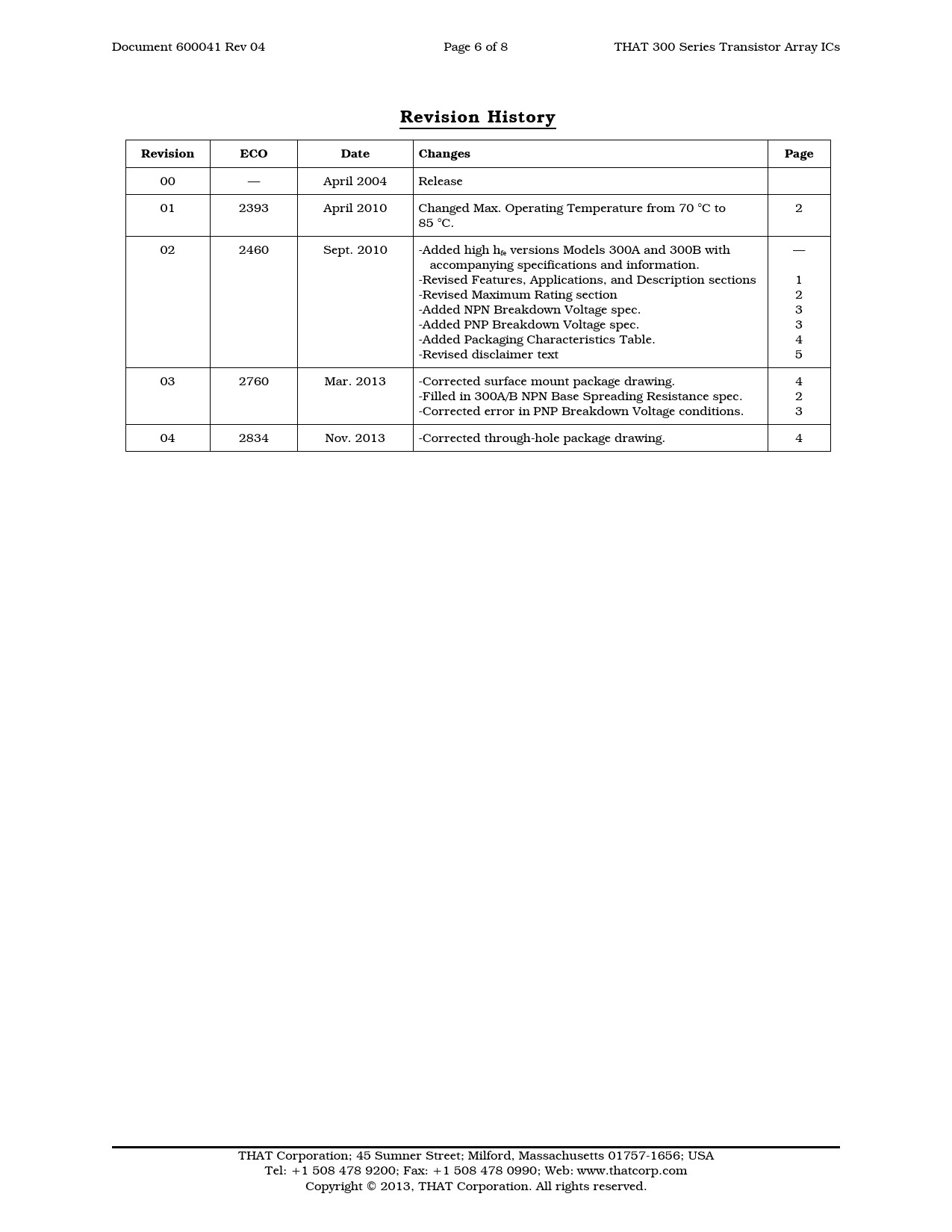

Document 600041 Rev 04 Page 6 of 8 THAT 300 Series Transistor Array ICs
Revision History Revision ECO Date Changes Page
00 — April 2004 Release 01 2393 April 2010 Changed Max. Operating Temperature from 70 °C to 2 85 °C. 02 2460 Sept. 2010 -Added high hfe versions Models 300A and 300B with — accompanying specifications and information. -Revised Features, Applications, and Description sections 1 -Revised Maximum Rating section 2 -Added NPN Breakdown Voltage spec. 3 -Added PNP Breakdown Voltage spec. 3 -Added Packaging Characteristics Table. 4 -Revised disclaimer text 5 03 2760 Mar. 2013 -Corrected surface mount package drawing. 4 -Filled in 300A/B NPN Base Spreading Resistance spec. 2 -Corrected error in PNP Breakdown Voltage conditions. 3 04 2834 Nov. 2013 -Corrected through-hole package drawing. 4 THAT Corporation; 45 Sumner Street; Milford, Massachusetts 01757-1656; USA Tel: +1 508 478 9200; Fax: +1 508 478 0990; Web: www.thatcorp.com Copyright © 2013, THAT Corporation. All rights reserved. Document Outline Home Features & Applications Description Ordering Information Pin Assignments Specifications Absolute Maximum Ratings NPN Electrical Characteristics PNP Electrical Characteristics Packaging and Soldering Information Package Characteristics Revision History
