Datasheet ES1JV (Rectron Semiconductor)
| Fabricante | Rectron Semiconductor |
| Descripción | Recovery Rectifiers 1.0 A in DO-214AC package |
| Páginas / Página | 8 / 1 — ES1AV. THRU. ES1JV. SURFACE MOUNT GLASS PASSIVATED. SUPER FAST SILICON … |
| Formato / tamaño de archivo | PDF / 219 Kb |
| Idioma del documento | Inglés |

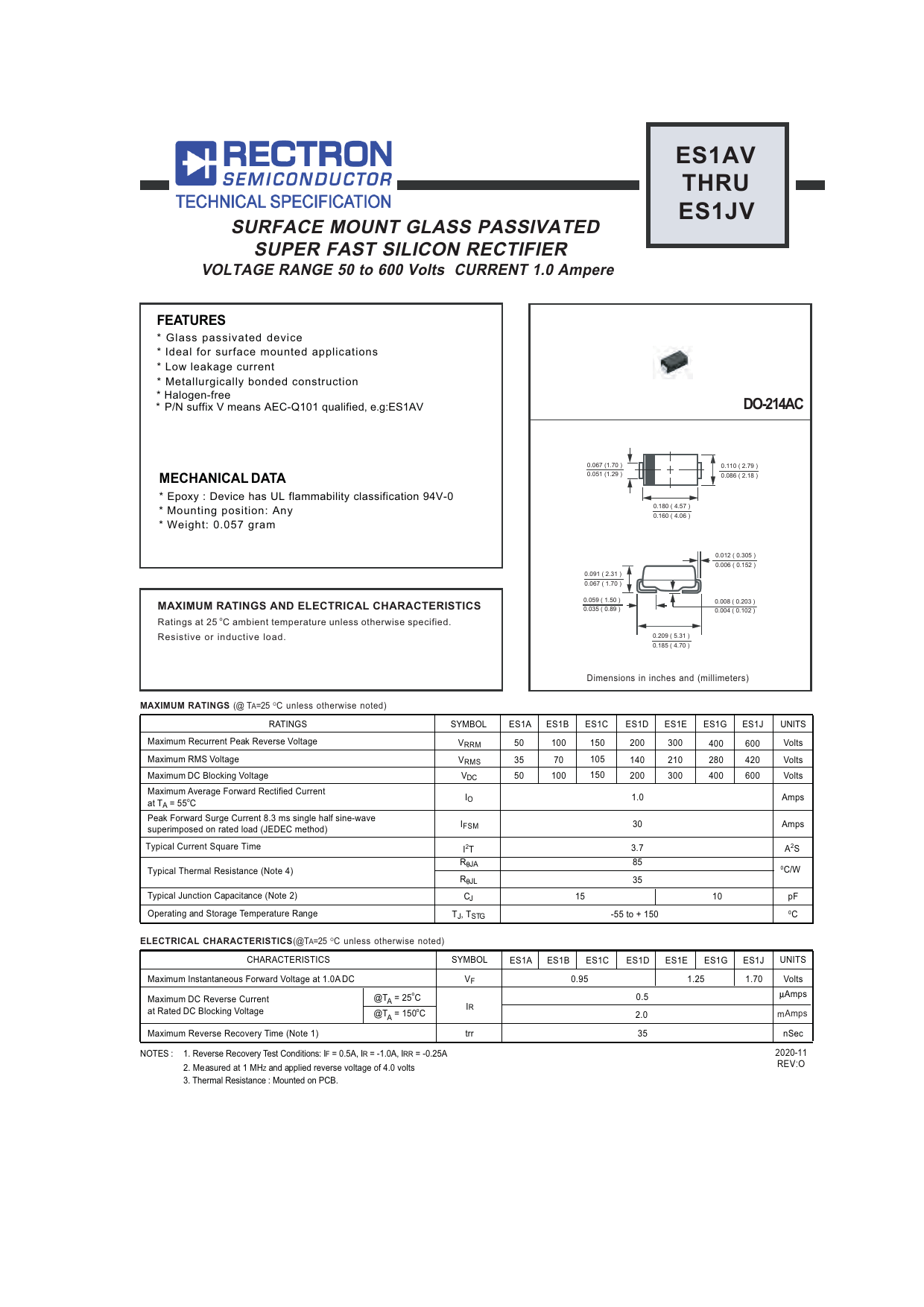

ES1AV. THRU. ES1JV. SURFACE MOUNT GLASS PASSIVATED. SUPER FAST SILICON RECTIFIER
Línea de modelo para esta hoja de datos
Versión de texto del documento
ES1AV THRU ES1JV SURFACE MOUNT GLASS PASSIVATED SUPER FAST SILICON RECTIFIER VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere FEATURES
* Glass passivated device * Ideal for surface mounted applications * Low leakage current * Metallurgically bonded construction * Halogen-free * P/N suffix V means AEC-Q101 qualified, e.g:ES1AV
DO-214AC
0.067 (1.70 ) 0.110 ( 2.79 )
MECHANICAL DATA
0.051 (1.29 ) 0.086 ( 2.18 ) * Epoxy : Device has UL flammability classification 94V-0 * Mounting position: Any 0.180 ( 4.57 ) 0.160 ( 4.06 ) * Weight: 0.057 gram 0.012 ( 0.305 ) 0.006 ( 0.152 ) 0.091 ( 2.31 ) 0.067 ( 1.70 ) 0.059 ( 1.50 )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
0.008 ( 0.203 ) 0.035 ( 0.89 ) 0.004 ( 0.102 ) Ratings at 25 oC ambient temperature unless otherwise specified. Resistive or inductive load. 0.209 ( 5.31 ) 0.185 ( 4.70 ) Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ TA=25 OC unless otherwise noted) RATINGS SYMBOL ES1A ES1B ES1C ES1D ES1E ES1G ES1J UNITS Maximum Recurrent Peak Reverse Voltage VRRM 50 100 150 200 300 400 600 Volts Maximum RMS Voltage VRMS 35 70 105 140 210 280 420 Volts Maximum DC Blocking Voltage VDC 50 100 150 200 300 400 600 Volts Maximum Average Forward Rectified Current I 1.0 Amps at T O A = 55oC Peak Forward Surge Current 8.3 ms single half sine-wave I 30 Amps superimposed on rated load (JEDEC method) FSM Typical Current Square Time I2T 3.7 A2S R JA 85 Typical Thermal Resistance (Note 4) 0C/W R JL 35 Typical Junction Capacitance (Note 2) CJ 15 10 pF Operating and Storage Temperature Range T 0 J, TSTG -55 to + 150 C
ELECTRICAL CHARACTERISTICS
(@TA=25 OC unless otherwise noted) CHARACTERISTICS SYMBOL ES1A ES1B ES1C ES1D ES1E ES1G ES1J UNITS Maximum Instantaneous Forward Voltage at 1.0A DC VF 0.95 1.25 1.70 Volts @T 0.5 Amps Maximum DC Reverse Current A = 25oC IR at Rated DC Blocking Voltage @T mAmps A = 150oC 2.0 Maximum Reverse Recovery Time (Note 1) trr 35 nSec NOTES : 1. Reverse Recovery Test Conditions: IF = 0.5A, IR = -1.0A, IRR = -0.25A 2020-11 REV:O 2. Measured at 1 MHZ and applied reverse voltage of 4.0 volts 3. Thermal Resistance : Mounted on PCB.
* Glass passivated device * Ideal for surface mounted applications * Low leakage current * Metallurgically bonded construction * Halogen-free * P/N suffix V means AEC-Q101 qualified, e.g:ES1AV
DO-214AC
0.067 (1.70 ) 0.110 ( 2.79 )
MECHANICAL DATA
0.051 (1.29 ) 0.086 ( 2.18 ) * Epoxy : Device has UL flammability classification 94V-0 * Mounting position: Any 0.180 ( 4.57 ) 0.160 ( 4.06 ) * Weight: 0.057 gram 0.012 ( 0.305 ) 0.006 ( 0.152 ) 0.091 ( 2.31 ) 0.067 ( 1.70 ) 0.059 ( 1.50 )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
0.008 ( 0.203 ) 0.035 ( 0.89 ) 0.004 ( 0.102 ) Ratings at 25 oC ambient temperature unless otherwise specified. Resistive or inductive load. 0.209 ( 5.31 ) 0.185 ( 4.70 ) Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ TA=25 OC unless otherwise noted) RATINGS SYMBOL ES1A ES1B ES1C ES1D ES1E ES1G ES1J UNITS Maximum Recurrent Peak Reverse Voltage VRRM 50 100 150 200 300 400 600 Volts Maximum RMS Voltage VRMS 35 70 105 140 210 280 420 Volts Maximum DC Blocking Voltage VDC 50 100 150 200 300 400 600 Volts Maximum Average Forward Rectified Current I 1.0 Amps at T O A = 55oC Peak Forward Surge Current 8.3 ms single half sine-wave I 30 Amps superimposed on rated load (JEDEC method) FSM Typical Current Square Time I2T 3.7 A2S R JA 85 Typical Thermal Resistance (Note 4) 0C/W R JL 35 Typical Junction Capacitance (Note 2) CJ 15 10 pF Operating and Storage Temperature Range T 0 J, TSTG -55 to + 150 C
ELECTRICAL CHARACTERISTICS
(@TA=25 OC unless otherwise noted) CHARACTERISTICS SYMBOL ES1A ES1B ES1C ES1D ES1E ES1G ES1J UNITS Maximum Instantaneous Forward Voltage at 1.0A DC VF 0.95 1.25 1.70 Volts @T 0.5 Amps Maximum DC Reverse Current A = 25oC IR at Rated DC Blocking Voltage @T mAmps A = 150oC 2.0 Maximum Reverse Recovery Time (Note 1) trr 35 nSec NOTES : 1. Reverse Recovery Test Conditions: IF = 0.5A, IR = -1.0A, IRR = -0.25A 2020-11 REV:O 2. Measured at 1 MHZ and applied reverse voltage of 4.0 volts 3. Thermal Resistance : Mounted on PCB.
