9.2.2. Latch-type overcurrent protection operation. VIN. IOUT. OUT. FLAG
Línea de modelo para esta hoja de datos
Versión de texto del documento
TCKE6 Series

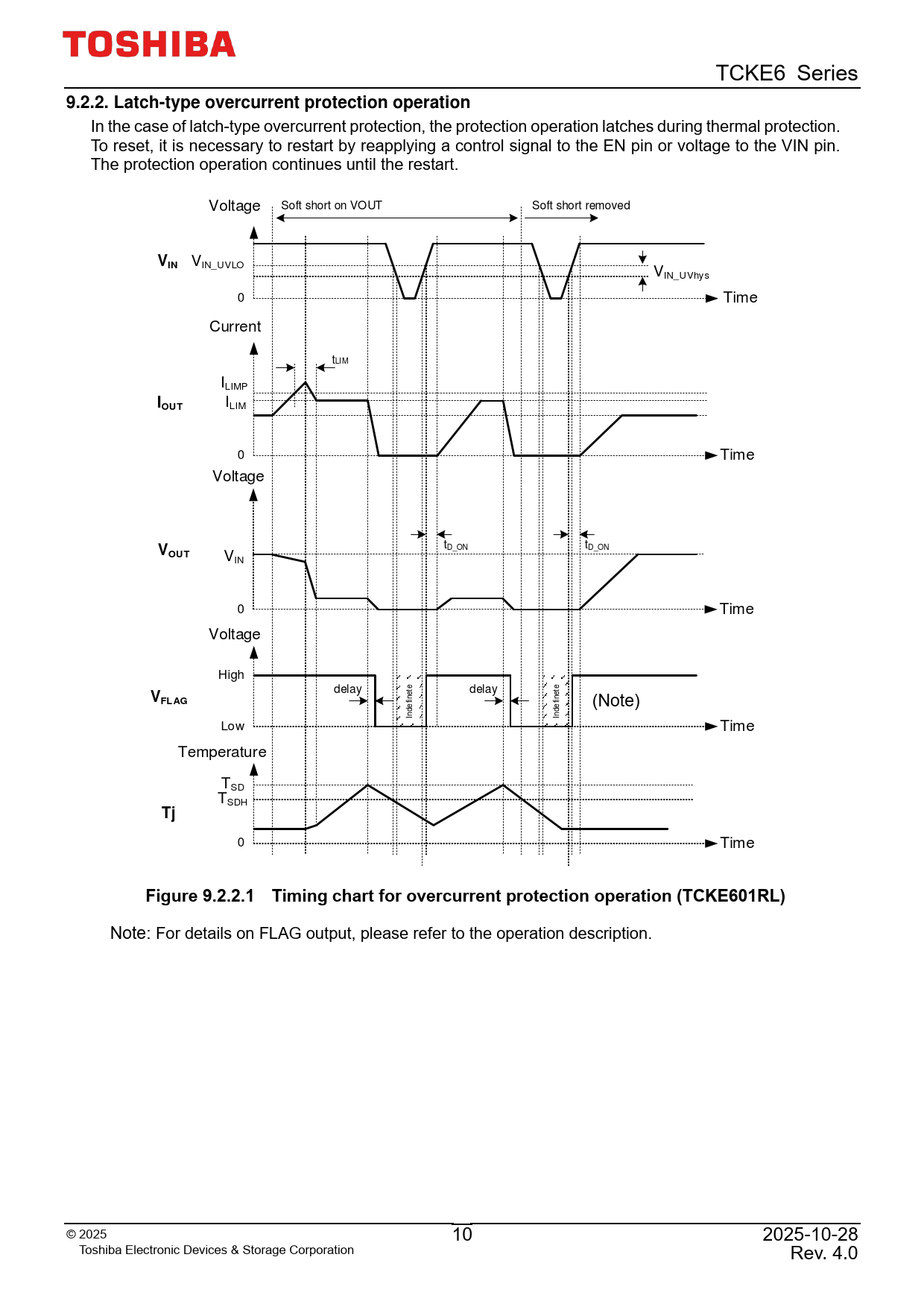

9.2.2. Latch-type overcurrent protection operation
In the case of latch-type overcurrent protection, the protection operation latches during thermal protection. To reset, it is necessary to restart by reapplying a control signal to the EN pin or voltage to the VIN pin. The protection operation continues until the restart. Voltage Soft short on VOUT Soft short removed
VIN
VIN_UVLO VIN_UVhys 0 Time Current tLIM ILIMP
IOUT
ILIM 0 Time Voltage
V
tD_ON tD_ON
OUT
VIN 0 Time Voltage High et et delay delay
V
e e
FLAG
ni n f if (Note) e e d d nI nI Low Time Temperature TSD TSDH
Tj
0 Time
Figure 9.2.2.1 Timing chart for overcurrent protection operation (TCKE601RL)
Note: For details on FLAG output, please refer to the operation description. © 2025 10 2025-10-28 Toshiba Electronic Devices & Storage Corporation Rev. 4.0
