Datasheet TCKE6 (Toshiba) - 3
| Fabricante | Toshiba |
| Descripción | 40 V, 2.5 A eFuse IC with Adjustable Overcurrent Protection in TSOP6F package |
| Páginas / Página | 26 / 3 — 3. Pin Assignments (Top View). Figure 3.1 Pin Assignments. Figure 3.2 Pin … |
| Formato / tamaño de archivo | PDF / 1.4 Mb |
| Idioma del documento | Inglés |

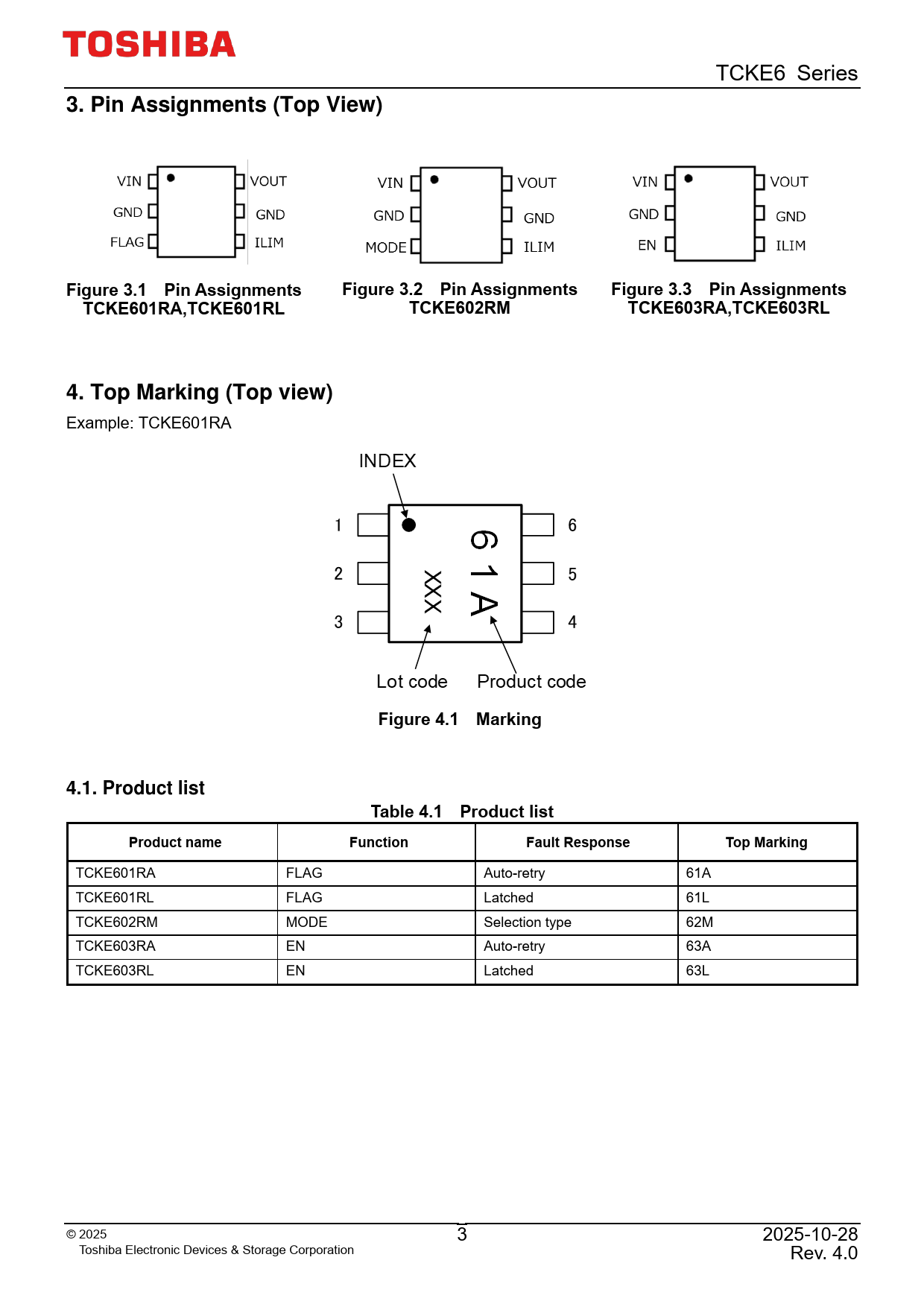

3. Pin Assignments (Top View). Figure 3.1 Pin Assignments. Figure 3.2 Pin Assignments. Figure 3.3 Pin Assignments
Línea de modelo para esta hoja de datos
Versión de texto del documento
TCKE6 Series
3. Pin Assignments (Top View) Figure 3.1 Pin Assignments Figure 3.2 Pin Assignments Figure 3.3 Pin Assignments TCKE601RA,TCKE601RL TCKE602RM TCKE603RA,TCKE603RL 4. Top Marking (Top view)
Example: TCKE601RA
Figure 4.1 Marking 4.1. Product list Table 4.1 Product list Product name Function Fault Response Top Marking
TCKE601RA FLAG Auto-retry 61A TCKE601RL FLAG Latched 61L TCKE602RM MODE Selection type 62M TCKE603RA EN Auto-retry 63A TCKE603RL EN Latched 63L © 2 025 3 2025-10-28 Toshiba Electronic Devices & Storage Corporation Rev. 4.0
