Datasheet 2N1613 (Philips) - 2
| Fabricante | Philips |
| Descripción | NPN medium power transistor in TO-39 package |
| Páginas / Página | 8 / 2 — Philips Semiconductors. Product specification. NPN medium power … |
| Formato / tamaño de archivo | PDF / 53 Kb |
| Idioma del documento | Inglés |
Philips Semiconductors. Product specification. NPN medium power transistor. 2N1613. FEATURES. PINNING. PIN. DESCRIPTION. APPLICATIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento

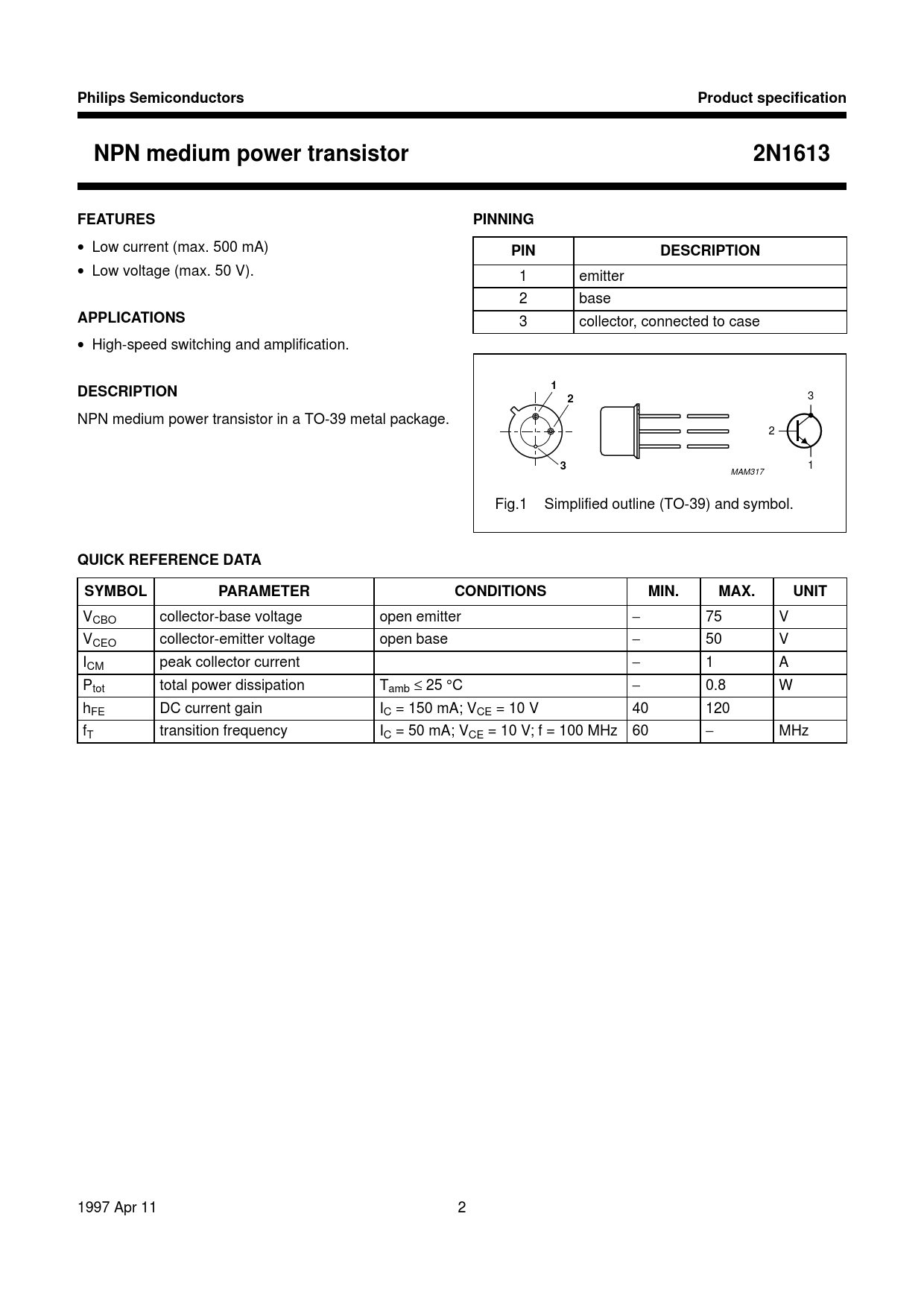

Philips Semiconductors Product specification NPN medium power transistor 2N1613 FEATURES PINNING
• Low current (max. 500 mA)
PIN DESCRIPTION
• Low voltage (max. 50 V). 1 emitter 2 base
APPLICATIONS
3 collector, connected to case • High-speed switching and amplification.
DESCRIPTION
handbook, halfpage
1
3
2
NPN medium power transistor in a TO-39 metal package. 2
3
1 MAM317 Fig.1 Simplified outline (TO-39) and symbol.
QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter − 75 V VCEO collector-emitter voltage open base − 50 V ICM peak collector current − 1 A Ptot total power dissipation Tamb ≤ 25 °C − 0.8 W hFE DC current gain IC = 150 mA; VCE = 10 V 40 120 fT transition frequency IC = 50 mA; VCE = 10 V; f = 100 MHz 60 − MHz 1997 Apr 11 2 Document Outline FEATURES APPLICATIONS DESCRIPTION PINNING QUICK REFERENCE DATA LIMITING VALUES THERMAL CHARACTERISTICS CHARACTERISTICS PACKAGE OUTLINE SOT5/11 DEFINITIONS LIFE SUPPORT APPLICATIONS
