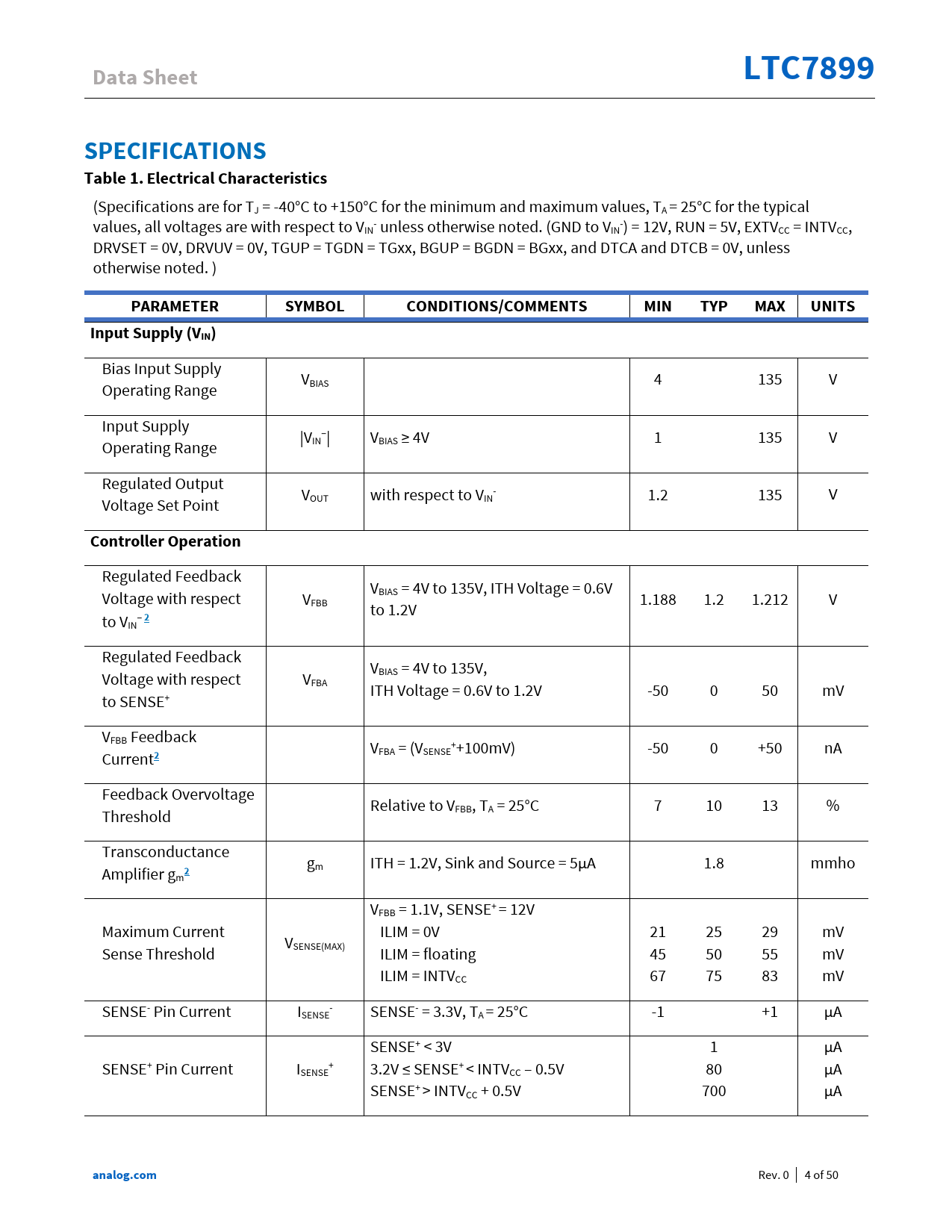

Data Sheet LTC7899 SPECIFICATIONS Table 1. Electrical Characteristics
(Specifications are for TJ = -40°C to +150°C for the minimum and maximum values, TA = 25°C for the typical values, all voltages are with respect to V - - IN unless otherwise noted. (GND to VIN ) = 12V, RUN = 5V, EXTVCC = INTVCC, DRVSET = 0V, DRVUV = 0V, TGUP = TGDN = TGxx, BGUP = BGDN = BGxx, and DTCA and DTCB = 0V, unless otherwise noted. )
PARAMETER SYMBOL CONDITIONS/COMMENTS MIN TYP MAX UNITS Input Supply (VIN)
Bias Input Supply V Operating Range BIAS 4 135 V Input Supply |V −| V Operating Range IN BIAS ≥ 4V 1 135 V Regulated Output V - 1.2 135 Voltage Set Point OUT with respect to VIN V
Controller Operation
Regulated Feedback V Voltage with respect V BIAS = 4V to 135V, ITH Voltage = 0.6V FBB 1.188 1.2 1.212 V to 1.2V to V −
2
IN Regulated Feedback V Voltage with respect V BIAS = 4V to 135V, FBA ITH Voltage = 0.6V to 1.2V -50 0 50 mV to SENSE+ VFBB Feedback V ++100mV) -50 0 +50 nA Current
2
FBA = (VSENSE Feedback Overvoltage Relative to V Threshold FBB, TA = 25°C 7 10 13 % Transconductance g Amplifier g
2
m ITH = 1.2V, Sink and Source = 5μA 1.8 mmho m VFBB = 1.1V, SENSE+ = 12V Maximum Current ILIM = 0V 21 25 29 mV V Sense Threshold SENSE(MAX) ILIM = floating 45 50 55 mV ILIM = INTVCC 67 75 83 mV SENSE- Pin Current I - SENSE SENSE- = 3.3V, TA = 25°C -1 +1 μA SENSE+ < 3V 1 μA SENSE+ Pin Current I + SENSE 3.2V ≤ SENSE+ < INTVCC – 0.5V 80 μA SENSE+ > INTVCC + 0.5V 700 μA
analog.com
Rev. 0 4 of 50 Document Outline Features Applications General Description Typical Application TABLE OF CONTENTS Revision History Specifications Absolute Maximum Ratings Pin Configurations and Function Descriptions Block Diagram Typical Performance Characteristics Theory of Operation Main Control Loop Power and Bias Supplies (VBIAS, EXTVCC, DRVCC, and INTVCC) High-Side Bootstrap Capacitor Dead Time Control (DTCA and DTCB Pins) Start-Up and Shutdown (RUN and SS Pins) Light Load Operation: Burst Mode Operation, Pulse-Skipping Mode, or Forced Continuous Mode (MODE Pin) Frequency Selection, Spread Spectrum, and Phase-Locked Loop (FREQ and PLLIN/SPREAD Pins) PolyPhase Applications (CLKOUT and PHASMD Pins) Output Overvoltage Protection Operation at Low Input Voltage BOOST Supply Refresh Power Good Applications Information Inductor Value Calculation Inductor Core Selection Current Sense Selection Low Value Resistor Current Sensing Inductor DCR Current Sensing Setting the Operating Frequency Selecting the Light Load Operating Mode Dead Time Control (DTCA and DTCB Pins) DTCx Pins Tied to INTVCC or VIN- (Adaptive Dead Time Control) DTCx pin connected with a resistor to VIN-: Power MOSFET Selection CIN and COUT Selection Setting the Output Voltage RUN Pin and Undervoltage Lockout Soft-Start (SS Pin) DRVCC and INTVCC Regulators (OPTI-DRIVE) Topside MOSFET Driver Supply (CB, DB) Minimum On-Time Considerations Fault Conditions: Overtemperature Protection Phase-Locked Loop and Frequency Synchronization Efficiency Considerations Checking Transient Response Design Example PC Board Layout Checklist PC Board Layout Debugging Typical Application Related Parts Outline Dimensions Ordering Guide
