Datasheet LTC7899 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 140V, Low IQ, Negative to Positive Synchronous Boost Controller with 10V Gate Drive in 28-Lead QFN (4mm x 4mm x 0.75mm w/ EP) package |
| Páginas / Página | 50 / 5 — Data Sheet. LTC7899. PARAMETER. SYMBOL. CONDITIONS/COMMENTS. MIN. TYP. … |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |
Data Sheet. LTC7899. PARAMETER. SYMBOL. CONDITIONS/COMMENTS. MIN. TYP. MAX. UNITS. DC Supply Current. Gate Drivers. analog.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8 link to page 8 link to page 8 link to page 8

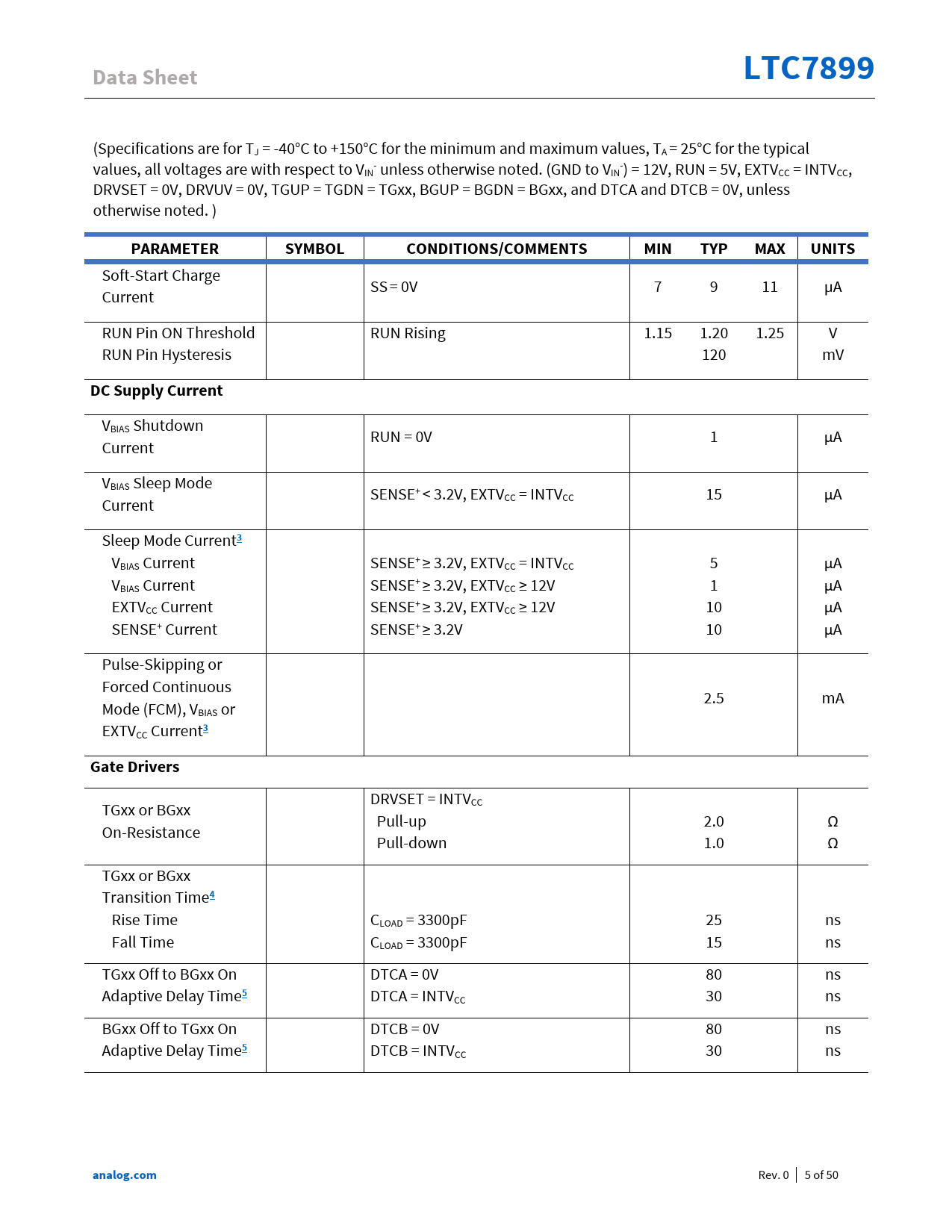

Data Sheet LTC7899
(Specifications are for TJ = -40°C to +150°C for the minimum and maximum values, TA = 25°C for the typical values, all voltages are with respect to V - - IN unless otherwise noted. (GND to VIN ) = 12V, RUN = 5V, EXTVCC = INTVCC, DRVSET = 0V, DRVUV = 0V, TGUP = TGDN = TGxx, BGUP = BGDN = BGxx, and DTCA and DTCB = 0V, unless otherwise noted. )
PARAMETER SYMBOL CONDITIONS/COMMENTS MIN TYP MAX UNITS
Soft-Start Charge SS Current = 0V 7 9 11 µA RUN Pin ON Threshold RUN Rising 1.15 1.20 1.25 V RUN Pin Hysteresis 120 mV
DC Supply Current
VBIAS Shutdown RUN = 0V 1 Current μA VBIAS Sleep Mode SENSE+ Current < 3.2V, EXTVCC = INTVCC 15 μA Sleep Mode Current
3
VBIAS Current SENSE+ ≥ 3.2V, EXTVCC = INTVCC 5 μA VBIAS Current SENSE+ ≥ 3.2V, EXTVCC ≥ 12V 1 μA EXTVCC Current SENSE+ ≥ 3.2V, EXTVCC ≥ 12V 10 μA SENSE+ Current SENSE+ ≥ 3.2V 10 μA Pulse-Skipping or Forced Continuous 2.5 mA Mode (FCM), VBIAS or EXTVCC Current
3 Gate Drivers
DRVSET = INTV TGxx or BGxx CC Pull-up 2.0 On-Resistance Ω Pull-down 1.0 Ω TGxx or BGxx Transition Time
4
Rise Time CLOAD = 3300pF 25 ns Fall Time CLOAD = 3300pF 15 ns TGxx Off to BGxx On DTCA = 0V 80 ns Adaptive Delay Time
5
DTCA = INTVCC 30 ns BGxx Off to TGxx On DTCB = 0V 80 ns Adaptive Delay Time
5
DTCB = INTVCC 30 ns
