Datasheet UU10LF (Sumida)
| Fabricante | Sumida |
| Descripción | AC Common Mode Coil in Vertical, 4 PC Pin package |
| Páginas / Página | 2 / 1 — Product Description. Feature. Dimensions (mm). UU10LF. UU10LFB. … |
| Formato / tamaño de archivo | PDF / 146 Kb |
| Idioma del documento | Inglés |
Product Description. Feature. Dimensions (mm). UU10LF. UU10LFB. www.sumida.com
Línea de modelo para esta hoja de datos
Versión de texto del documento

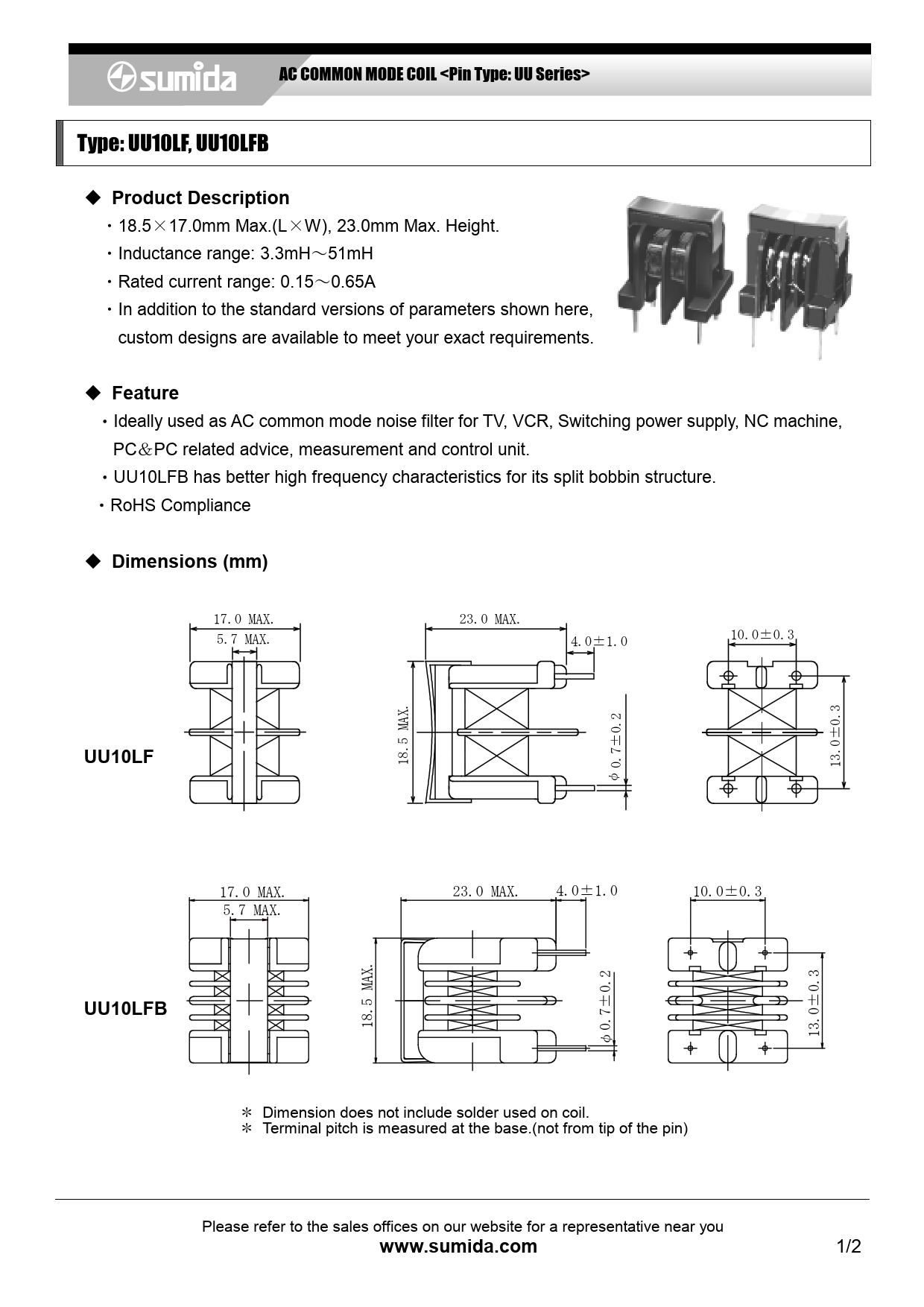

AC COMMON MODE COIL <Pin Type: UU Series> Type: UU10LF, UU10LFB ◆
Product Description
・18.5×17.0mm Max.(L×W), 23.0mm Max. Height. ・Inductance range: 3.3mH～51mH ・Rated current range: 0.15～0.65A ・In addition to the standard versions of parameters shown here, custom designs are available to meet your exact requirements. ◆
Feature
・Ideally used as AC common mode noise filter for TV, VCR, Switching power supply, NC machine, PC＆PC related advice, measurement and control unit. ・UU10LFB has better high frequency characteristics for its split bobbin structure. ・RoHS Compliance ◆
Dimensions (mm)
17.0 MAX. 23.0 MAX. 5.7 MAX. 4.0±1.0 10.0±0.3 3 2 MAX. ±0. ±0. .5
UU10LF
18 0.7 13.0 φ 17.0 MAX. 23.0 MAX. 4.0±1.0 10.0±0.3 5.7 MAX. 2 3 . MAX. 5
UU10LFB
.7±0 .0±0 18. 13 φ0 ＊ Dimension does not include solder used on coil. ＊ Terminal pitch is measured at the base.(not from tip of the pin) Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
