Datasheet UU10LF (Sumida) - 2
| Fabricante | Sumida |
| Descripción | AC Common Mode Coil in Vertical, 4 PC Pin package |
| Páginas / Página | 2 / 2 — Schematics (Bottom). Specification (UU10LF). Specification (UU10LFB). … |
| Formato / tamaño de archivo | PDF / 146 Kb |
| Idioma del documento | Inglés |
Schematics (Bottom). Specification (UU10LF). Specification (UU10LFB). www.sumida.com
Línea de modelo para esta hoja de datos
Versión de texto del documento

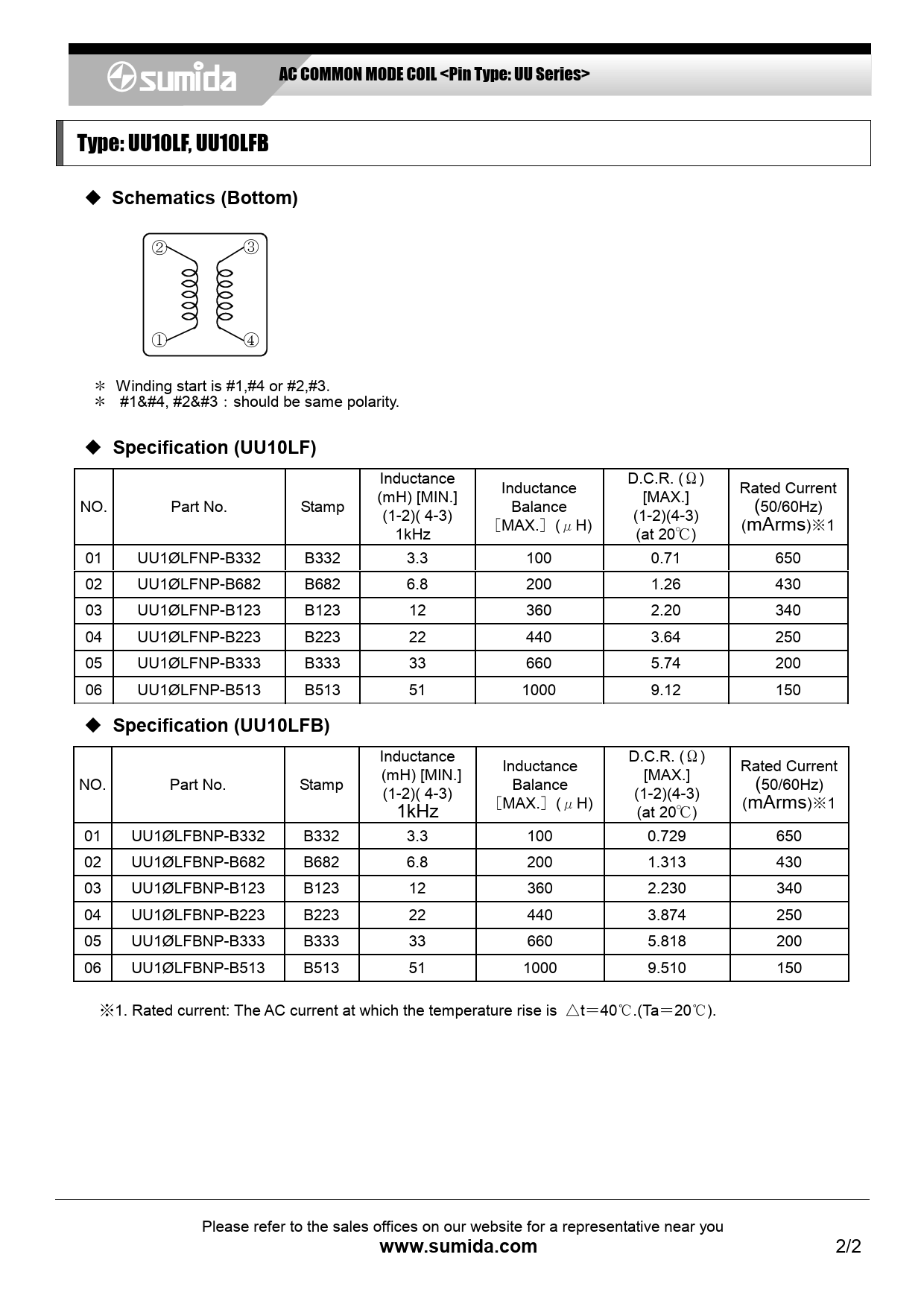

AC COMMON MODE COIL <Pin Type: UU Series> Type: UU10LF, UU10LFB ◆
Schematics (Bottom)
② ③ ① ④ ＊ Winding start is #1,#4 or #2,#3． ＊ #1, #2：should be same polarity. ◆
Specification (UU10LF)
Inductance D.C.R. (Ω) Inductance Rated Current (mH) [MIN.] [MAX.] NO. Part No. Stamp Balance (50/60Hz) (1-2)( 4-3) (1-2)(4-3) ［MAX.］(μH) (mArms)※1 1kHz (at 20℃) 01 UU1ØLFNP-B332 B332 3.3 100 0.71 650 02 UU1ØLFNP-B682 B682 6.8 200 1.26 430 03 UU1ØLFNP-B123 B123 12 360 2.20 340 04 UU1ØLFNP-B223 B223 22 440 3.64 250 05 UU1ØLFNP-B333 B333 33 660 5.74 200 06 UU1ØLFNP-B513 B513 51 1000 9.12 150 ◆
Specification (UU10LFB)
Inductance D.C.R. (Ω) Inductance Rated Current (mH) [MIN.] [MAX.] NO. Part No. Stamp Balance (50/60Hz) (1-2)( 4-3) (1-2)(4-3) 1kHz ［MAX.］(μH) (mArms)※1 (at 20℃) 01 UU1ØLFBNP-B332 B332 3.3 100 0.729 650 02 UU1ØLFBNP-B682 B682 6.8 200 1.313 430 03 UU1ØLFBNP-B123 B123 12 360 2.230 340 04 UU1ØLFBNP-B223 B223 22 440 3.874 250 05 UU1ØLFBNP-B333 B333 33 660 5.818 200 06 UU1ØLFBNP-B513 B513 51 1000 9.510 150 ※1. Rated current: The AC current at which the temperature rise is △t＝40℃.(Ta＝20℃). Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
