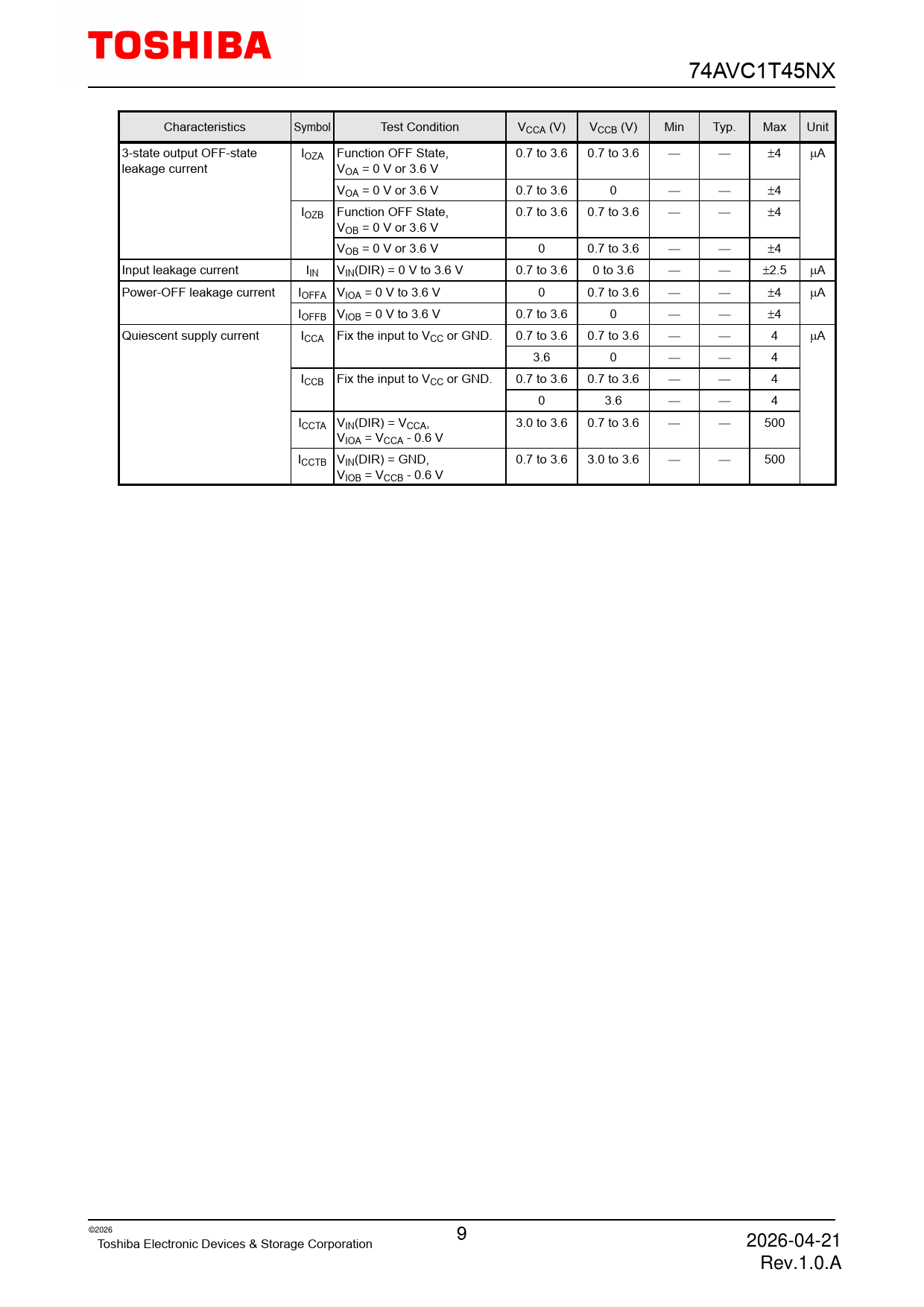

Datasheet 74AVC1T45NX (Toshiba) - 9

74AVC1T45NX Characteristics Symbol Test Condition VCCA (V) VCCB (V) Min Typ. Max Unit 3-state output OFF-state IOZA Function OFF State, 0.7 to 3.6 0.7 to 3.6 � � ±4 µA leakage current VOA = 0 V or 3.6 V VOA = 0 V or 3.6 V 0.7 to 3.6 0 � � ±4 IOZB Function OFF State, 0.7 to 3.6 0.7 to 3.6 � � ±4 VOB = 0 V or 3.6 V VOB = 0 V or 3.6 V 0 0.7 to 3.6 � � ±4 Input leakage current IIN VIN(DIR) = 0 V to 3.6 V 0.7 to 3.6 0 to 3.6 � � ±2.5 µA Power-OFF leakage current IOFFA VIOA = 0 V to 3.6 V 0 0.7 to 3.6 � � ±4 µA IOFFB VIOB = 0 V to 3.6 V 0.7 to 3.6 0 � � ±4 Quiescent supply current ICCA Fix the input to VCC or GND. 0.7 to 3.6 0.7 to 3.6 � � 4 µA 3.6 0 � � 4 ICCB Fix the input to VCC or GND. 0.7 to 3.6 0.7 to 3.6 � � 4 0 3.6 � � 4 ICCTA VIN(DIR) = VCCA, 3.0 to 3.6 0.7 to 3.6 � � 500 VIOA = VCCA - 0.6 V ICCTB VIN(DIR) = GND, 0.7 to 3.6 3.0 to 3.6 � � 500 VIOB = VCCB - 0.6 V ©2026 9 Toshiba Electronic Devices & Storage Corporation 2026-04-21 Rev.1.0.A
