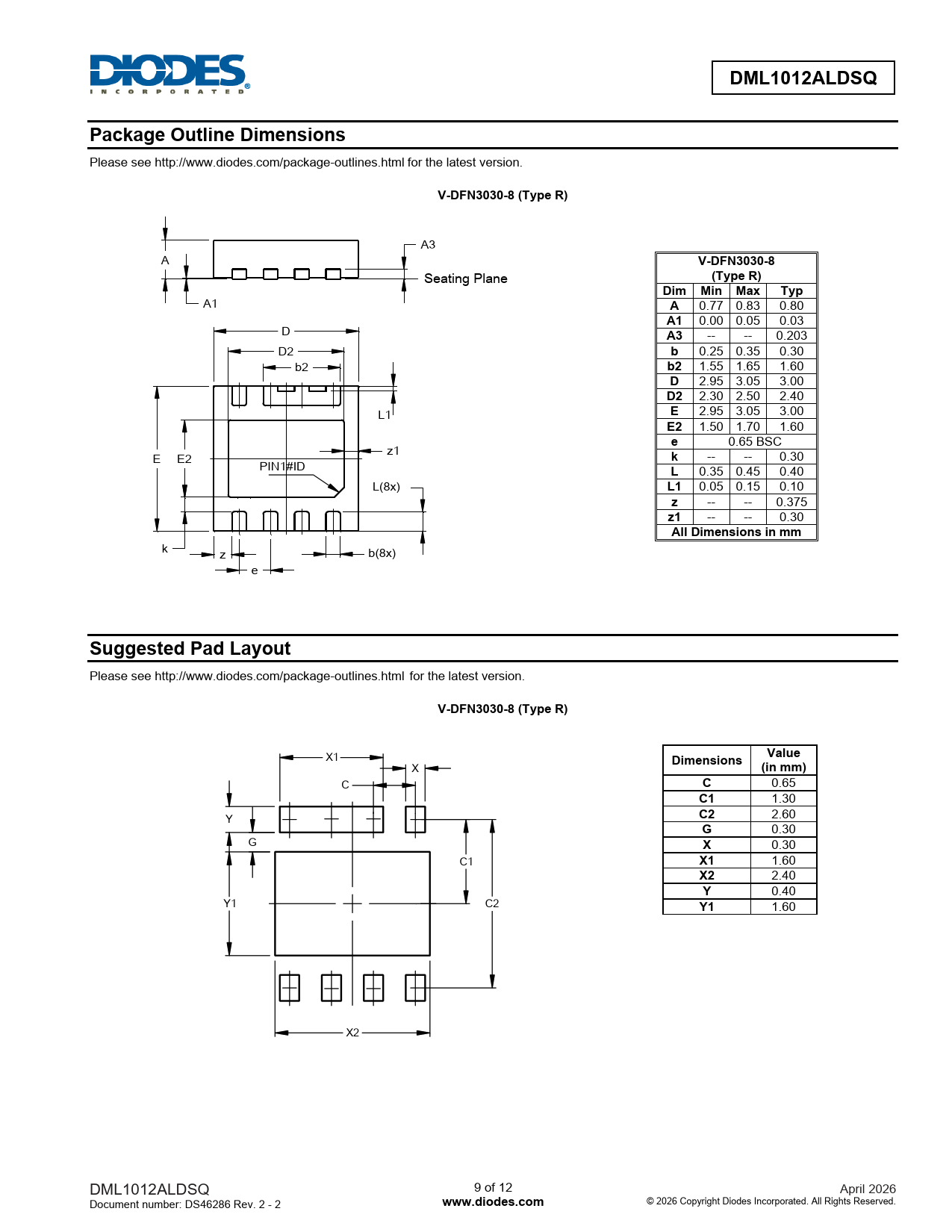

DML1012ALDSQ Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
V-DFN3030-8 (Type R)
A3 A
V-DFN3030-8
Seating Plane
(Type R) Dim Min Max Typ
A1
A
0.77 0.83 0.80
A1
0.00 0.05 0.03 D
A3
-- -- 0.203 D2
b
0.25 0.35 0.30 b2
b2
1.55 1.65 1.60
D
2.95 3.05 3.00
D2
2.30 2.50 2.40 L1
E
2.95 3.05 3.00
E2
1.50 1.70 1.60
e
0.65 BSC z1 E E2
k
-- -- 0.30 PIN1#ID
L
0.35 0.45 0.40 L(8x)
L1
0.05 0.15 0.10
z
-- -- 0.375
z1
-- -- 0.30
All Dimensions in mm
k z b(8x) e
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
V-DFN3030-8 (Type R)
X1
Value Dimensions
X
(in mm)
C
C
0.65
C1
1.30 Y
C2
2.60
G
0.30 G
X
0.30 C1
X1
1.60
X2
2.40
Y
0.40 Y1 C2
Y1
1.60 X2 DML1012ALDSQ 9 of 12 April 2026 Document number: DS46286 Rev. 2 - 2
