XC8115/XC8116 Series

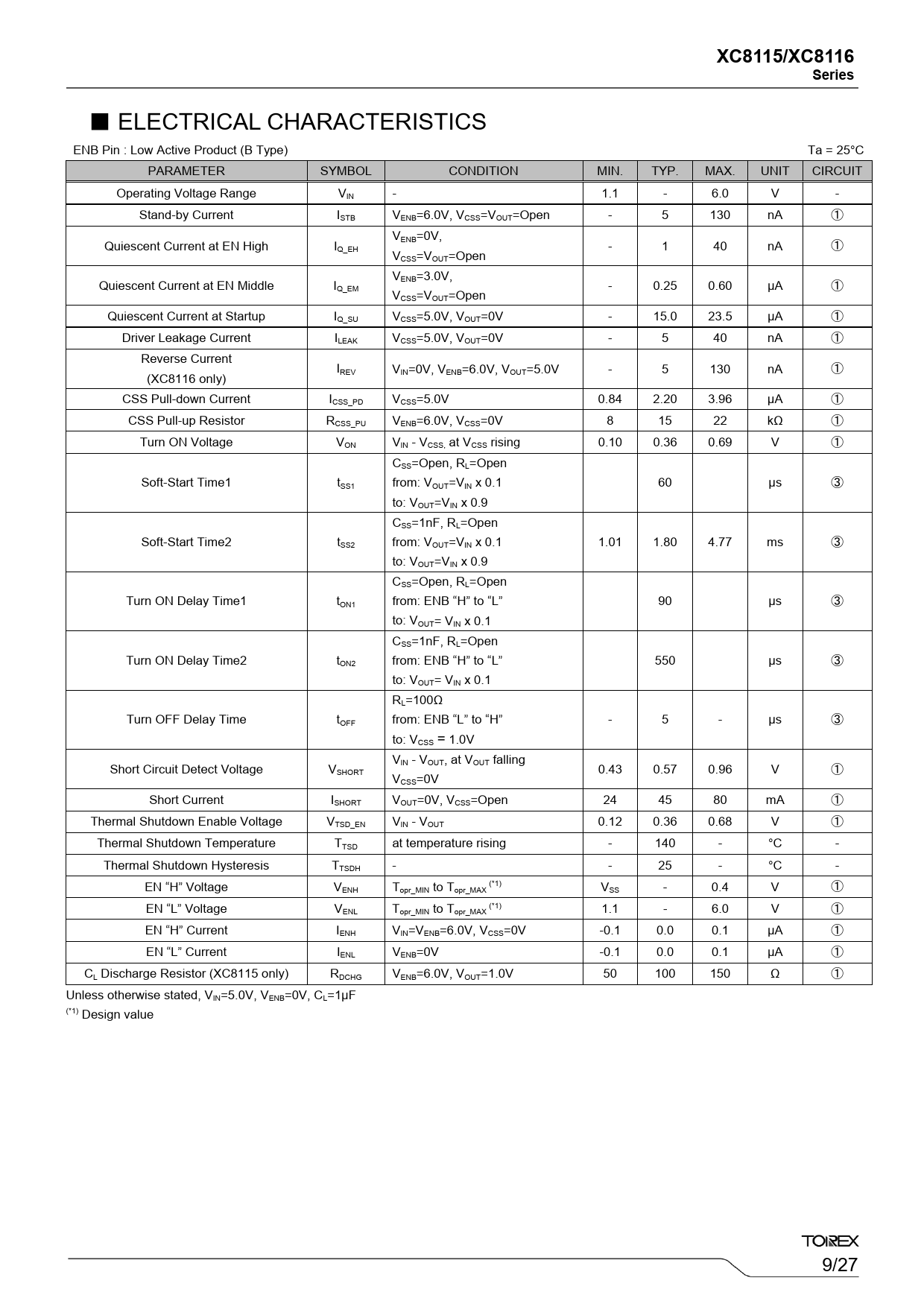

■ ELECTRICAL CHARACTERISTICS ENB Pin : Low Active Product (B Type) Ta = 25°C PARAMETER SYMBOL CONDITION MIN. TYP. MAX. UNIT CIRCUIT Operating Voltage Range VIN - 1.1 - 6.0 V - Stand-by Current ISTB VENB=6.0V, VCSS=VOUT=Open - 5 130 nA ① V Quiescent Current at EN High I ENB=0V, Q_EH - 1 40 nA ① VCSS=VOUT=Open V Quiescent Current at EN Middle I ENB=3.0V, Q_EM - 0.25 0.60 μA ① VCSS=VOUT=Open Quiescent Current at Startup IQ_SU VCSS=5.0V, VOUT=0V - 15.0 23.5 μA ① Driver Leakage Current ILEAK VCSS=5.0V, VOUT=0V - 5 40 nA ① Reverse Current I (XC8116 only) REV VIN=0V, VENB=6.0V, VOUT=5.0V - 5 130 nA ① CSS Pul -down Current ICSS_PD VCSS=5.0V 0.84 2.20 3.96 μA ① CSS Pull-up Resistor RCSS_PU VENB=6.0V, VCSS=0V 8 15 22 kΩ ① Turn ON Voltage VON VIN - VCSS, at VCSS rising 0.10 0.36 0.69 V ① CSS=Open, RL=Open Soft-Start Time1 tSS1 from: VOUT=VIN x 0.1 60 μs ③ to: VOUT=VIN x 0.9 CSS=1nF, RL=Open Soft-Start Time2 tSS2 from: VOUT=VIN x 0.1 1.01 1.80 4.77 ms ③ to: VOUT=VIN x 0.9 CSS=Open, RL=Open Turn ON Delay Time1 tON1 from: ENB “H” to “L” 90 μs ③ to: VOUT= VIN x 0.1 CSS=1nF, RL=Open Turn ON Delay Time2 tON2 from: ENB “H” to “L” 550 μs ③ to: VOUT= VIN x 0.1 RL=100Ω Turn OFF Delay Time tOFF from: ENB “L” to “H” - 5 - μs ③ to: VCSS = 1.0V V Short Circuit Detect Voltage V IN - VOUT, at VOUT falling SHORT 0.43 0.57 0.96 V ① VCSS=0V Short Current ISHORT VOUT=0V, VCSS=Open 24 45 80 mA ① Thermal Shutdown Enable Voltage VTSD_EN VIN - VOUT 0.12 0.36 0.68 V ① Thermal Shutdown Temperature TTSD at temperature rising - 140 - °C - Thermal Shutdown Hysteresis TTSDH - - 25 - °C - EN “H” Voltage V (*1) ENH Topr_MIN to Topr_MAX VSS - 0.4 V ① EN “L” Voltage V (*1) ENL Topr_MIN to Topr_MAX 1.1 - 6.0 V ① EN “H” Current IENH VIN=VENB=6.0V, VCSS=0V -0.1 0.0 0.1 μA ① EN “L” Current IENL VENB=0V -0.1 0.0 0.1 μA ① CL Discharge Resistor (XC8115 only) RDCHG VENB=6.0V, VOUT=1.0V 50 100 150 Ω ① Unless otherwise stated, VIN=5.0V, VENB=0V, CL=1μF (*1) Design value 9/27 Document Outline ■ GENERAL DESCRIPTION ■ APPLICATIONS ■ FEATURES ■ TYPICAL APPLICATION CIRCUIT ■ BLOCK DIAGRAM ■ PRODUCT CLASSIFICATION ■ PIN CONFIGURATION ■ PIN ASSIGNMENT ■ PIN FUNCTIONS ASSIGNMENT ■ ABSOLUTE MAXIMUM RATINGS ■ Recommended Operating Conditions ■ ELECTRICAL CHARACTERISTICS ■ ELECTRICAL CHARACTERISTICS ■ ELECTRICAL CHARACTERISTICS ■ ELECTRICAL CHARACTERISTICS ■ TEST CIRCUITS ■ OPERATIONAL EXPLANATION ■ Application Circuit Examples <Power Multiplexer> ■ OPERATIONAL EXPLNATION ■ OPERATIONAL EXPLNATION <Enable function> ■ OPERATIONAL EXPLANATION <Startup Mode / Soft-Start> ■ OPERATIONAL EXPLANATION ■ OPERATIONAL EXPLANATION < Thermal shutdown > < Short-Circuit Protection > ■ OPERATIONAL EXPLANATION < CL Discharge Function > * XC8115 series only < Reverse current protection function > ■ NOTES ON USE ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ PACKAGING INFORMATION ■ Marking
