Datasheet 1N4739A (Nexperia) - 5
| Fabricante | Nexperia |
| Descripción | Voltage regulator diodes in SOD66 (DO-41) packages |
| Páginas / Página | 10 / 5 — Nexperia. 1N4728A to 1N4749A. Voltage regulator diodes. Fig 2. Forward … |
| Formato / tamaño de archivo | PDF / 218 Kb |
| Idioma del documento | Inglés |

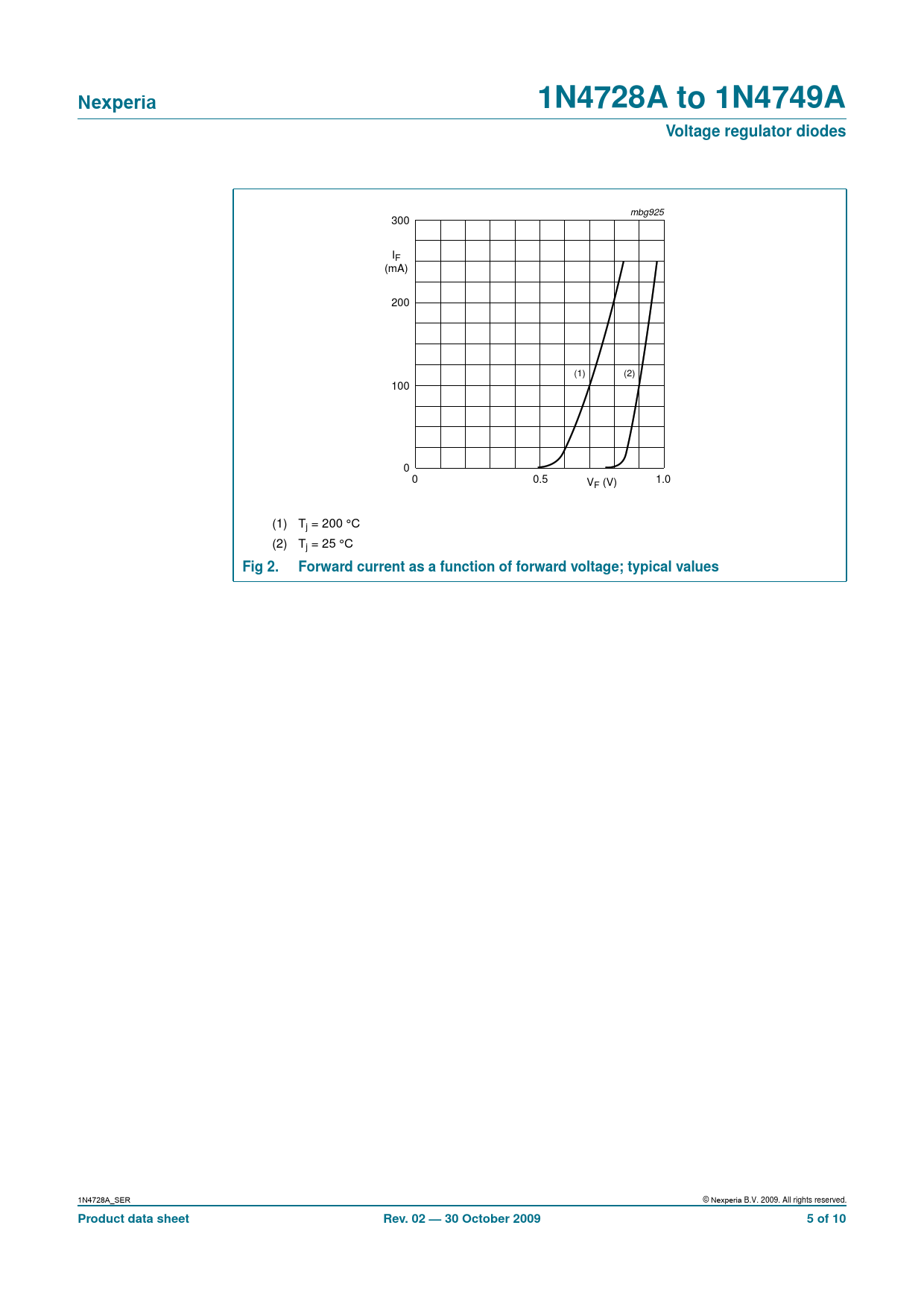

Nexperia. 1N4728A to 1N4749A. Voltage regulator diodes. Fig 2. Forward current as a function of forward voltage; typical values
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia 1N4728A to 1N4749A Voltage regulator diodes
mbg925 300 IF (mA) 200 (1) (2) 100 0 0 0.5 1.0 VF (V) (1) Tj = 200 °C (2) Tj = 25 °C
Fig 2. Forward current as a function of forward voltage; typical values
1N4728A_SER © Nexperia B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 30 October 2009 5 of 10
