Datasheet 1N4739A (Nexperia) - 6
| Fabricante | Nexperia |
| Descripción | Voltage regulator diodes in SOD66 (DO-41) packages |
| Páginas / Página | 10 / 6 — Nexperia. 1N4728A to 1N4749A. Voltage regulator diodes. Package outline |
| Formato / tamaño de archivo | PDF / 218 Kb |
| Idioma del documento | Inglés |
Nexperia. 1N4728A to 1N4749A. Voltage regulator diodes. Package outline
Línea de modelo para esta hoja de datos
Versión de texto del documento

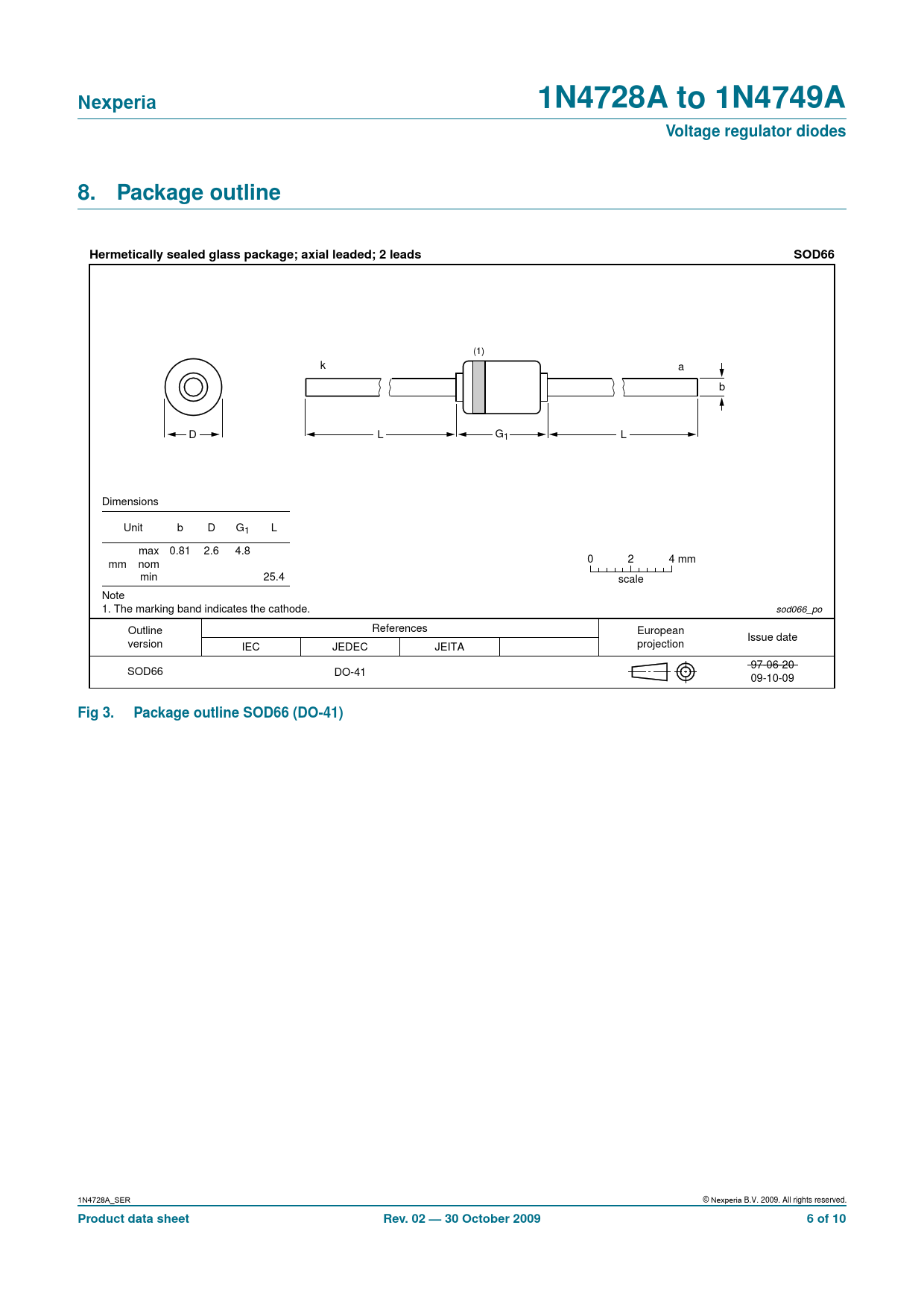

Nexperia 1N4728A to 1N4749A Voltage regulator diodes 8. Package outline Hermetically sealed glass package; axial leaded; 2 leads SOD66
(1) k a b D L G1 L Dimensions Unit b D G1 L max 0.81 2.6 4.8 mm nom 0 2 4 mm min 25.4 scale Note 1. The marking band indicates the cathode. sod066_po References Outline European Issue date version projection IEC JEDEC JEITA 97-06-20 SOD66 DO-41 09-10-09
Fig 3. Package outline SOD66 (DO-41)
1N4728A_SER © Nexperia B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 30 October 2009 6 of 10
Document Outline 1. Product profile 1.1 General description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Package outline 9. Packing information 10. Revision history 11. Legal information 11.1 Data sheet status 11.2 Definitions 11.3 Disclaimers 11.4 Trademarks 12. Contents
