Datasheet RA (Fujitsu) - 3
| Fabricante | Fujitsu |
| Descripción | Miniature Relay 2 Poles-1 to 2 A for Signal Switching |
| Páginas / Página | 6 / 3 — RA SERIES. COIL DATA CHART. Nominal. Coil resistance. Must operate. Must … |
| Formato / tamaño de archivo | PDF / 187 Kb |
| Idioma del documento | Inglés |

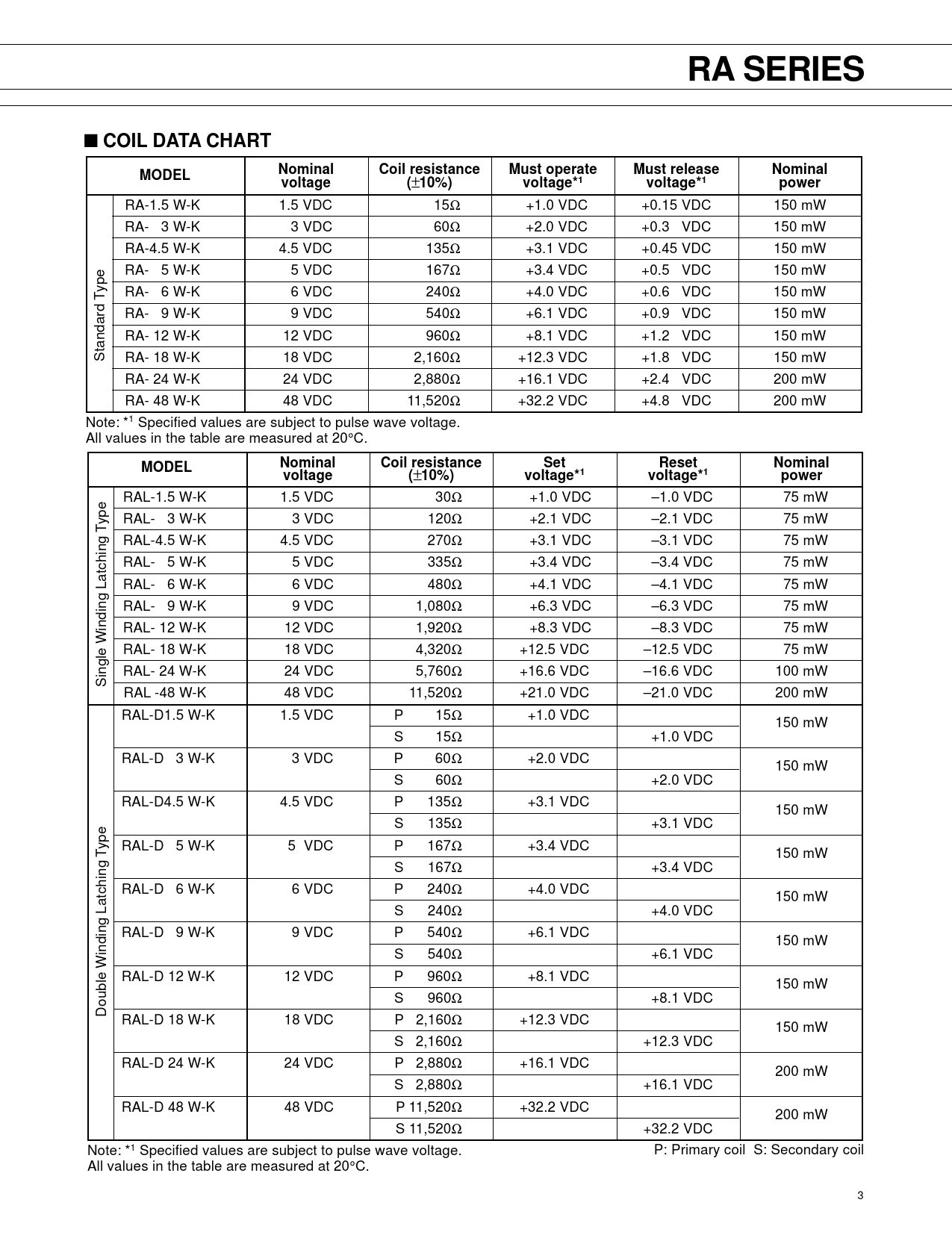

RA SERIES. COIL DATA CHART. Nominal. Coil resistance. Must operate. Must release. MODEL. voltage. 10%). voltage*1. power. Set. Reset
Línea de modelo para esta hoja de datos
Versión de texto del documento
RA SERIES
■
COIL DATA CHART Nominal Coil resistance Must operate Must release Nominal MODEL voltage (
±
10%) voltage*1 voltage*1 power
RA-1.5 W-K 1.5 VDC 15Ω +1.0 VDC +0.15 VDC 150 mW RA- 3 W-K 3 VDC 60Ω +2.0 VDC +0.3 VDC 150 mW RA-4.5 W-K 4.5 VDC 135Ω +3.1 VDC +0.45 VDC 150 mW RA- 5 W-K 5 VDC 167Ω +3.4 VDC +0.5 VDC 150 mW ype RA- 6 W-K 6 VDC 240Ω +4.0 VDC +0.6 VDC 150 mW RA- 9 W-K 9 VDC 540Ω +6.1 VDC +0.9 VDC 150 mW RA- 12 W-K 12 VDC 960Ω +8.1 VDC +1.2 VDC 150 mW Standard T RA- 18 W-K 18 VDC 2,160Ω +12.3 VDC +1.8 VDC 150 mW RA- 24 W-K 24 VDC 2,880Ω +16.1 VDC +2.4 VDC 200 mW RA- 48 W-K 48 VDC 11,520Ω +32.2 VDC +4.8 VDC 200 mW Note: *1 Specified values are subject to pulse wave voltage. All values in the table are measured at 20°C.
Nominal Coil resistance Set Reset Nominal MODEL voltage (
±
10%) voltage*1 voltage*1 power
RAL-1.5 W-K 1.5 VDC 30Ω +1.0 VDC –1.0 VDC 75 mW ype RAL- 3 W-K 3 VDC 120Ω +2.1 VDC –2.1 VDC 75 mW T RAL-4.5 W-K 4.5 VDC 270Ω +3.1 VDC –3.1 VDC 75 mW RAL- 5 W-K 5 VDC 335Ω +3.4 VDC –3.4 VDC 75 mW RAL- 6 W-K 6 VDC 480Ω +4.1 VDC –4.1 VDC 75 mW RAL- 9 W-K 9 VDC 1,080Ω +6.3 VDC –6.3 VDC 75 mW RAL- 12 W-K 12 VDC 1,920Ω +8.3 VDC –8.3 VDC 75 mW RAL- 18 W-K 18 VDC 4,320Ω +12.5 VDC –12.5 VDC 75 mW RAL- 24 W-K 24 VDC 5,760Ω +16.6 VDC –16.6 VDC 100 mW Single Winding Latching RAL -48 W-K 48 VDC 11,520Ω +21.0 VDC –21.0 VDC 200 mW RAL-D1.5 W-K 1.5 VDC P 15Ω +1.0 VDC 150 mW S 15Ω +1.0 VDC RAL-D 3 W-K 3 VDC P 60Ω +2.0 VDC 150 mW S 60Ω +2.0 VDC RAL-D4.5 W-K 4.5 VDC P 135Ω +3.1 VDC 150 mW S 135Ω +3.1 VDC ype RAL-D 5 W-K 5 VDC P 167Ω +3.4 VDC T 150 mW S 167Ω +3.4 VDC RAL-D 6 W-K 6 VDC P 240Ω +4.0 VDC 150 mW S 240Ω +4.0 VDC RAL-D 9 W-K 9 VDC P 540Ω +6.1 VDC 150 mW S 540Ω +6.1 VDC RAL-D 12 W-K 12 VDC P 960Ω +8.1 VDC 150 mW S 960Ω +8.1 VDC Double Winding Latching RAL-D 18 W-K 18 VDC P 2,160Ω +12.3 VDC 150 mW S 2,160Ω +12.3 VDC RAL-D 24 W-K 24 VDC P 2,880Ω +16.1 VDC 200 mW S 2,880Ω +16.1 VDC RAL-D 48 W-K 48 VDC P 11,520Ω +32.2 VDC 200 mW S 11,520Ω +32.2 VDC Note: *1 Specified values are subject to pulse wave voltage. P: Primary coil S: Secondary coil All values in the table are measured at 20°C. 3
■
