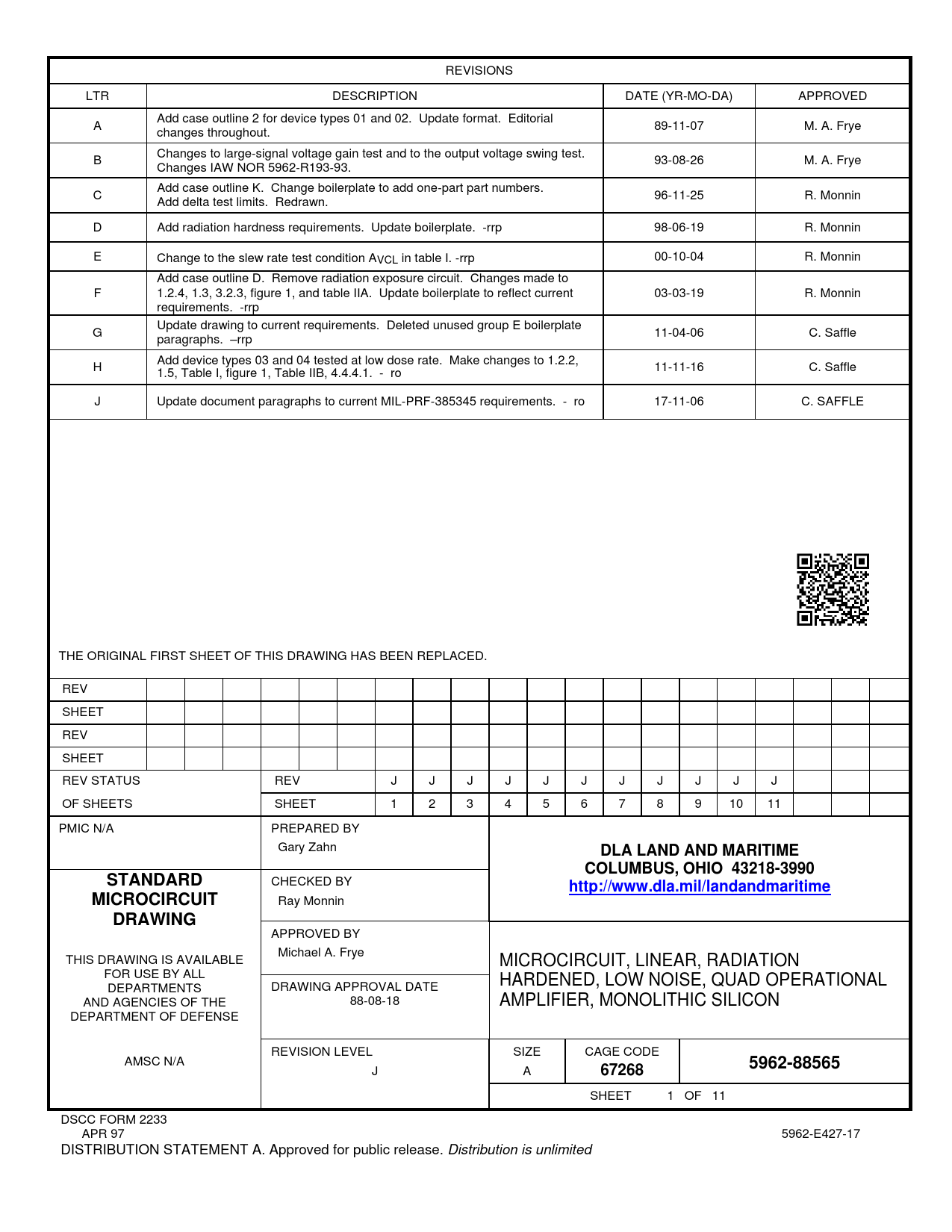

DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. http://www.dla.mil/landandmaritime. MICROCIRCUIT. DRAWING. 5962-88565

Datasheet OP471 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

REVISIONS LTR DESCRIPTION DATE (YR-MO-DA) APPROVED Add case outline 2 for device types 01 and 02. Update format. Editorial A 89-11-07 M. A. Frye changes throughout. Changes to large-signal voltage gain test and to the output voltage swing test. B 93-08-26 M. A. Frye Changes IAW NOR 5962-R193-93. Add case outline K. Change boilerplate to add one-part part numbers. C 96-11-25 R. Monnin Add delta test limits. Redrawn. D Add radiation hardness requirements. Update boilerplate. -rrp 98-06-19 R. Monnin E Change to the slew rate test condition AVCL in table I. -rrp 00-10-04 R. Monnin Add case outline D. Remove radiation exposure circuit. Changes made to F 1.2.4, 1.3, 3.2.3, figure 1, and table IIA. Update boilerplate to reflect current 03-03-19 R. Monnin requirements. -rrp Update drawing to current requirements. Deleted unused group E boilerplate G 11-04-06 C. Saffle paragraphs. –rrp Add device types 03 and 04 tested at low dose rate. Make changes to 1.2.2, H 11-11-16 C. Saffle 1.5, Table I, figure 1, Table IIB, 4.4.4.1. - ro J Update document paragraphs to current MIL-PRF-385345 requirements. - ro 17-11-06 C. SAFFLE THE ORIGINAL FIRST SHEET OF THIS DRAWING HAS BEEN REPLACED. REV SHEET REV SHEET REV STATUS REV J J J J J J J J J J J OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 11 PMIC N/A PREPARED BY Gary Zahn
DLA LAND AND MARITIME COLUMBUS, OHIO 43218-3990 STANDARD
CHECKED BY
http://www.dla.mil/landandmaritime MICROCIRCUIT
Ray Monnin
DRAWING
APPROVED BY Michael A. Frye THIS DRAWING IS AVAILABLE MICROCIRCUIT, LINEAR, RADIATION FOR USE BY ALL HARDENED, LOW NOISE, QUAD OPERATIONAL DEPARTMENTS DRAWING APPROVAL DATE AND AGENCIES OF THE 88-08-18 AMPLIFIER, MONOLITHIC SILICON DEPARTMENT OF DEFENSE REVISION LEVEL SIZE CAGE CODE AMSC N/A
5962-88565
J A
67268
SHEET 1 OF 11 DSCC FORM 2233 APR 97 5962-E427-17 DISTRIBUTION STATEMENT A. Approved for public release. Distribution is unlimited
