STANDARD. 5962-88565. MICROCIRCUIT DRAWING

STANDARD 5962-88565 MICROCIRCUIT DRAWING

Línea de modelo para esta hoja de datos

Versión de texto del documento

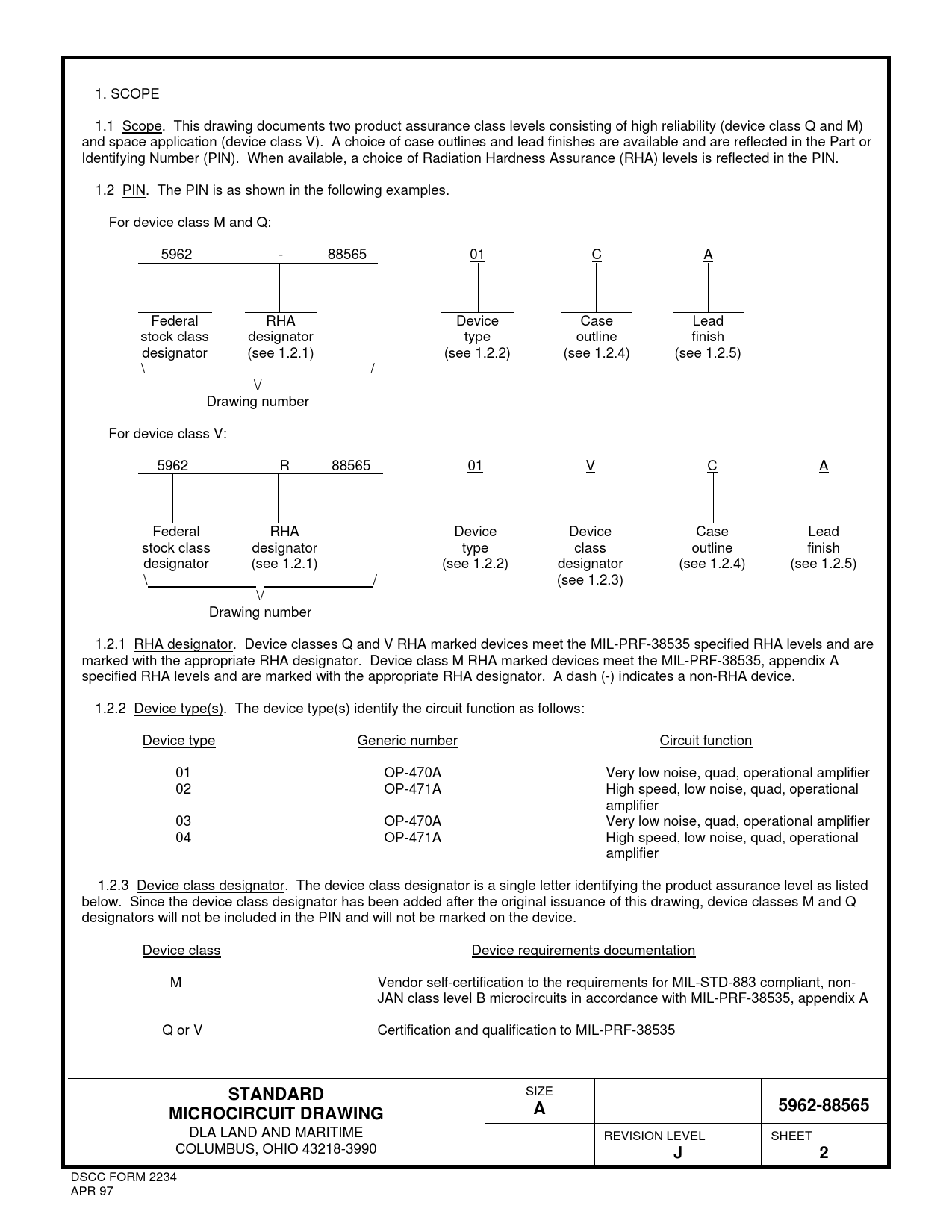

1. SCOPE 1.1 Scope. This drawing documents two product assurance class levels consisting of high reliability (device class Q and M) and space application (device class V). A choice of case outlines and lead finishes are available and are reflected in the Part or Identifying Number (PIN). When available, a choice of Radiation Hardness Assurance (RHA) levels is reflected in the PIN. 1.2 PIN. The PIN is as shown in the following examples. For device class M and Q: 5962 - 88565 01 C A Federal RHA Device Case Lead stock class designator type outline finish designator (see 1.2.1) (see 1.2.2) (see 1.2.4) (see 1.2.5) \ / \/ Drawing number For device class V: 5962 R 88565 01 V C A Federal RHA Device Device Case Lead stock class designator type class outline finish designator (see 1.2.1) (see 1.2.2) designator (see 1.2.4) (see 1.2.5) \ / (see 1.2.3) \/ Drawing number 1.2.1 RHA designator. Device classes Q and V RHA marked devices meet the MIL-PRF-38535 specified RHA levels and are marked with the appropriate RHA designator. Device class M RHA marked devices meet the MIL-PRF-38535, appendix A specified RHA levels and are marked with the appropriate RHA designator. A dash (-) indicates a non-RHA device. 1.2.2 Device type(s). The device type(s) identify the circuit function as follows: Device type Generic number Circuit function 01 OP-470A Very low noise, quad, operational amplifier 02 OP-471A High speed, low noise, quad, operational amplifier 03 OP-470A Very low noise, quad, operational amplifier 04 OP-471A High speed, low noise, quad, operational amplifier 1.2.3 Device class designator. The device class designator is a single letter identifying the product assurance level as listed below. Since the device class designator has been added after the original issuance of this drawing, device classes M and Q designators will not be included in the PIN and will not be marked on the device. Device class Device requirements documentation M Vendor self-certification to the requirements for MIL-STD-883 compliant, non- JAN class level B microcircuits in accordance with MIL-PRF-38535, appendix A Q or V Certification and qualification to MIL-PRF-38535
STANDARD
SIZE
5962-88565 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990
J 2
DSCC FORM 2234 APR 97
