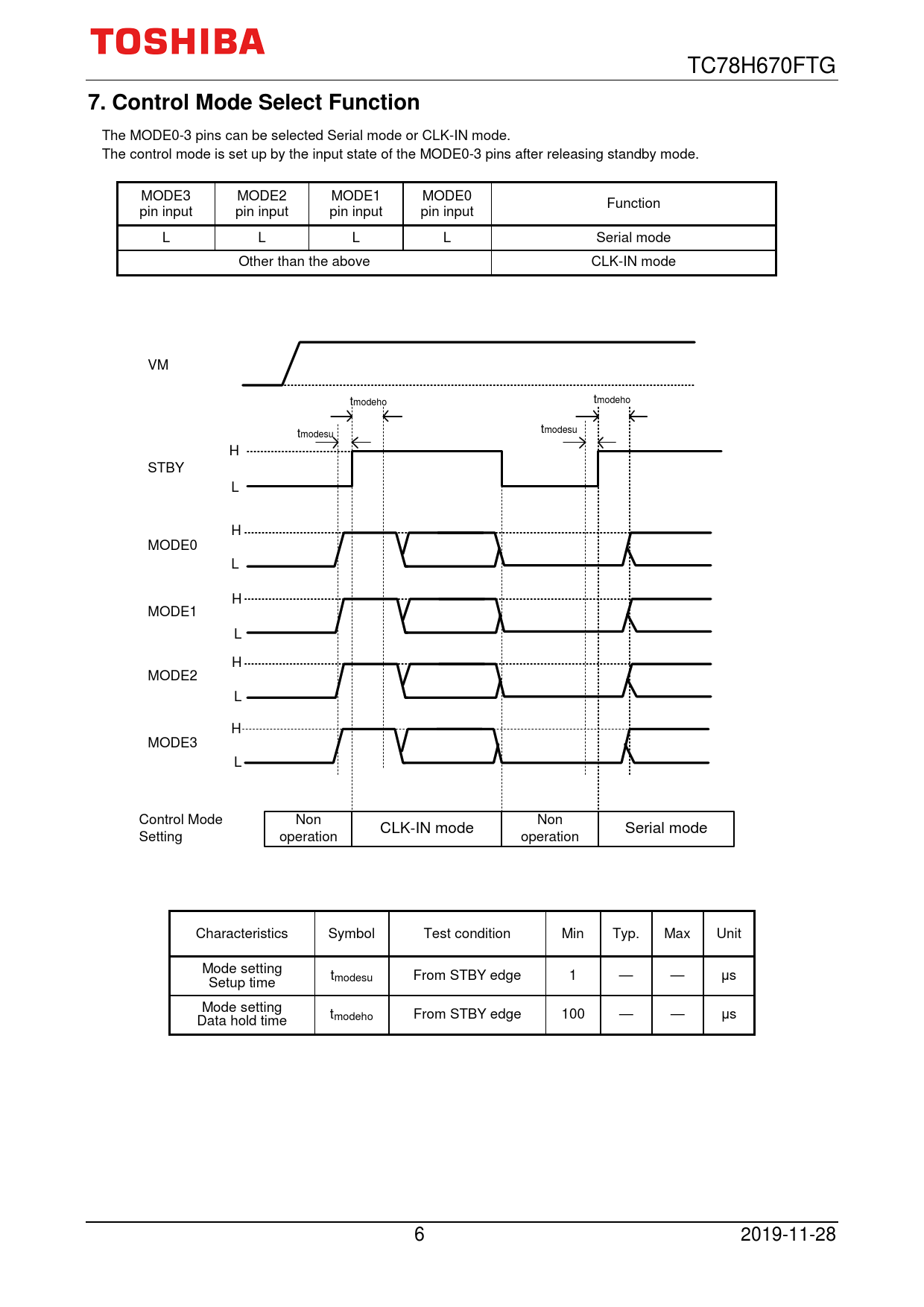

7. Control Mode Select Function
The MODE0-3 pins can be selected Serial mode or CLK-IN mode. The control mode is set up by the input state of the MODE0-3 pins after releasing standby mode. MODE3 MODE2 MODE1 MODE0 Function pin input pin input pin input pin input L L L L Serial mode Other than the above CLK-IN mode VM tmodeho tmodeho t modesu tmodesu H STBY L H MODE0 L H MODE1 L H MODE2 L H MODE3 L Control Mode Non Non CLK-IN mode Serial mode Setting operation operation Characteristics Symbol Test condition Min Typ. Max Unit Mode setting t Setup time modesu From STBY edge 1 — — μs Mode setting t Data hold time modeho From STBY edge 100 — — μs 6 2019-11-28
