ADF4602. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

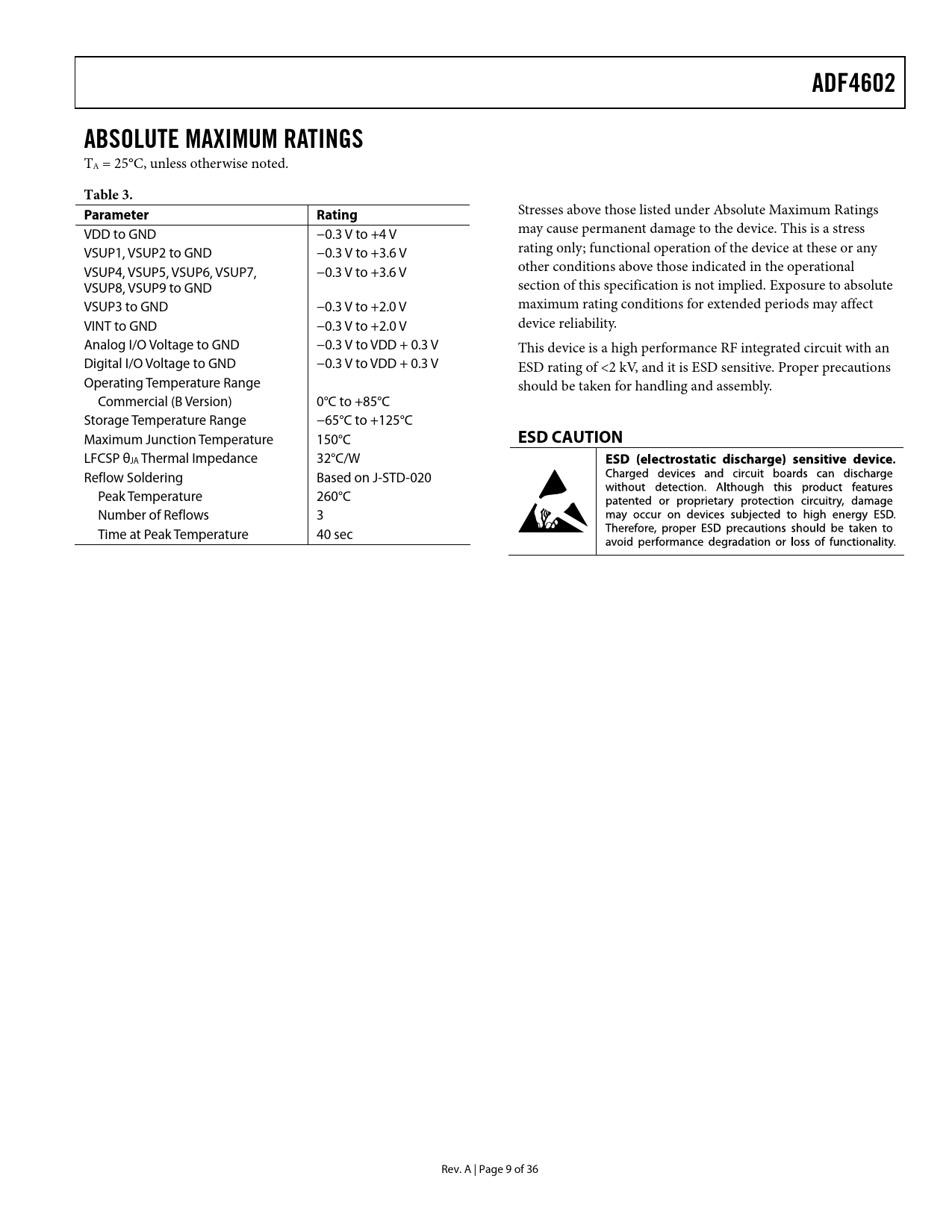

ADF4602 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 3. Parameter Rating
Stresses above those listed under Absolute Maximum Ratings VDD to GND −0.3 V to +4 V may cause permanent damage to the device. This is a stress VSUP1, VSUP2 to GND −0.3 V to +3.6 V rating only; functional operation of the device at these or any VSUP4, VSUP5, VSUP6, VSUP7, −0.3 V to +3.6 V other conditions above those indicated in the operational VSUP8, VSUP9 to GND section of this specification is not implied. Exposure to absolute VSUP3 to GND −0.3 V to +2.0 V maximum rating conditions for extended periods may affect VINT to GND −0.3 V to +2.0 V device reliability. Analog I/O Voltage to GND −0.3 V to VDD + 0.3 V This device is a high performance RF integrated circuit with an Digital I/O Voltage to GND −0.3 V to VDD + 0.3 V ESD rating of <2 kV, and it is ESD sensitive. Proper precautions Operating Temperature Range should be taken for handling and assembly. Commercial (B Version) 0°C to +85°C Storage Temperature Range −65°C to +125°C Maximum Junction Temperature 150°C
ESD CAUTION
LFCSP θJA Thermal Impedance 32°C/W Reflow Soldering Based on J-STD-020 Peak Temperature 260°C Number of Reflows 3 Time at Peak Temperature 40 sec Rev. A | Page 9 of 36 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION TRANSMITTER DESCRIPTION I/Q Baseband I/Q Modulator VCO Output TX Output Baluns DACS GENERAL PURPOSE OUTPUTS RECEIVER DESCRIPTION LNAs Mixers Baseband Section Gain Control DC Offset Compensation POWER MANAGEMENT FREQUENCY SYNTHESIS Reference Path SERIAL PORT INTERFACE (SPI) Format OPERATION AND TIMING Read REGISTERS REGISTER MAP REGISTER DESCRIPTION SOFTWARE INITIALIZATION PROCEDURE INITIALIZATION SEQUENCE Nonvolatile Memory (NVM) Initialization Programming Transmit and Receive frequencies APPLICATIONS INFORMATION INTERFACING THE ADF4602 TO THE AD9963 AD9963 ADC Inputs Interfacing to the AD9963 Rx Baseband Inputs AD9963 DAC Outputs Reference Voltage Current Scaling Resistor, RSET Gain Scaling Parameters RECEIVE SENSITIVITY Interfacing to the AD9963 TX Baseband Outputs OUTLINE DIMENSIONS ORDERING GUIDE
