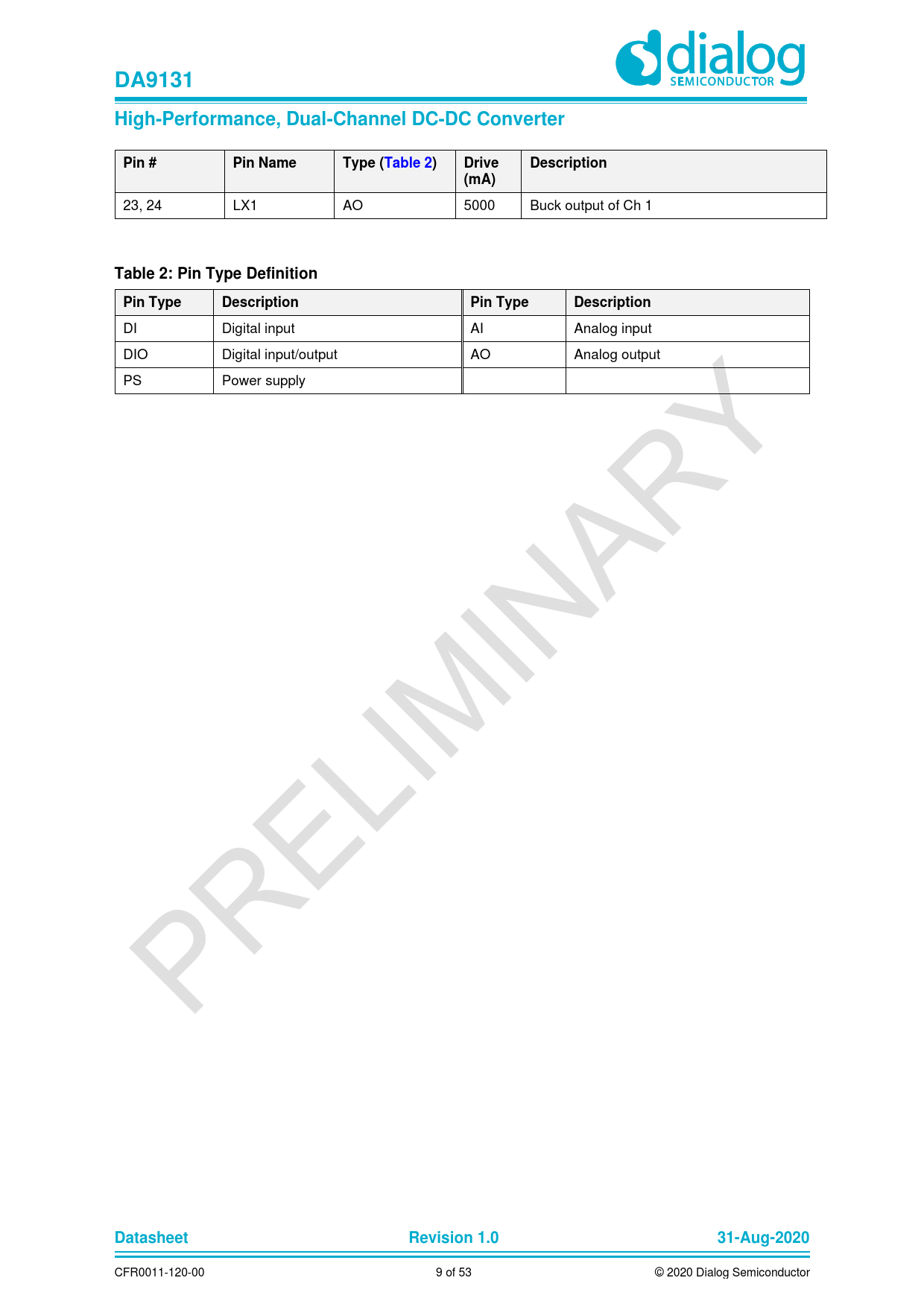

DA9131 High-Performance, Dual-Channel DC-DC Converter Pin # Pin Name Type (Table 2) Drive Description (mA)
23, 24 LX1 AO 5000 Buck output of Ch 1
Table 2: Pin Type Definition Pin Type Description Pin Type Description
DI Digital input AI Analog input DIO Digital input/output AO Analog output PS Power supply
Datasheet Revision 1.0 31-Aug-2020
CFR0011-120-00 9 of 53 © 2020 Dialog Semiconductor
