Datasheet T835H-8G (STMicroelectronics) - 8
| Fabricante | STMicroelectronics |
| Descripción | 8 A - 800 V - 150°C 8H-Triac in D2PAK |
| Páginas / Página | 12 / 8 — T835H-8G. D²PAK package information. Table 5. D²PAK package mechanical … |
| Formato / tamaño de archivo | PDF / 263 Kb |
| Idioma del documento | Inglés |
T835H-8G. D²PAK package information. Table 5. D²PAK package mechanical data. Dimensions. Ref. Millimeters. Inches(1). Min. Typ. Max
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8

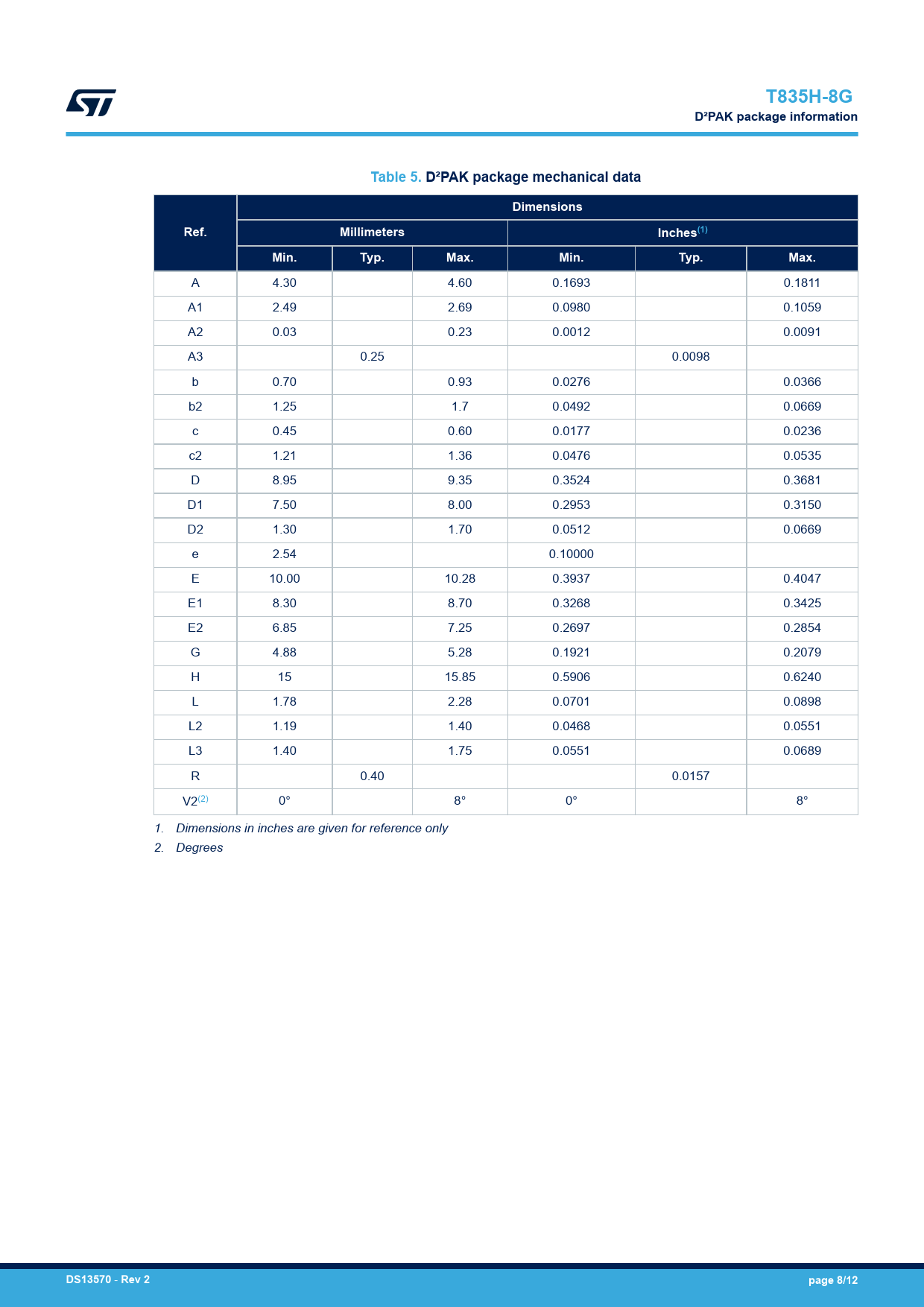

T835H-8G D²PAK package information Table 5. D²PAK package mechanical data Dimensions Ref. Millimeters Inches(1) Min. Typ. Max. Min. Typ. Max.
A 4.30 4.60 0.1693 0.1811 A1 2.49 2.69 0.0980 0.1059 A2 0.03 0.23 0.0012 0.0091 A3 0.25 0.0098 b 0.70 0.93 0.0276 0.0366 b2 1.25 1.7 0.0492 0.0669 c 0.45 0.60 0.0177 0.0236 c2 1.21 1.36 0.0476 0.0535 D 8.95 9.35 0.3524 0.3681 D1 7.50 8.00 0.2953 0.3150 D2 1.30 1.70 0.0512 0.0669 e 2.54 0.10000 E 10.00 10.28 0.3937 0.4047 E1 8.30 8.70 0.3268 0.3425 E2 6.85 7.25 0.2697 0.2854 G 4.88 5.28 0.1921 0.2079 H 15 15.85 0.5906 0.6240 L 1.78 2.28 0.0701 0.0898 L2 1.19 1.40 0.0468 0.0551 L3 1.40 1.75 0.0551 0.0689 R 0.40 0.0157 V2(2) 0° 8° 0° 8° 1. Dimensions in inches are given for reference only 2. Degrees
DS13570
-
Rev 2 page 8/12
