Datasheet T835H-8G (STMicroelectronics) - 9
| Fabricante | STMicroelectronics |
| Descripción | 8 A - 800 V - 150°C 8H-Triac in D2PAK |
| Páginas / Página | 12 / 9 — T835H-8G. D²PAK package information. Figure 16. D²PAK recommended … |
| Formato / tamaño de archivo | PDF / 263 Kb |
| Idioma del documento | Inglés |

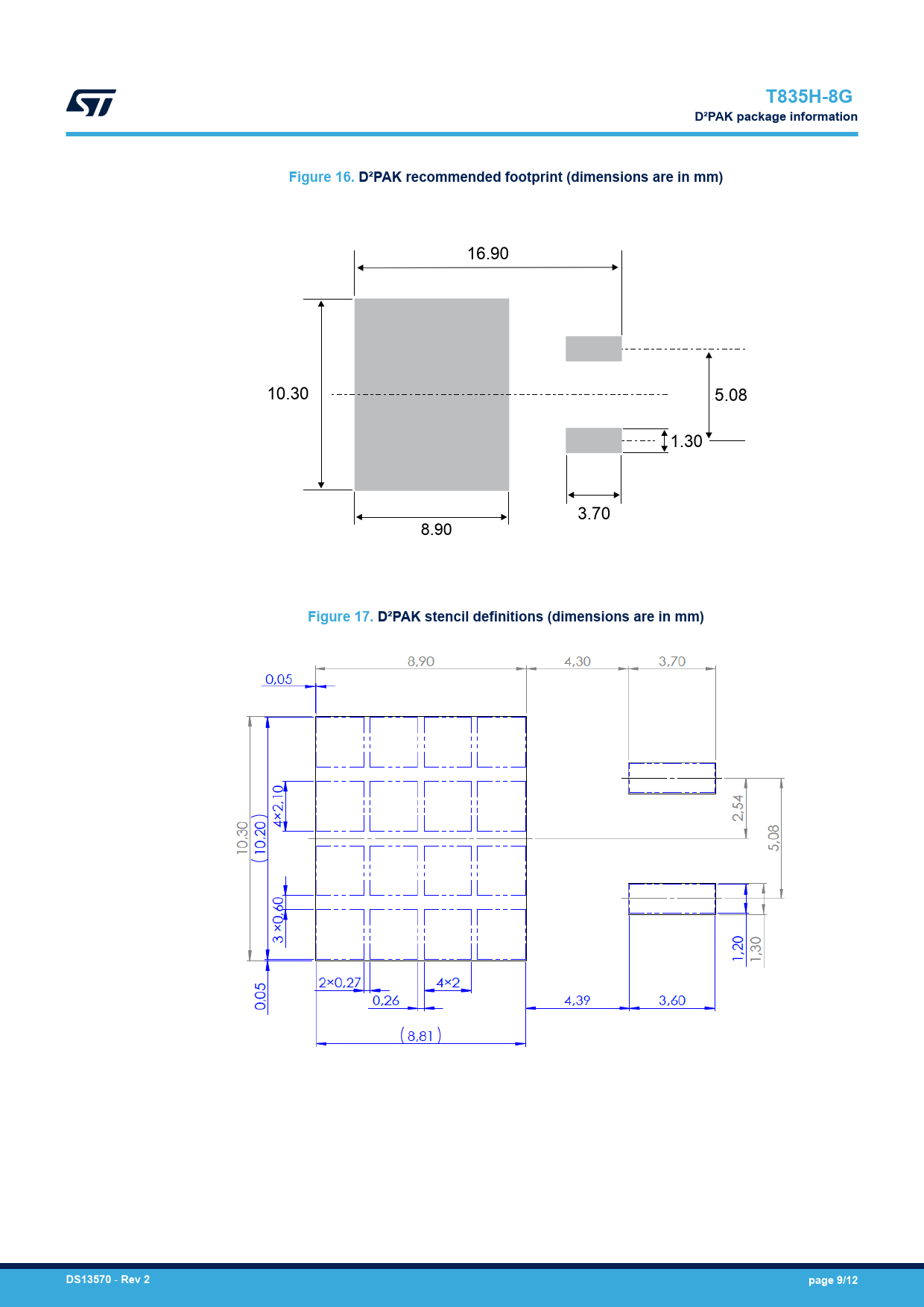

T835H-8G. D²PAK package information. Figure 16. D²PAK recommended footprint (dimensions are in mm)
Línea de modelo para esta hoja de datos
Versión de texto del documento
T835H-8G D²PAK package information Figure 16. D²PAK recommended footprint (dimensions are in mm)
16.90 10.30 5.08 1.30 3.70 8.90
Figure 17. D²PAK stencil definitions (dimensions are in mm) DS13570
-
Rev 2 page 9/12
