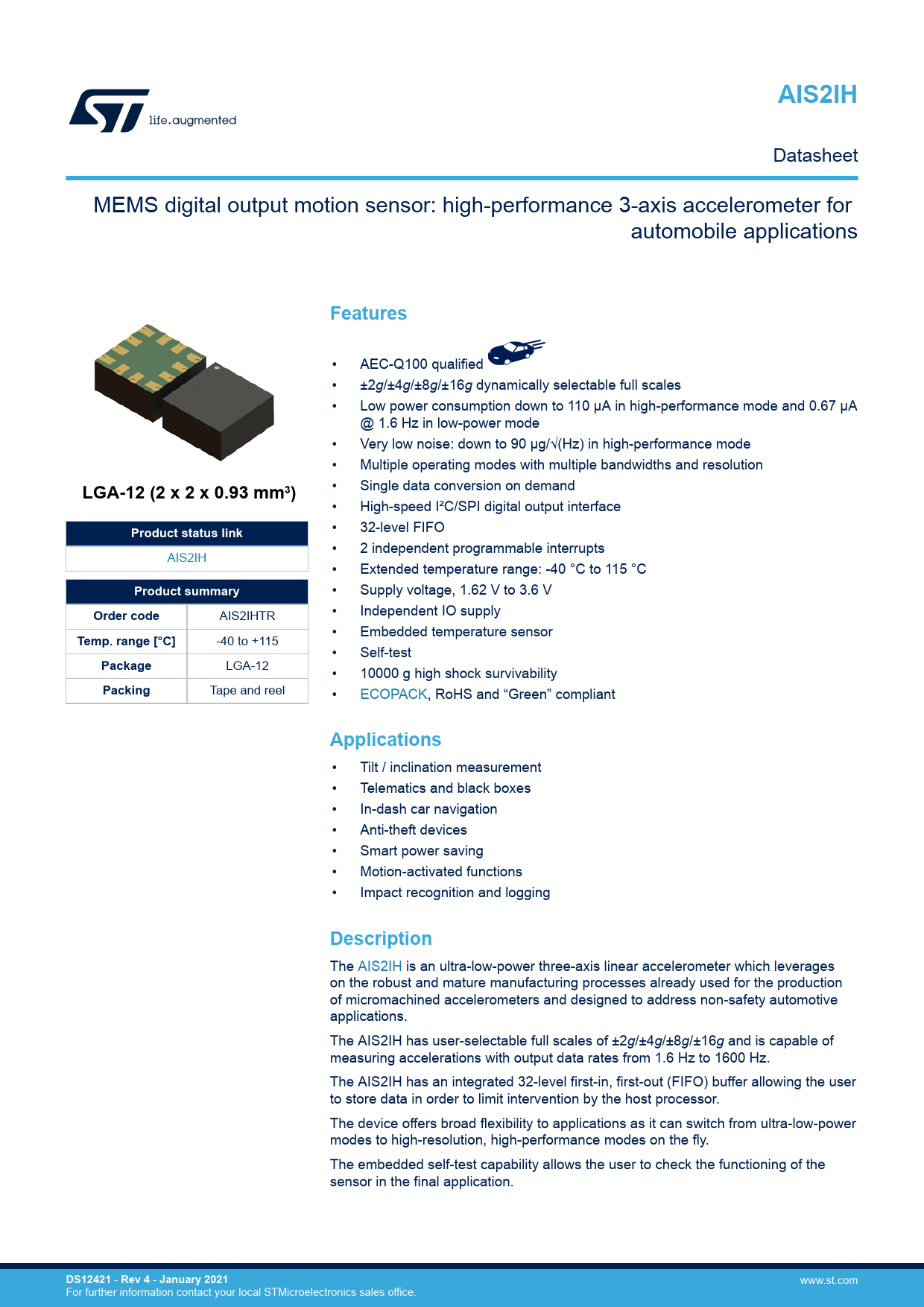

AIS2IH
Datasheet MEMS digital output motion sensor: high-performance 3-axis accelerometer for automobile applications
Features
• AEC-Q100 qualified • ±2g/±4g/±8g/±16g dynamically selectable full scales • Low power consumption down to 110 µA in high-performance mode and 0.67 µA @ 1.6 Hz in low-power mode • Very low noise: down to 90 µg/√(Hz) in high-performance mode • Multiple operating modes with multiple bandwidths and resolution
LGA-12 (2 x 2 x 0.93 mm3)
• Single data conversion on demand • High-speed I²C/SPI digital output interface
Product status link
• 32-level FIFO • 2 independent programmable interrupts AIS2IH • Extended temperature range: -40 °C to 115 °C
Product summary
• Supply voltage, 1.62 V to 3.6 V
Order code
AIS2IHTR • Independent IO supply • Embedded temperature sensor
Temp. range [°C]
-40 to +115 • Self-test
Package
LGA-12 • 10000 g high shock survivability
Packing
Tape and reel • ECOPACK, RoHS and “Green” compliant
Applications
• Tilt / inclination measurement • Telematics and black boxes • In-dash car navigation • Anti-theft devices • Smart power saving • Motion-activated functions • Impact recognition and logging
Description
The AIS2IH is an ultra-low-power three-axis linear accelerometer which leverages on the robust and mature manufacturing processes already used for the production of micromachined accelerometers and designed to address non-safety automotive applications. The AIS2IH has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz. The AIS2IH has an integrated 32-level first-in, first-out (FIFO) buffer allowing the user to store data in order to limit intervention by the host processor. The device offers broad flexibility to applications as it can switch from ultra-low-power modes to high-resolution, high-performance modes on the fly. The embedded self-test capability allows the user to check the functioning of the sensor in the final application.
DS12421
-
Rev 4
-
January 2021
