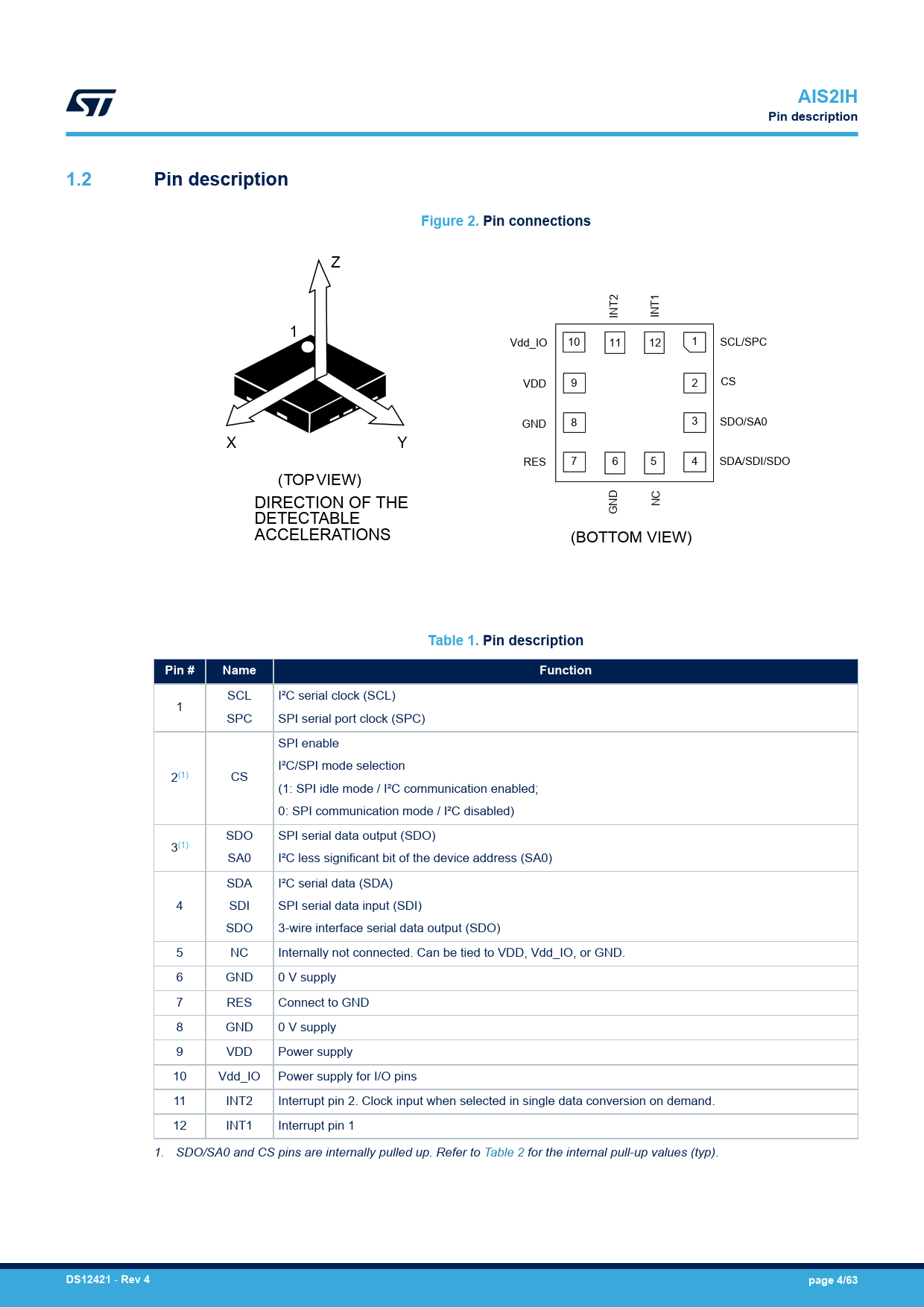

AIS2IH Pin description 1.2 Pin description Figure 2. Pin connections
Z INT2 INT1 1 Vdd_IO 10 11 12 1 SCL/SPC VDD 9 2 CS GND 8 3 SDO/SA0 X Y RES 7 6 5 4 SDA/SDI/SDO (TOPVIEW) DIRECTION OF THE NC DETECTABLE GND ACCELERATIONS (BOTTOM VIEW)
Table 1. Pin description Pin # Name Function
SCL I²C serial clock (SCL) 1 SPC SPI serial port clock (SPC) SPI enable I²C/SPI mode selection 2(1) CS (1: SPI idle mode / I²C communication enabled; 0: SPI communication mode / I²C disabled) SDO SPI serial data output (SDO) 3(1) SA0 I²C less significant bit of the device address (SA0) SDA I²C serial data (SDA) 4 SDI SPI serial data input (SDI) SDO 3-wire interface serial data output (SDO) 5 NC Internally not connected. Can be tied to VDD, Vdd_IO, or GND. 6 GND 0 V supply 7 RES Connect to GND 8 GND 0 V supply 9 VDD Power supply 10 Vdd_IO Power supply for I/O pins 11 INT2 Interrupt pin 2. Clock input when selected in single data conversion on demand. 12 INT1 Interrupt pin 1 1. SDO/SA0 and CS pins are internally pulled up. Refer to Table 2 for the internal pull-up values (typ).
