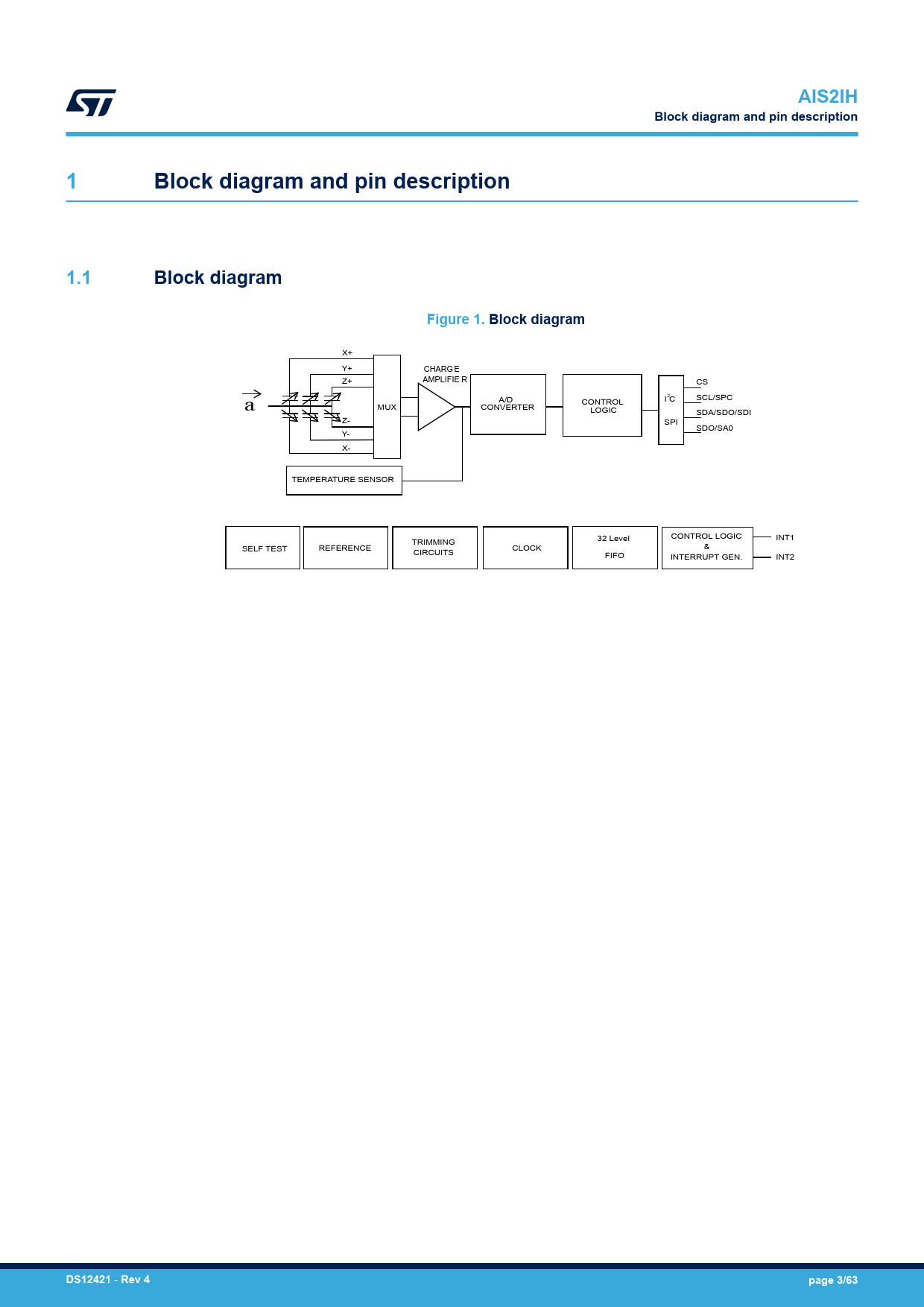

AIS2IH. Block diagram and pin description. 1.1. Block diagram. Figure 1. Block diagram. DS12421. Rev 4. page 3/63
Línea de modelo para esta hoja de datos
Versión de texto del documento
AIS2IH Block diagram and pin description 1 Block diagram and pin description 1.1 Block diagram Figure 1. Block diagram
X+ Y+ CHARG E Z+ AMPLIFIE R CS a A/D I C 2 SCL/SPC CONTROL MUX CONVERTER LOGIC SDA/SDO/SDI Z- SPI SDO/SA0 Y- X- TEMPERATURE SENSOR CONTROL LOGIC 32 Level INT1 TRIMMING & SELF TEST REFERENCE CLOCK CIRCUITS FIFO INTERRUPT GEN. INT2
DS12421
-
Rev 4 page 3/63
