Datasheet HUF75652G3 (ON Semiconductor) - 10
| Fabricante | ON Semiconductor |
| Descripción | MOSFET – Power, N-Channel, Ultrafet 100 V, 75 A, 8 mW |
| Páginas / Página | 12 / 10 — HUF75652G3. SPICE Thermal Model. JUNCTION. RTHERM1. CTHERM1. RTHERM2. … |
| Formato / tamaño de archivo | PDF / 553 Kb |
| Idioma del documento | Inglés |
HUF75652G3. SPICE Thermal Model. JUNCTION. RTHERM1. CTHERM1. RTHERM2. CTHERM2. RTHERM3. CTHERM3. SABER Thermal Model. RTHERM4. CTHERM4. RTHERM5
Línea de modelo para esta hoja de datos
Versión de texto del documento

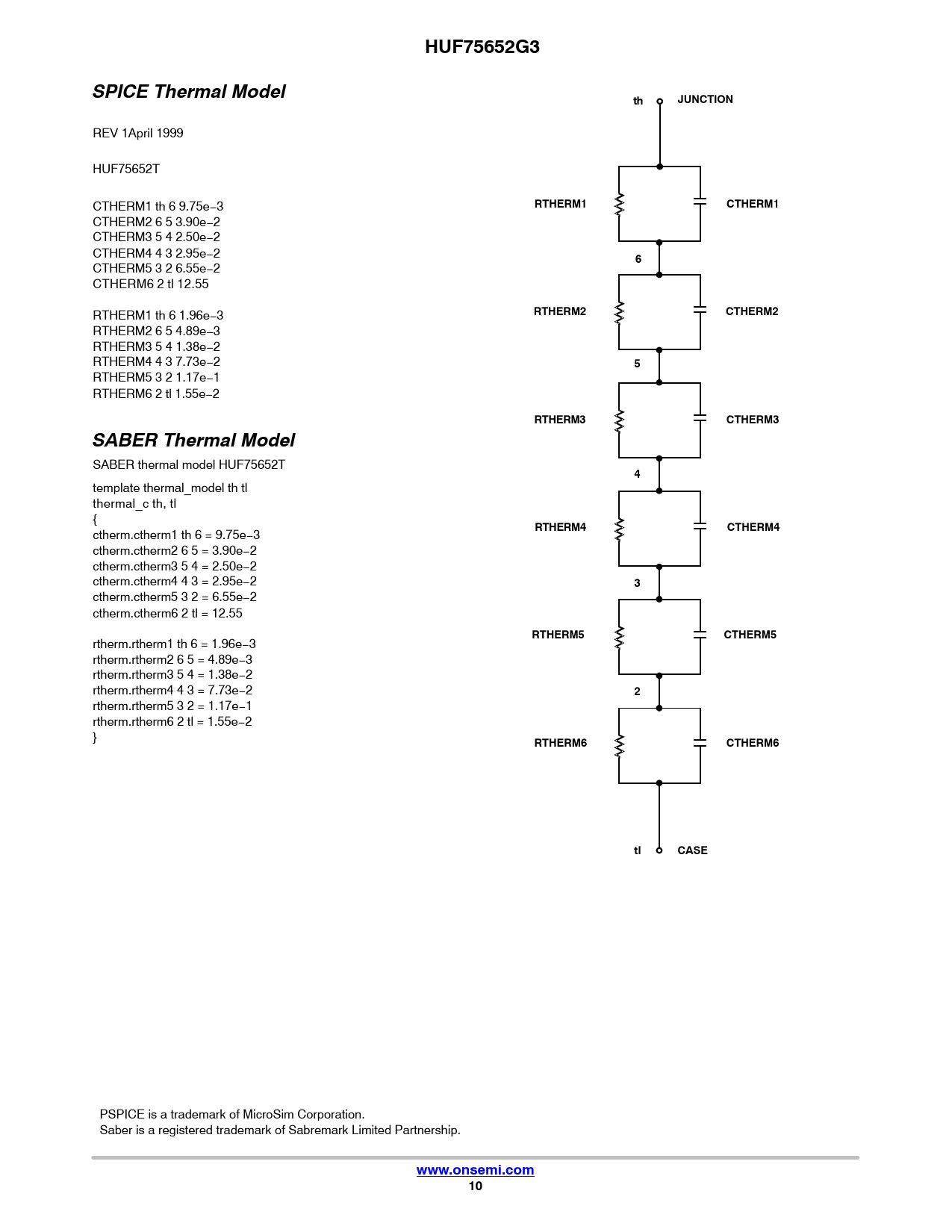

HUF75652G3 SPICE Thermal Model th JUNCTION
REV 1April 1999 HUF75652T CTHERM1 th 6 9.75e−3
RTHERM1 CTHERM1
CTHERM2 6 5 3.90e−2 CTHERM3 5 4 2.50e−2 CTHERM4 4 3 2.95e−2
6
CTHERM5 3 2 6.55e−2 CTHERM6 2 tl 12.55 RTHERM1 th 6 1.96e−3
RTHERM2 CTHERM2
RTHERM2 6 5 4.89e−3 RTHERM3 5 4 1.38e−2 RTHERM4 4 3 7.73e−2
5
RTHERM5 3 2 1.17e−1 RTHERM6 2 tl 1.55e−2
RTHERM3 CTHERM3 SABER Thermal Model
SABER thermal model HUF75652T
4
template thermal_model th tl thermal_c th, tl {
RTHERM4 CTHERM4
ctherm.ctherm1 th 6 = 9.75e−3 ctherm.ctherm2 6 5 = 3.90e−2 ctherm.ctherm3 5 4 = 2.50e−2 ctherm.ctherm4 4 3 = 2.95e−2
3
ctherm.ctherm5 3 2 = 6.55e−2 ctherm.ctherm6 2 tl = 12.55
RTHERM5 CTHERM5
rtherm.rtherm1 th 6 = 1.96e−3 rtherm.rtherm2 6 5 = 4.89e−3 rtherm.rtherm3 5 4 = 1.38e−2 rtherm.rtherm4 4 3 = 7.73e−2
2
rtherm.rtherm5 3 2 = 1.17e−1 rtherm.rtherm6 2 tl = 1.55e−2 }
RTHERM6 CTHERM6 tl CASE
PSPICE is a trademark of MicroSim Corporation. Saber is a registered trademark of Sabremark Limited Partnership.
www.onsemi.com 10
