Nexperia. 1N4728A to 1N4749A. Voltage regulator diodes. Ordering information. Table 3. Type number. Package. Name. Description. Version
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 2 link to page 4 link to page 4 link to page 4 link to page 4

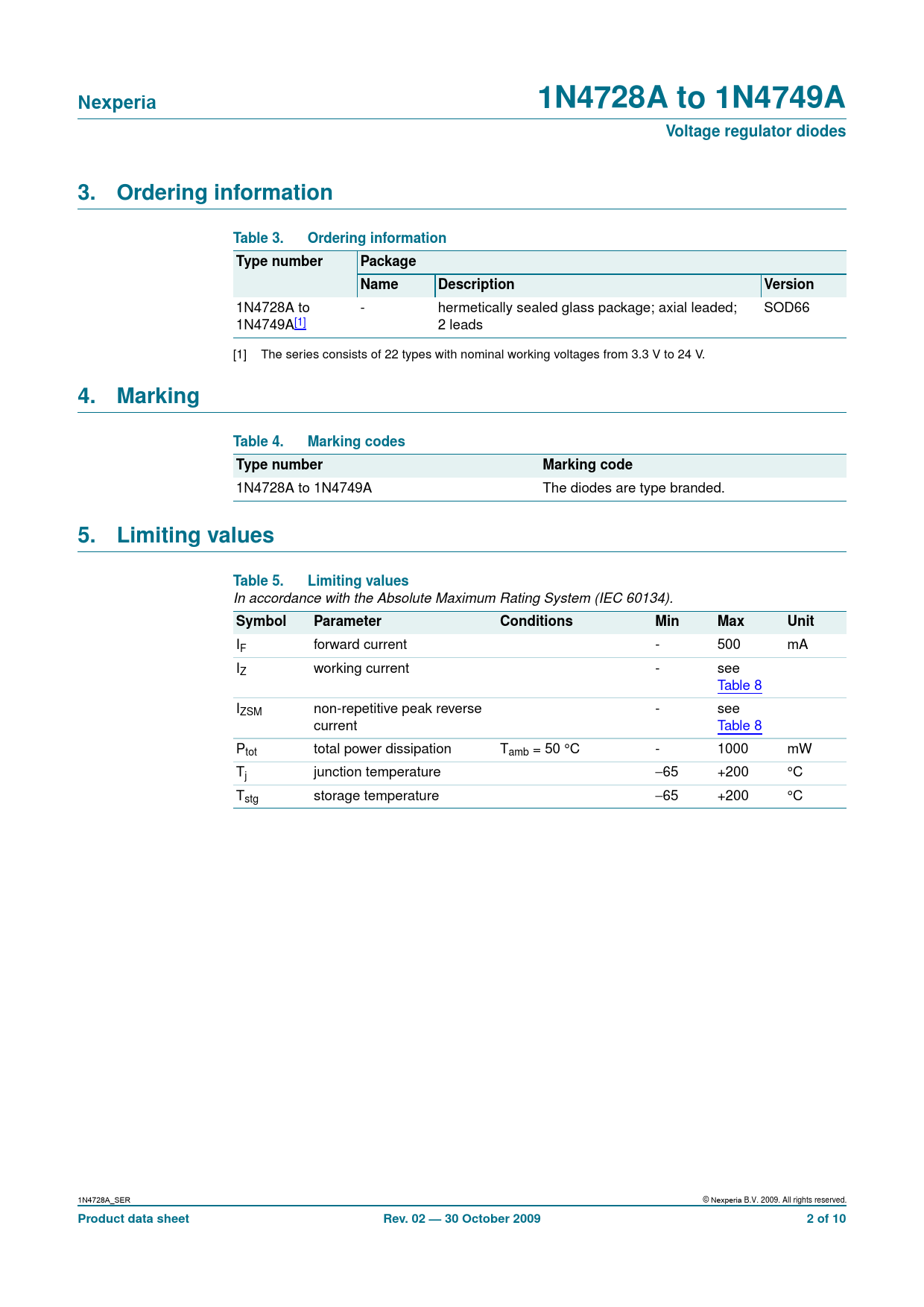

Nexperia 1N4728A to 1N4749A Voltage regulator diodes 3. Ordering information Table 3. Ordering information Type number Package Name Description Version
1N4728A to - hermetically sealed glass package; axial leaded; SOD66 1N4749A[1] 2 leads [1] The series consists of 22 types with nominal working voltages from 3.3 V to 24 V.
4. Marking Table 4. Marking codes Type number Marking code
1N4728A to 1N4749A The diodes are type branded.
5. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
IF forward current - 500 mA IZ working current - see Table 8 IZSM non-repetitive peak reverse - see current Table 8 Ptot total power dissipation Tamb = 50 °C - 1000 mW Tj junction temperature −65 +200 °C Tstg storage temperature −65 +200 °C 1N4728A_SER © Nexperia B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 30 October 2009 2 of 10
