Datasheet 1N4739A (Nexperia) - 3
| Fabricante | Nexperia |
| Descripción | Voltage regulator diodes in SOD66 (DO-41) packages |
| Páginas / Página | 10 / 3 — Nexperia. 1N4728A to 1N4749A. Voltage regulator diodes. Thermal … |
| Formato / tamaño de archivo | PDF / 218 Kb |
| Idioma del documento | Inglés |
Nexperia. 1N4728A to 1N4749A. Voltage regulator diodes. Thermal characteristics. Table 6. Symbol. Parameter. Conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento

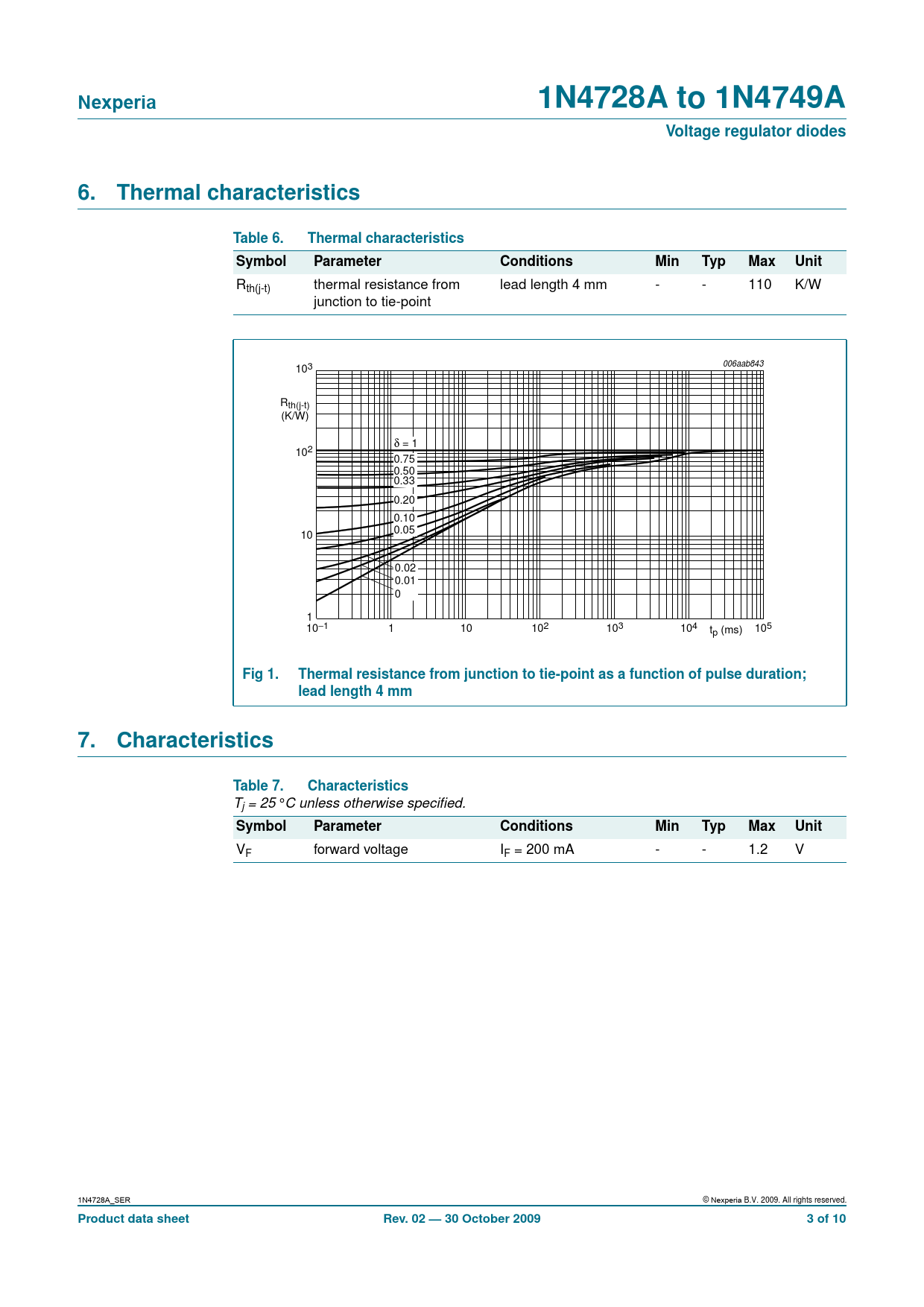

Nexperia 1N4728A to 1N4749A Voltage regulator diodes 6. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-t) thermal resistance from lead length 4 mm - - 110 K/W junction to tie-point 006aab843 103 Rth(j-t) (K/W) δ = 1 102 0.75 0.50 0.33 0.20 0.10 0.05 10 0.02 0.01 0 1 10−1 1 10 102 103 104 t 105 p (ms)
Fig 1. Thermal resistance from junction to tie-point as a function of pulse duration; lead length 4 mm 7. Characteristics Table 7. Characteristics
Tj = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
VF forward voltage IF = 200 mA - - 1.2 V 1N4728A_SER © Nexperia B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 30 October 2009 3 of 10
